1XXD38400MFA溫補晶振編碼對應的參數
來源：http://m.py519.com 作者：億金電子 2018年12月13
日本大真空株式會社主要研發生產銷售石英晶體,貼片晶振,石英晶體振蕩器,溫補晶振等產品.自成立以來一直為用戶提供高精度,低損耗,高性能產品.包括2016 晶振,2520晶振,3225晶振,5032晶振,6035晶振,7050晶振,8045晶振,各種參數規格一應俱全.億金電子代理KDS晶振,同時免費提供KDS晶振編碼以及晶振現貨樣品.

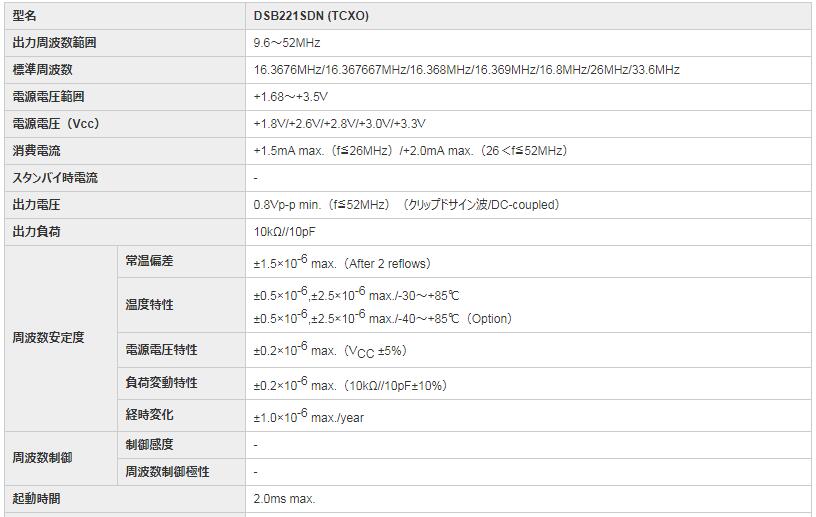

DSB221SDN溫補晶振參數
溫補晶振是具有溫度補償電路功能,最大限度減少因環境溫度變化引起的頻率波動的晶體振蕩器.TXCO有源晶振提供9.6M~52MHZ頻率范圍,可供電壓1.7V~3.5V.溫補貼片晶振超薄小的體積2.5x2.0mm,重量輕,適用于小型智能產品.以上表格中所舉例的是2520溫補晶振參數,更多型號可致電億金銷售部0755-27876565.
KDS溫補晶振編碼
以上KDS晶振編碼中所舉例的是3225,2520,5032尺寸的溫補晶振,部分頻點包括10MZHZ,52MHZ,40MHZ,26MHZ,19.2MHZ,38.4MHZ等.溫補晶振溫度補償功能適用于GPS導航,筆記本,無線通信等產品中.隨著智能產品發展,小型貼片晶振,有源晶振應用越來越多,為了更好的為用戶提供幫助,億金電子每天更新晶振技術,晶振資料,可登入官網查詢.
DSB221SDN溫補晶振參數
KDS溫補晶振編碼
| 晶振編碼 | 晶振型號 | 品牌 | 頻率 | 尺寸 |
| 1XTW10000CAB | DSB321SDA | KDS晶振 | 10.000MHZ | 3.2x2.5mm |
| 1XTW12288FAB | DSB321SCL | KDS晶振 | 12.288MHZ | 3.2x2.5mm |
| 1XXD16367JAA | DSB211SDM | KDS晶振 | 16.367667MHZ | 2.0x1.6mm |
| 1XXD16367MAA | DSB211SDN | KDS晶振 | 16.367667MHZ | 2.0x1.6mm |
| 1XXB16367CCA | DSB221SDA | KDS晶振 | 16.367667MHZ | 2.5x2.0mm |
| 1XXB16367MAA | DSB221SDN | KDS晶振 | 16.367667MHZ | 2.5x2.0mm |
| 1XTW16367ADA | DSB321SCA | KDS晶振 | 16.367667MHZ | 3.2x2.5mm |
| 1XTW16367CFB | DSB321SDA | KDS晶振 | 16.367667MHZ | 3.2x2.5mm |
| 1XTW16367MAA | DSB321SDN | KDS晶振 | 16.367667MHZ | 3.2x2.5mm |
| 1XXD16368JBA | DSB211SDM | KDS晶振 | 16.368MHZ | 2.0x1.6mm |
| 1XXB16368JFA | DSB221SDM | KDS晶振 | 16.368MHZ | 2.5x2.0mm |
| 1XTW16368FEA | DSB321SCL | KDS晶振 | 16.368MHZ | 3.2x2.5mm |
| 1XTW16368MAA | DSB321SDN | KDS晶振 | 16.368MHZ | 3.2x2.5mm |
| 1XXD16369JDA | DSB211SDM | KDS晶振 | 16.369MHZ | 2.0x1.6mm |
| 1XXB16369CAA | DSB221SDA | KDS晶振 | 16.369MHZ | 2.5x2.0mm |
| 1XXB16369JFA | DSB221SDM | KDS晶振 | 16.369MHZ | 2.5x2.0mm |
| 1XTW16369MAA | DSB321SDN | KDS晶振 | 16.369MHZ | 3.2x2.5mm |
| 1XXB19200MDA | DSB221SDN | KDS晶振 | 19.200MHZ | 2.5x2.0mm |
| 1XTW19200JBA | DSB321SDM | KDS晶振 | 19.200MHZ | 3.2x2.5mm |
| 1XTW20000AAA | DSB321SCA | KDS晶振 | 20.000MHZ | 3.2x2.5mm |
| 1XTW20000CCA | DSB321SDA | KDS晶振 | 20.000MHZ | 3.2x2.5mm |
| 1XTW25000JAA | DSB321SDM | KDS晶振 | 25.000MHZ | 3.2x2.5mm |
| 1XTR25000VAA | DSB535SD | KDS晶振 | 25.000MHZ | 5.0x3.2mm |
| 1XXD26000CAL | DSB211SDA | KDS晶振 | 26.000MHZ | 2.0x1.6mm |
| 1XXD26000JMB | DSB211SDM | KDS晶振 | 26.000MHZ | 2.0x1.6mm |
| 1XXD26000MBC | DSB211SDN | KDS晶振 | 26.000MHZ | 2.0x1.6mm |
| 1XXD38400HCA | DSB211SCM | KDS晶振 | 38.400MHZ | 2.0x1.6mm |
| 1XXB38400JEA | DSB221SDM | KDS晶振 | 38.400MHZ | 2.5x2.0mm |
| 1XXD38400MFA | DSB221SDN | KDS晶振 | 38.400MHZ | 2.5x2.0mm |
| 1XXB40000CCA | DSB221SDA | KDS晶振 | 40.000MHZ | 2.5x2.0mm |
| 1XTW40000FBA | DSB321SCL | KDS晶振 | 40.000MHZ | 3.2x2.5mm |
| 1XXB52000HAA | DSB221SCM | KDS晶振 | 52.000MHZ | 3.2x2.5mm |
| 1XTW52000FAA | DSB321SCL | KDS晶振 | 52.000MHZ | 3.2x2.5mm |
