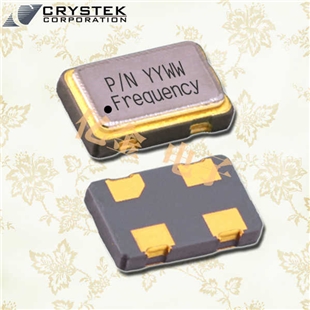

Crystek晶振,C32xx時鐘晶體振蕩器,C3292-26.000MHz有源晶體，小型SMD有源晶振,從最初超大體積到現在的7050mm,6035mm,5032mm,3225mm,2520mm體積,有著翻天覆地的改變,體積的變小也使產品帶來了更高的穩定性能,接縫密封石英晶體振蕩器,精度高,覆蓋頻率范圍寬的特點,SMD高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍:1.8V~5V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本W(wǎng)LAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.

Frequency Range:                      1.544 MHz to 100.000 MHz

Frequency Stability Options:          ±20*, ±25, ±50, ±100 (ppm)

Temperature Range: (standard)    0°C to +70°C                       (Option “M”)       -20°C to +70°C                       (Option “E”*)       -40°C to +85°C

Storage Temperature:     -45°C to 90°C

Input Voltage:                5.0V ±0.5V

Input Current:                60mA Max

Standby Current:            10uA Max

Output:                        HCMOS

Symmetry:      (Standard “2”)         40/60% Max @ 50% Vdd         (Option “9”)         45/55% Max @ 50% Vdd      Rise/Fall Time:         6ns Max @ 20% to 80% Vdd                 Logic:         "0" = 10% Vdd Max                                 "1" = 90% Vdd Min       Disable Time:         200ns Max     Start-up Time:          10ms Max                 Load:          30pF Max

Jitter RMS: 12kHz~20MHz   0.5ps Typical, 1ps Max

Sub-harmonics:              None

Aging:                            <3ppm 1st year, 1ppm every year thereafter
