首頁晶振行業動態 無線局域網應用晶振CX532Z-A5B3C5-70-20.0D18
無線局域網應用晶振CX532Z-A5B3C5-70-20.0D18
來源：http://m.py519.com 作者：億金電子 2023年06月03
美國進口晶振，Cardinal卡迪納爾晶振CX532，是一款小體積晶振尺寸5.0x3.2mm表面貼裝晶體，整體封裝尺寸小，CX532晶振兩腳貼片晶振 和CX532A晶振四腳貼片晶振可供選擇，無源晶振，石英晶振，貼片晶振，石英晶體諧振器，頻率范圍：8MHz-80MHz，頻率穩定度：±30ppm，工作溫度范圍：-40℃至+85℃，無鉛環保晶振，該石英晶體諧振器具有超小型，輕薄型，耐熱及耐環境特點，被廣泛用于通訊設備，無線局域網，藍牙模塊晶振，汽車電子，醫療設備，數碼電子，平板電腦，物聯網應用等。無線局域網應用晶振CX532Z-A5B3C5-70-20.0D18
無線局域網應用晶振CX532Z-A5B3C5-70-20.0D18，5032mm體積的貼片晶振,可以說是目前小型數碼產品的福音,目前超小型的智能手機里面所應用的就是小型的石英晶振,該產品最適用于無線通訊系統,無線局域網,已實現低相位噪聲,低電壓,低消費電流和高穩定度,超小型,質量輕等產品特點,產品本身編帶包裝方式,可對應自動高速貼片機應用,以及高溫回流焊接，產品無鉛對應，為無鉛產品.

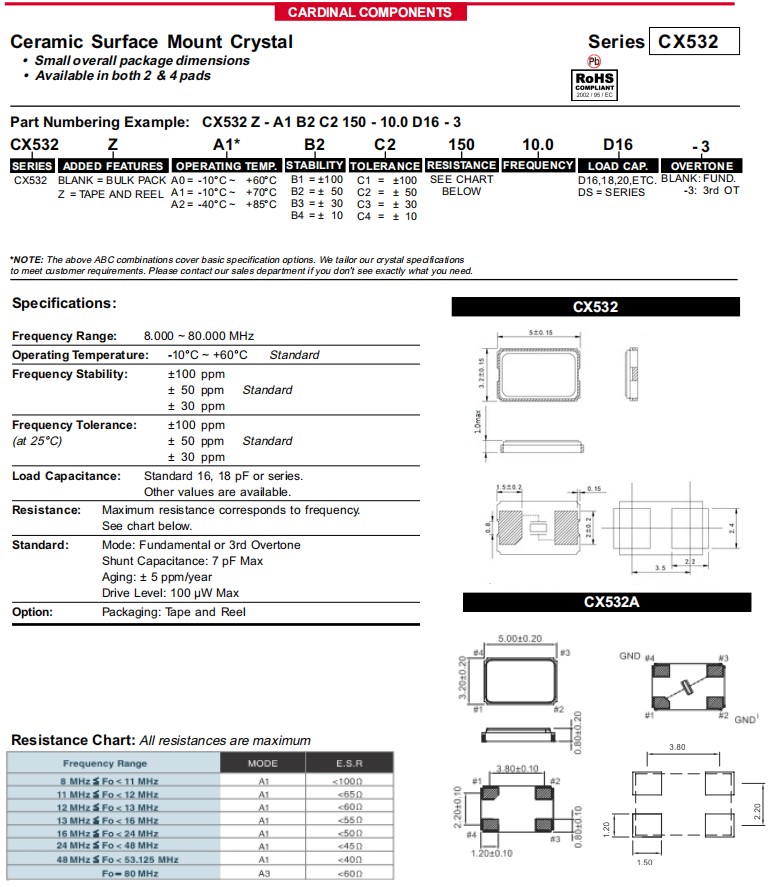

.JPG)
| 原廠編碼 | 進口晶振 | 型號 | 頻率 | 頻率穩定度 | Description 參數 |
| CX532Z-A2B3C5-70-12.288D18 | Cardinal晶振 | CX532 | 12.288MHz | ±30ppm | CRYSTAL 12.2880MHZ 18PF SMD |
| CX532Z-A2B3C5-70-16.0D18 | Cardinal晶振 | CX532 | 16MHz | ±30ppm | CRYSTAL 16.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-12.0D18 | Cardinal晶振 | CX532 | 12MHz | ±30ppm | CRYSTAL 12.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-1966080D18 | Cardinal晶振 | CX532 | 19.6608MHz | ±30ppm | CRYSTAL 19.6608MHZ 18PF SMD |
| CX532Z-A2B3C5-70-33.0D18 | Cardinal晶振 | CX532 | 33MHz | ±30ppm | CRYSTAL 33.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-27.0D18 | Cardinal晶振 | CX532 | 27MHz | ±30ppm | CRYSTAL 27.0000MHZ 18PF SMD |
| CX532Z-A5B3C5-70-20.0D18 | Cardinal晶振 | CX532 | 20MHz | ±30ppm | CRYSTAL 20.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-14.7456D18 | Cardinal晶振 | CX532 | 14.7456MHz | ±30ppm | CRYSTAL 17.7456MHZ 18PF SMD |
| CX532Z-A5B3C5-70-12.0D18 | Cardinal晶振 | CX532 | 12MHz | ±30ppm | CRYSTAL 12.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-50.0D18 | Cardinal晶振 | CX532 | 50MHz | ±30ppm | CRYSTAL 50.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-30.0D18 | 諧振器 | CX532 | 30MHz | ±30ppm | CRYSTAL 30.0000MHZ 18PF SMD |
| CX532Z-A5B3C5-70-27.0D18 | Cardinal晶振 | CX532 | 27MHz | ±30ppm | CRYSTAL 27.0000MHZ 18PF SMD |
| CX532AZ-A5B2C5-70-25.0D18 | Cardinal晶振 | CX532 | 25MHz | ±50ppm | CRYSTAL 25.0000MHZ 18PF SMD |
| CX532Z-A5B3C5-70-25.0D18 | Cardinal晶振 | CX532 | 25MHz | ±30ppm | CRYSTAL 25.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-20.0D18 | Cardinal晶振 | CX532 | 20MHz | ±30ppm | CRYSTAL 20.0000MHZ 18PF SMD |
| CX532Z-A2B3C5-70-8.0D18 | Cardinal晶振 | CX532 | 8MHz | ±30ppm | CRYSTAL 8.0000MHZ 18PF SMD |
| CX532Z-A5B3C5-70-18.432D18 | Cardinal晶振 | CX532 | 18.432MHz | ±30ppm | CRYSTAL 18.4320MHZ 18PF SMD |
| CX532Z-A2B3C5-70-25.0D18 | Cardinal晶振 | CX532 | 25MHz | ±30ppm | CRYSTAL 25.0000MHZ 18PF SMD |
