首頁進口晶振TXETBLSANF-40.000000,Taitien泰藝晶振,GPS導航儀晶振

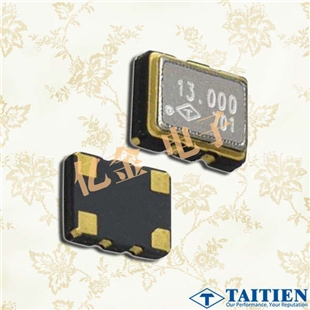

TXETBLSANF-40.000000,Taitien泰藝晶振,GPS導航儀晶振

頻率：40.0000M
尺寸：3225mm
應　用： TXETBLSANF-40.000000,Taitien泰藝晶振,GPS導航儀晶振,40MHz高頻輸出可匹配主流GPS導航芯片的時序需求,產品供電電壓兼容2.8V~3.3V主流導航設備電源架構,無需額外電壓轉換模塊,簡化電路設計.

TXETBLSANF-40.000000,Taitien泰藝晶振,GPS導航儀晶振

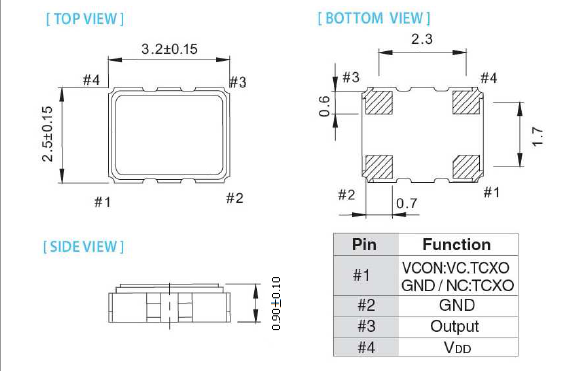

TXETBLSANF-40.000000是臺灣泰藝(Taitien)專為GPS導航儀打造的高精度有源晶振,憑借40MHz標準頻率與±1ppm的超高頻率穩定度,為導航系統提供精準時鐘基準.采用3225物聯網應用晶振封裝(3.2mm×2.5mm)設計,兼顧小型化與可靠性,適配車載,便攜等各類GPS導航設備的緊湊空間布局.輸出削峰正弦波信號,在2.8V~3.3V寬電壓范圍下工作電流僅2.5mA,低功耗特性可延長便攜導航設備續航,同時-40℃~85℃的工業級工作溫度范圍,能從容應對車載極端溫差環境,確保導航定位精度不受溫度波動影響.

TXETBLSANF-40.000000,Taitien泰藝晶振,GPS導航儀晶振

原廠型號 Originalmodel：	TXETBLSANF-40.000000	品牌brand：	Taitien
Manufacturer品牌	Taitien泰藝有源晶振	OperatingTemperature溫度	-40+85℃
Series型號	TX	Current-Supply(Max)	-
Type類型	TCXO	PackageHeight高度	1.65MM
Frequency頻率	40M	Termination 腳位	4-pad
輸出方式 Output：	削峰正弦波	PackageType 封裝類型	4-smd
Voltage-Supply電壓	2.8-3.3V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	1PPM	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	3225mm	最小包裝數MPQ：	3000

TXETBLSANF-40.000000,Taitien泰藝晶振,GPS導航儀晶振

NI-10M-3510	Taitien	NI-10M-3500	OCXO	10 MHz	CMOS	5V	±0.2ppb
NI-10M-3560	Taitien	NI-10M-3500	OCXO	10 MHz	CMOS	5V	±0.1ppb
OXETECJANF-40.000000	Taitien	OX	XO	40 MHz	CMOS	2.8V ~ 3.3V	±30ppm
OXETGCJANF-25.000000	Taitien	OX	XO	25 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGLJANF-24.576000	Taitien	OX	XO	24.576 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETHEJANF-12.000000	Taitien	OX	XO	12 MHz	CMOS	2.8V ~ 3.3V	±100ppm
OXETGCJANF-36.000000	Taitien	OX	XO	36 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGLJANF-40.000000	Taitien	OX	XO	40 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETGCJANF-16.000000	Taitien	OX	XO	16 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-24.576000	Taitien	OX	XO	24.576 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-27.000000	Taitien	OX	XO	27 MHz	CMOS	3.3V	±50ppm
OXETGLJANF-16.000000	Taitien	OX	XO	16 MHz	CMOS	3.3V	±50ppm
OXKTGLJANF-19.200000	Taitien	OX	XO	19.2 MHz	CMOS	1.8V	±50ppm
OXKTGLJANF-26.000000	Taitien	OX	XO	26 MHz	CMOS	1.8V	±50ppm
OXETGCJANF-50.000000	Taitien	OX	XO	50 MHz	CMOS	3.3V	±50ppm
OXETGCJANF-54.000000	Taitien	OX	XO	54 MHz	CMOS	3.3V	±50ppm
OXETGLJANF-27.000000	Taitien	OX	XO	27 MHz	CMOS	3.3V	±50ppm
OXKTGLKANF-26.000000	Taitien	OX	XO	26 MHz	CMOS	1.8V	±50ppm
OCETDCJTNF-66.000000MHZ	Taitien	OC	XO	66 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXETECJANF-27.000000	Taitien	OX	XO	27 MHz	CMOS	2.8V ~ 3.3V	±30ppm
OXETGJJANF-7.680000	Taitien	OX	XO	7.68 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OYETCCJANF-12.288000	Taitien	OY	XO	12.288 MHz	CMOS	2.8V ~ 3.3V	±20ppm
OXETGLJANF-38.880000	Taitien	OX	XO	38.88 MHz	CMOS	3.3V	±50ppm
OCETDCKANF-12.800000	Taitien	OC	XO	12.8 MHz	CMOS	3.3V	±25ppm
OCETECJANF-25.000000	Taitien	OC	XO	25 MHz	CMOS	3.3V	±30ppm
OCETCCJANF-12.000000	Taitien	OC	XO	12 MHz	CMOS	3.3V	±20ppm
OCETCCJANF-25.000000	Taitien	OC	XO	25 MHz	CMOS	3.3V	±20ppm
OCETDCKTNF-50.000000	Taitien	OC	XO	50 MHz	CMOS	3.3V	±25ppm
OCETDLJANF-2.048000	Taitien	OC	XO	2.048 MHz	CMOS	3.3V	±25ppm
OCETELJANF-8.000000	Taitien	OC	XO	8 MHz	CMOS	3.3V	±30ppm
OCETGCJANF-12.000000	Taitien	OC	XO	12 MHz	CMOS	3.3V	±50ppm
OCETGCJANF-24.576000	Taitien	OC	XO	24.576 MHz	CMOS	3.3V	±50ppm
OCETGCJANF-4.000000	Taitien	OC	XO	4 MHz	CMOS	3.3V	±50ppm
OCETGCJTNF-100.000000	Taitien	OC	XO	100 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-50.000000	Taitien	OC	XO	50 MHz	CMOS	3.3V	±50ppm
OCETGLKANF-20.000000	Taitien	OC	XO	20 MHz	CMOS	3.3V	±50ppm
OCETGLKANF-25.000000	Taitien	OC	XO	25 MHz	CMOS	3.3V	±50ppm
OCETHCJTNF-100.000000	Taitien	OC	XO	100 MHz	CMOS	1.8V	±100ppm
OCKTGLJANF-20.000000	Taitien	OC	XO	20 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-30.000000	Taitien	OC	XO	30 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-12.000000	Taitien	OC	XO	12 MHz	CMOS	1.8V	±50ppm
OCKTGLJANF-31.250000	Taitien	OC	XO	31.25 MHz	CMOS	1.8V	±50ppm
OCETDCJANF-12.000000	Taitien	OC	XO	12 MHz	CMOS	3.3V	±25ppm
OCETDCJTNF-50.000000	Taitien	OC	XO	50 MHz	CMOS	3.3V	±25ppm
OCETGCJANF-33.333000	Taitien	OC	XO	33.333 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-66.667000	Taitien	OC	XO	66.667 MHz	CMOS	3.3V	±50ppm
OCETGLJANF-27.000000	Taitien	OC	XO	27 MHz	CMOS	3.3V	±50ppm
OCETGLJANF-33.333000	Taitien	OC	XO	33.333 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-66.000000	Taitien	OC	XO	66 MHz	CMOS	3.3V	±50ppm
OCETGLJTNF-80.000000	Taitien	OC	XO	80 MHz	CMOS	3.3V	±50ppm
OCJTDCJANF-25.000000	Taitien	OC	XO	25 MHz	CMOS	2.5V	±25ppm
OCKTGLJANF-24.000000	Taitien	OC	XO	24 MHz	CMOS	1.8V	±50ppm
OXETGLJANF-12.000000	Taitien	OX	XO	12 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXETDLJANF-8.704000	Taitien	OX	XO	8.704 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXKTGCJANF-37.125000	Taitien	OX	XO	37.125 MHz	CMOS	1.8V	±50ppm
OXETCLJANF-26.000000	Taitien	OX	XO	26 MHz	CMOS	2.8V ~ 3.3V	±20ppm
OXETDLJANF-25.000000	Taitien	OX	XO	25 MHz	CMOS	2.8V ~ 3.3V	±25ppm
OXETGLJANF-48.000000	Taitien	OX	XO	48 MHz	CMOS	2.8V ~ 3.3V	±50ppm
OXJTDLJANF-25.000000	Taitien	OX	XO	25 MHz	CMOS	2.5V	±25ppm
OXJTGLJANF-25.000000	Taitien	OX	XO	25 MHz	CMOS	2.5V	±50ppm
