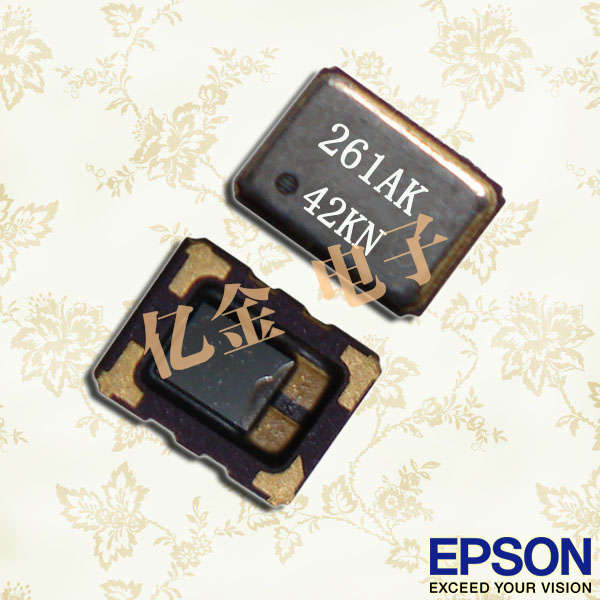

TG2520SMN25.000M-MCGNNM3,2520溫補晶振,EPSON石英晶振

頻率：25.000MHZ
尺寸：2520mm
應　用： TG2520SMN25.000M-MCGNNM3,2520溫補晶振,EPSON石英晶振,輸出頻率25.000MHz,小型化封裝適配智能穿戴設備的續航與空間需求,低噪聲特性則確保高精度測量儀器(如光譜儀,電子秤)的誤差控制.

TG2520SMN25.000M-MCGNNM3,2520溫補晶振,EPSON石英晶振

TG2520SMN25.000M-MCGNNM3是愛普生(EPSON)推出的一款高性能2520封裝溫補晶振(TCXO),憑借卓越的頻率穩定性成為精密電子設備的核心時鐘源.該產品輸出頻率精準鎖定25.000MHz,在-40℃至+85℃的寬溫工作范圍內,頻率溫度特性可達±0.5ppm的超高精度,有效抵御極端環境溫度波動帶來的頻率漂移.采用2.5×2.0×0.8mm小型SMD封裝,搭配4引腳設計,兼顧空間兼容性與焊接可靠性,適配10pF負載需求.為通信,導航等對時鐘精度嚴苛的場景提供穩定保障,彰顯愛普生在石英晶振領域的技術積淀.

TG2520SMN25.000M-MCGNNM3,2520溫補晶振,EPSON石英晶振

原廠型號 Originalmodel：	TG2520SMN 25.000M-MCGNNM3	品牌brand：	EPSON
Manufacturer品牌	EPSON	OperatingTemperature溫度	-40+85℃
Series型號	TG2520SMN	Current-Supply(Max)	-
Type類型	TCXO振蕩器	PackageHeight高度	0.8MM
Frequency頻率	25M	Termination 腳位	4-pad
輸出方式 Output：	CMOS	PackageType 封裝類型	4-smd
Voltage-Supply電壓	1.7-3.63V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	500ppb	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	2520mm	最小包裝數MPQ：	3000

TG2520SMN25.000M-MCGNNM3,2520溫補晶振,EPSON石英晶振

SG-8018CG 32.5140M-TJHSA0	EPSON	SG-8018	XO	32.514 MHz	CMOS
SG-8018CG 12.7000M-TJHPA0	EPSON	SG-8018	XO	12.7 MHz	CMOS
SG-8018CG 133.302860M-TJHPA0	EPSON	SG-8018	XO	133.30286 MHz	CMOS
SG-8018CG 26.296750M-TJHPA0	EPSON	SG-8018	XO	26.29675 MHz	CMOS
SG-8018CG 45.4545M-TJHPA0	EPSON	SG-8018	XO	45.4545 MHz	CMOS
SG-8018CG 31.3500M-TJHSA0	EPSON	SG-8018	XO	31.35 MHz	CMOS
SG-8018CG 12.2727M-TJHPA0	EPSON	SG-8018	XO	12.2727 MHz	CMOS
SG-8018CG 12.8800M-TJHSA0	EPSON	SG-8018	XO	12.88 MHz	CMOS
SG-8018CG 132.8130M-TJHPA0	EPSON	SG-8018	XO	132.813 MHz	CMOS
SG-8018CG 4.096250M-TJHSA0	EPSON	SG-8018	XO	4.09625 MHz	CMOS
SG-8018CG 97.2000M-TJHSA0	EPSON	SG-8018	XO	97.2 MHz	CMOS
SG-8018CG 0.7990M-TJHSA0	EPSON	SG-8018	XO	799 kHz	CMOS
SG-8018CG 32.1060M-TJHPA0	EPSON	SG-8018	XO	32.106 MHz	CMOS
SG-8018CG 23.0140M-TJHSA0	EPSON	SG-8018	XO	23.014 MHz	CMOS
SG-8018CG 16.3840M-TJHPA0	EPSON	SG-8018	XO	16.384 MHz	CMOS
SG-8018CG 50.1100M-TJHSA0	EPSON	SG-8018	XO	50.11 MHz	CMOS
SG-8018CG 18.0224M-TJHPA0	EPSON	SG-8018	XO	18.0224 MHz	CMOS
SG-8018CG 16.3860M-TJHSA0	EPSON	SG-8018	XO	16.386 MHz	CMOS
SG-8018CG 53.0000M-TJHSA0	EPSON	SG-8018	XO	53 MHz	CMOS
SG-8018CG 56.6500M-TJHSA0	EPSON	SG-8018	XO	56.65 MHz	CMOS
SG-8018CG 13.553750M-TJHSA0	EPSON	SG-8018	XO	13.55375 MHz	CMOS
SG-8018CG 45.0000M-TJHPA0	EPSON	SG-8018	XO	45 MHz	CMOS
SG-8018CG 100.0100M-TJHPA0	EPSON	SG-8018	XO	100.01 MHz	CMOS
SG-8018CG 93.7500M-TJHSA0	EPSON	SG-8018	XO	93.75 MHz	CMOS
SG-8018CG 19.2840M-TJHPA0	EPSON	SG-8018	XO	19.284 MHz	CMOS
SG-8018CG 139.2460M-TJHSA0	EPSON	SG-8018	XO	139.246 MHz	CMOS
SG-8018CG 100.0500M-TJHPA0	EPSON	SG-8018	XO	100.05 MHz	CMOS
SG-8018CG 19.4444M-TJHPA0	EPSON	SG-8018	XO	19.4444 MHz	CMOS
SG-8018CG 26.8300M-TJHSA0	EPSON	SG-8018	XO	26.83 MHz	CMOS
SG-8018CG 32.7500M-TJHSA0	EPSON	SG-8018	XO	32.75 MHz	CMOS
SG-8018CG 135.2650M-TJHPA0	EPSON	SG-8018	XO	135.265 MHz	CMOS
SG-8018CG 27.000625M-TJHSA0	EPSON	SG-8018	XO	27.000625 MHz	CMOS
SG-8018CG 138.7000M-TJHPA0	EPSON	SG-8018	XO	138.7 MHz	CMOS
SG-8018CG 32.2500M-TJHSA0	EPSON	SG-8018	XO	32.25 MHz	CMOS
SG-8018CG 137.5000M-TJHPA0	EPSON	SG-8018	XO	137.5 MHz	CMOS
SG-8018CG 0.9000M-TJHSA0	EPSON	SG-8018	XO	900 kHz	CMOS
SG-8018CG 56.4480M-TJHSA0	EPSON	SG-8018	XO	56.448 MHz	CMOS
SG-8018CG 26.9900M-TJHSA0	EPSON	SG-8018	XO	26.99 MHz	CMOS
SG-8018CG 120.9600M-TJHSA0	EPSON	SG-8018	XO	120.96 MHz	CMOS
SG-8018CG 14.089190M-TJHSA0	EPSON	SG-8018	XO	14.08919 MHz	CMOS
SG-8018CG 32.507936M-TJHSA0	EPSON	SG-8018	XO	32.507936 MHz	CMOS
SG-8018CG 100.0400M-TJHPA0	EPSON	SG-8018	XO	100.04 MHz	CMOS
SG-8018CG 19.6870M-TJHPA0	EPSON	SG-8018	XO	19.687 MHz	CMOS
SG-8018CG 44.5450M-TJHPA0	EPSON	SG-8018	XO	44.545 MHz	CMOS
SG-8018CG 4.9150M-TJHSA0	EPSON	SG-8018	XO	4.915 MHz	CMOS
SG-8018CG 4.3000M-TJHSA0	EPSON	SG-8018	XO	4.3 MHz	CMOS
SG-8018CG 32.5140M-TJHPA0	EPSON	SG-8018	XO	32.514 MHz	CMOS
SG-8018CG 55.5555M-TJHSA0	EPSON	SG-8018	XO	55.5555 MHz	CMOS
SG-8018CG 50.0080M-TJHPA0	EPSON	SG-8018	XO	50.008 MHz	CMOS
SG-8018CG 23.8040M-TJHSA0	EPSON	SG-8018	XO	23.804 MHz	CMOS
SG-8018CG 121.0000M-TJHPA0	EPSON	SG-8018	XO	121 MHz	CMOS
SG-8018CG 27.0016M-TJHPA0	EPSON	SG-8018	XO	27.0016 MHz	CMOS
SG-8018CG 148.2200M-TJHPA0	EPSON	SG-8018	XO	148.22 MHz	CMOS
SG-8018CG 99.9300M-TJHSA0	EPSON	SG-8018	XO	99.93 MHz	CMOS
SG-8018CG 14.0500M-TJHSA0	EPSON	SG-8018	XO	14.05 MHz	CMOS
SG-8018CG 98.7650M-TJHSA0	EPSON	SG-8018	XO	98.765 MHz	CMOS
SG-8018CG 46.495960M-TJHPA0	EPSON	SG-8018	XO	46.49596 MHz	CMOS
SG-8018CG 50.0025M-TJHSA0	EPSON	SG-8018	XO	50.0025 MHz	CMOS
SG-8018CG 64.5160M-TJHSA0	EPSON	SG-8018	XO	64.516 MHz	CMOS
SG-8018CG 0.7840M-TJHPA0	EPSON	SG-8018	XO	784 kHz	CMOS
