更多>>KC3225A50.0000C3GE00,京瓷Kyocera晶振,3225日本進口晶振
- 頻率：50.000MHZ
- 尺寸：3225
- 應 用： KC3225A50.0000C3GE00,京瓷Kyocera晶振,3225日本進口晶振,憑借高精度,寬溫域,小型化,強抗干擾的綜合優勢,廣泛應用于多領域高端電子設備.在消費電子領域,可作為智能手機射頻芯片,平板電腦處理器,智能手表主控單元的時鐘...
-
.png)
.png)
KC3225A50.0000C3GE00,京瓷Kyocera晶振,3225日本進口晶振

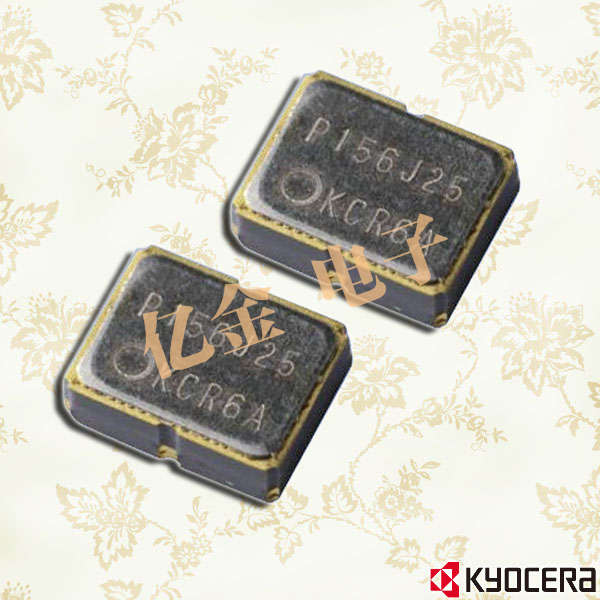

KC3225A50.0000C3GE00是日本京瓷(Kyocera)品牌推出的高性能進口晶振,核心頻率精準設定為50.0000MHz,為電子設備提供穩定且高精度的時鐘信號,是設備時序控制的核心組件.該型號采用標準3225貼片進口晶振封裝規格,尺寸為長3.2mm×寬2.5mm,超薄的封裝設計(厚度通?？刂圃?.7mm以內),能靈活適配智能手機,智能穿戴設備,物聯網模塊等對元器件體積要求嚴苛的小型化產品.工作溫度范圍覆蓋-40℃至+85℃,可在高低溫交替的復雜環境中保持穩定運行,同時具備低功耗特性,有效降低設備整體能耗,延長便攜式電子設備的續航時間,滿足多場景下的使用需求.
.png)
.png)
KC3225A50.0000C3GE00,京瓷Kyocera晶振,3225日本進口晶振
| 原廠型號 Originalmodel： | KC3225A50.0000C3GE00 | 品牌brand： | 京瓷Kyocera |
| Manufacturer品牌 | 日本京瓷晶振 | OperatingTemperature溫度 | -40+85℃ |
| Series型號 | KC3225A | Current-Supply(Max) | - |
| Type類型 | XO | PackageHeight高度 | 0.89mm |
| Frequency頻率 | 50M | Termination 腳位 | 4-pad |
| 輸出方式 Output： | CMOS | PackageType 封裝類型 | 4-Smd |
| Voltage-Supply電壓 | 3.3V | Packaging 包裝 | TapeandReel |
| FrequencyStability頻率穩定度 | 50PP | 安裝方式 Installation： | Surfacemount |
| Size/Dimension尺寸 | 3225mm | 最小包裝數MPQ： | 3000 |
.png)
.png)
KC3225A50.0000C3GE00,京瓷Kyocera晶振,3225日本進口晶振
KC3225A50.0000C3GE00,京瓷Kyocera晶振,3225日本進口晶振
| CX2520DB40000D0FLJCC | 日產京瓷晶振 | CX2520DB | 40 MHz | ±15ppm | ±10ppm | 8pF | 50 Ohms |
| CX2520DB16000D0GEJCC | 日產京瓷晶振 | CX2520DB | 16 MHz | ±15ppm | ±15ppm | 8pF | 80 Ohms |
| CX2520DB24000D0GEJCC | 日產京瓷晶振 | CX2520DB | 24 MHz | ±15ppm | ±15ppm | 8pF | 80 Ohms |
| CX2520DB24576D0GEJCC | 日產京瓷晶振 | CX2520DB | 24.576 MHz | ±15ppm | ±15ppm | 8pF | 80 Ohms |
| CX2520DB32000D0GEJCC | 日產京瓷晶振 | CX2520DB | 32 MHz | ±15ppm | ±15ppm | 8pF | 50 Ohms |
| CX2520DB48000D0GEJCC | 日產京瓷晶振 | CX2520DB | 48 MHz | ±15ppm | ±15ppm | 8pF | 50 Ohms |
| CX2520SB13560D0GEJCC | 日產京瓷晶振 | CX2520SB | 13.56 MHz | ±15ppm | ±15ppm | 8pF | 150 Ohms |
| ST3215SB32768E0HPWBB | 日產京瓷晶振 | ST3215SB | 32.768 kHz | ±200ppm | ±20ppm | 9pF | 70 kOhms |
| ST2012SB32768Z0HPWB4 | 日產京瓷晶振 | ST2012SB | 32.768 kHz | - | ±20ppm | 4pF | 75 kOhms |
| ST2012SB32768C0HPWBB | 日產京瓷晶振 | ST2012SB | 32.768 kHz | - | ±20ppm | 7pF | 80 kOhms |
| ST2012SB32768E0HPWBB | 日產京瓷晶振 | ST2012SB | 32.768 kHz | - | ±20ppm | 9pF | 80 kOhms |
| ST3215SB32768Z0HPWBB | 日產京瓷晶振 | ST3215SB | 32.768 kHz | - | ±20ppm | 4pF | 70 kOhms |
| CX2016DB16000D0FLJCC | 日產京瓷晶振 | CX2016DB | 16 MHz | ±15ppm | ±10ppm | 8pF | 200 Ohms |
| CX5032GB08000H0HPQZ1 | 日產京瓷晶振 | CX5032GB | 8 MHz | ±30ppm | ±20ppm | 12pF | 300 Ohms |
| CX5032GB10000H0HPQZ1 | 日產京瓷晶振 | CX5032GB | 10 MHz | ±30ppm | ±20ppm | 12pF | 150 Ohms |
| CX5032GB12000H0HPQZ1 | 日產京瓷晶振 | CX5032GB | 12 MHz | ±30ppm | ±20ppm | 12pF | 150 Ohms |
| CX5032GB16000H0HPQZ1 | 日產京瓷晶振 | CX5032GB | 16 MHz | ±30ppm | ±20ppm | 12pF | 100 Ohms |
| CT2520DB26000C0FZZA1 | 日產京瓷晶振 | CT2520DB | 26 MHz | ±10ppm | ±10ppm | 7pF | 30 Ohms |
| CX2520DB12000C0WLSC1 | 日產京瓷晶振 | CX2520DB | 12 MHz | ±50ppm | ±50ppm | 7pF | 100 Ohms |
| CX2520DB38400D0FZGC1 | 日產京瓷晶振 | CX2520DB | 38.4 MHz | ±11ppm | ±10ppm | 8pF | 80 Ohms |
| CX3225SB48000D0FPJC2 | 日產京瓷晶振 | CX3225SB | 48 MHz | ±15ppm | ±10ppm | 8pF | 50 Ohms |
| CX3225SB48000D0WPSC2 | 日產京瓷晶振 | CX3225SB | 48 MHz | ±30ppm | ±15ppm | 8pF | 50 Ohms |
| CX3225SB54000D0FPJC2 | 日產京瓷晶振 | CX3225SB | 54 MHz | ±15ppm | ±10ppm | 8pF | 50 Ohms |
| CX3225SB54000D0WPSC2 | 日產京瓷晶振 | CX3225SB | 54 MHz | ±30ppm | ±15ppm | 8pF | 50 Ohms |
| ST3215SB32768B0HSZA1 | 日產京瓷晶振 | ST3215SB | 32.768 kHz | - | ±20ppm | 6pF | 70 kOhms |
| ST3215SB32768C0HSZA1 | 日產京瓷晶振 | ST3215SB | 32.768 kHz | - | ±20ppm | 7pF | 70 kOhms |
| ST3215SB32768E0HSZB1 | 日產京瓷晶振 | ST3215SB | 32.768 kHz | - | ±20ppm | 9pF | 70 kOhms |
| ST3215SB32768H5HSZA1 | 日產京瓷晶振 | ST3215SB | 32.768 kHz | - | ±20ppm | 12.5pF | 70 kOhms |
| CX2520DB16000D0WZRC1 | 日產京瓷晶振 | CX2520DB | 16 MHz | ±50ppm | ±25ppm | 8pF | 80 Ohms |
| CX2520DB32000D0WZRC1 | 日產京瓷晶振 | CX2520DB | 32 MHz | ±50ppm | ±25ppm | 8pF | 50 Ohms |
| ST2012SB32768H5WZZAP | 日產京瓷晶振 | ST2012SB | 32.768 kHz | - | ±250ppm | 12.5pF | 75 kOhms |
| ST3215SB32768H5WZZAP | 日產京瓷晶振 | ST3215SB | 32.768 kHz | ±250ppm | - | 12.5pF | 70 kOhms |
| CX5032GA08000H0PST02 | 日產京瓷晶振 | CX5032GA | 8 MHz | ±100ppm | ±50ppm | 12pF | 200 Ohms |
| CX8045GA04000H0PST03 | 日產京瓷晶振 | CX8045GA | 4 MHz | ±100ppm | ±50ppm | 12pF | 300 Ohms |
| CX2016DB16000H0FLJC1 | 日產京瓷晶振 | CX2016DB | 16 MHz | ±15ppm | ±10ppm | 12pF | 200 Ohms |
| CX2520DB12000D0FLJC1 | 日產京瓷晶振 | CX2520DB | 12 MHz | ±15ppm | ±10ppm | 8pF | 150 Ohms |
| CX2520DB12000H0FLJC1 | 日產京瓷晶振 | CX2520DB | 12 MHz | ±15ppm | ±10ppm | 12pF | 150 Ohms |
| CX2520DB13560D0FLJC2 | 日產京瓷晶振 | CX2520DB | 13.56 MHz | ±15ppm | ±10ppm | 8pF | 150 Ohms |
| CX2520DB13560H0FLJC1 | 日產京瓷晶振 | CX2520DB | 13.56 MHz | ±15ppm | ±10ppm | 12pF | 150 Ohms |
| CX2520DB16000H0FLJC1 | 日產京瓷晶振 | CX2520DB | 16 MHz | ±15ppm | ±10ppm | 12pF | 80 Ohms |
| CX2520DB16000D0GPSC1 | 日產京瓷晶振 | CX2520DB | 16 MHz | ±50ppm | ±15ppm | 8pF | 80 Ohms |
| CX2520DB19200D0FLJC2 | 日產京瓷晶振 | CX2520DB | 19.2 MHz | ±15ppm | ±10ppm | 8pF | 80 Ohms |
| CX2520DB19200H0FLJC1 | 日產京瓷晶振 | CX2520DB | 19.2 MHz | ±15ppm | ±10ppm | 12pF | 80 Ohms |
| CX2520DB24000D0FLJCC | 日產京瓷晶振 | CX2520DB | 24 MHz | ±15ppm | ±10ppm | 8pF | 80 Ohms |
| CX2520DB24000H0FLJC1 | 日產京瓷晶振 | CX2520DB | 24 MHz | ±15ppm | ±10ppm | 12pF | 80 Ohms |
| CX2520DB25000D0FLJC1 | 日產京瓷晶振 | CX2520DB | 25 MHz | ±15ppm | ±10ppm | 8pF | 80 Ohms |
| CX2520DB25000H0FLJC1 | 日產京瓷晶振 | CX2520DB | 25 MHz | ±15ppm | ±10ppm | 12pF | 80 Ohms |
| CX2520DB27000H0FLJC1 | 日產京瓷晶振 | CX2520DB | 27 MHz | ±15ppm | ±10ppm | 12pF | 60 Ohms |
| CX2520DB32000H0FLJC1 | 日產京瓷晶振 | CX2520DB | 32 MHz | ±15ppm | ±10ppm | 12pF | 50 Ohms |
| CX2520DB40000D0GPSC1 | 日產京瓷晶振 | CX2520DB | 40 MHz | ±50ppm | ±15ppm | 8pF | 50 Ohms |
| CX2520DB12000D0GPSC1 | 日產京瓷晶振 | CX2520DB | 12 MHz | ±50ppm | ±15ppm | 8pF | 150 Ohms |
| CX2520DB13560D0GPSC1 | 日產京瓷晶振 | CX2520DB | 13.56 MHz | ±50ppm | ±15ppm | 8pF | 150 Ohms |
| CX2520DB19200D0GPSC1 | 日產京瓷晶振 | CX2520DB | 19.2 MHz | ±50ppm | ±15ppm | 8pF | 80 Ohms |
| CX2520DB20000H0FLJC1 | 日產京瓷晶振 | CX2520DB | 20 MHz | ±15ppm | ±10ppm | 12pF | 80 Ohms |
| CX2520DB20000D0GPSC1 | 日產京瓷晶振 | CX2520DB | 20 MHz | ±50ppm | ±15ppm | 8pF | 80 Ohms |
| CX2520DB24000D0GPSC1 | 日產京瓷晶振 | CX2520DB | 24 MHz | ±50ppm | ±15ppm | 8pF | 80 Ohms |
| CX2520DB24576D0FLJC1 | 日產京瓷晶振 | CX2520DB | 24.576 MHz | ±15ppm | ±10ppm | 8pF | 80 Ohms |
| CX2520DB24576H0FLJC1 | 日產京瓷晶振 | CX2520DB | 24.576 MHz | ±15ppm | ±10ppm | 12pF | 80 Ohms |
| CX2520DB24576D0GPSC1 | 日產京瓷晶振 | CX2520DB | 24.576 MHz | ±50ppm | ±15ppm | 8pF | 80 Ohms |
| CX2520DB25000D0GPSC1 | 日產京瓷晶振 | CX2520DB | 25 MHz | ±50ppm | ±15ppm | 8pF | 80 Ohms |
