更多>>7A25000007,TXC無源晶體諧振器,5032兩腳貼片晶振
- 頻率：25M
- 尺寸：5032mm
- 應 用： 7A25000007,TXC無源晶體諧振器,5032兩腳貼片晶振,采用超小體積5032兩腳貼片結構,不僅能有效隔絕外部電磁干擾(EMI),還能抵御環境濕度,振動等因素影響,確保器件在復雜工況下的結構可靠性與長期使用壽命.
-
.png)
.png)

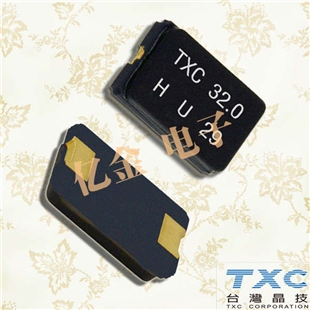

7A25000007,TXC無源晶體諧振器,5032兩腳貼片晶振
7A25000007是TXC品牌推出的高性能無源晶體諧振器,采用5032無源晶振(5.0mm×3.2mm)兩腳貼片封裝,諧振頻率精準鎖定25MHz,能為各類電子設備提供穩定的頻率基準.該型號晶體具備低等效串聯電阻(ESR)特性,典型值可低至50Ω以下,在寬電壓與溫度環境中(通常支持-40℃~+85℃工業級溫區)仍能保持頻率穩定性,滿足精密電子系統對時鐘信號的嚴苛要求,是消費電子,工業控制領域頻率控制的優選器件.
.png)
.png)

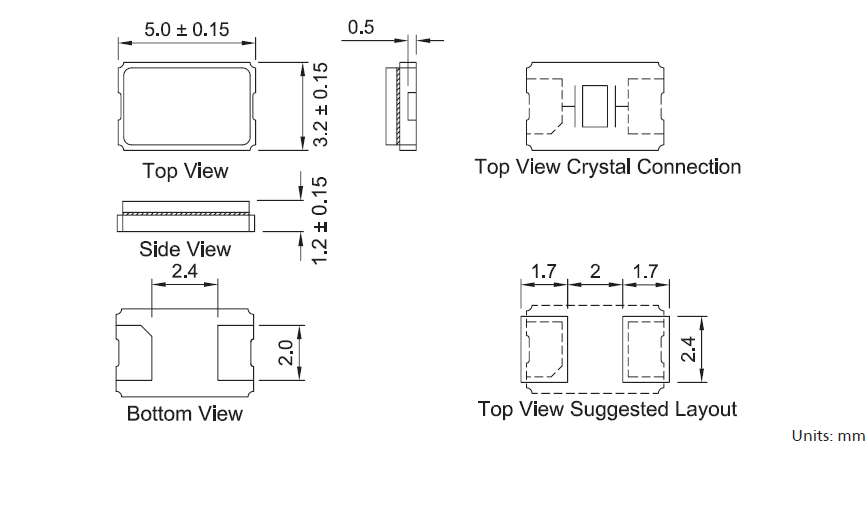

7A25000007,TXC無源晶體諧振器,5032兩腳貼片晶振
| 原廠型號 Originalmodel： | 7A25000007 | 品牌brand： | TXC晶技晶振 |
| 型號名稱 Modelname： | 7A | Size/Dimension尺寸 | 5032mm |
| Type系列： | MHZ Crystal | 高度PackageHeight： | 1.2mm |
| 頻率 frequency： | 25M | 溫度OperatingTemperature | -40+85℃ |
| Frequency Stability頻率穩定度 | - | 腳位Termination： | 2-Pad |
| frequencytolerance頻率容差 | 20PP | 封裝類型PackageType： | 2-smd |
| Loadcapacitance 負載電容 | 20PF | 最小包裝數MPQ： | 1000 |
.png)
.png)
7A25000007,TXC無源晶體諧振器,5032兩腳貼片晶振
7A25000007,TXC無源晶體諧振器,5032兩腳貼片晶振
| 7XZ-32.768KBE-T | TXC CORPORATION | 7XZ | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±50ppm |
| 7Z-38.400MBG-T | TXC CORPORATION | 7Z | TCXO | 38.4 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
| 7Z-26.000MBG-T | TXC CORPORATION | 7Z | TCXO | 26 MHz | Clipped Sine Wave | 3.3V | ±500ppb |
| CX-100.000MBE-T | TXC CORPORATION | CX | XO (Standard) | 100 MHz | HCSL | 3.3V | ±50ppm |
| 7X-50.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm |
| 7C-25.000MBE-T | TXC CORPORATION | 7C | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm |
| 7C-40.000MBE-T | TXC CORPORATION | 7C | XO (Standard) | 40 MHz | CMOS | 3.3V | ±50ppm |
| 8W-24.000MBE-T | TXC CORPORATION | 8W | XO (Standard) | 24 MHz | CMOS | 3.3V | ±50ppm |
| 7C-25.000MCB-T | TXC CORPORATION | 7C | XO (Standard) | 25 MHz | CMOS | 2.5V | ±50ppm |
| 7C-26.000MBB-T | TXC CORPORATION | 7C | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm |
| 7C-28.63636MBB-T | TXC CORPORATION | 7C | XO (Standard) | 28.63636 MHz | CMOS | 3.3V | ±50ppm |
| 7X-19.200MBA-T | TXC CORPORATION | 7X | XO (Standard) | 19.2 MHz | CMOS | 3.3V | ±25ppm |
| 8WE-33.333MBM-T | TXC CORPORATION | 8WE | XO (Standard) | 33.333 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 7X-26.000MBA-T | TXC CORPORATION | 7X | XO (Standard) | 26 MHz | CMOS | 3.3V | ±25ppm |
| 8WE-24.000MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 24 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 7X-26.000MBB-T | TXC CORPORATION | 7X | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm |
| 7X-48.000MBB-T | TXC CORPORATION | 7X | XO (Standard) | 48 MHz | CMOS | 3.3V | ±50ppm |
| AU-12.288MBE-T | TXC CORPORATION | AU | XO (Standard) | 12.288 MHz | CMOS | 3.3V | ±50ppm |
| AU-24.000MBE-T | TXC CORPORATION | AU | XO (Standard) | 24 MHz | CMOS | 3.3V | ±50ppm |
| AU-50.000MBE-T | TXC CORPORATION | AU | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm |
| 7C-26.000MBA-T | TXC CORPORATION | 7C | XO (Standard) | 26 MHz | CMOS | 3.3V | ±25ppm |
| 7C-25.000MBA-T | TXC CORPORATION | 7C | XO (Standard) | 25 MHz | CMOS | 3.3V | ±25ppm |
| BX-100.000MBE-T | TXC CORPORATION | BX | XO (Standard) | 100 MHz | HCSL | 3.3V | ±50ppm |
| 7N-20.000MBP-T | TXC CORPORATION | 7N | TCXO | 20 MHz | CMOS | 3.3V | ±280ppb |
| 7N-12.800MBP-T | TXC CORPORATION | 7N | TCXO | 12.8 MHz | CMOS | 3.3V | ±280ppb |
| 7X-25.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm |
| 7C-4.000MBB-T | TXC CORPORATION | 7C | XO (Standard) | 4 MHz | CMOS | 3.3V | ±50ppm |
| 8WE-25.000MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8WE-38.400MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 38.4 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8NE-25.000MBM-T | TXC CORPORATION | 8NE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-24.000MBM-T | TXC CORPORATION | 8WE | XO (Standard) | 24 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| AU-25.000MBE-T | TXC CORPORATION | AU | XO (Standard) | 25 MHz | CMOS | 3.3V | ±50ppm |
| AU-26.000MBE-T | TXC CORPORATION | AU | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm |
| 7Z-26.000MDS-T | TXC CORPORATION | 7Z | VCTCXO | 26 MHz | Clipped Sine Wave | 1.8V | ±2ppm |
| 7Z-26.000MDG-T | TXC CORPORATION | 7Z | TCXO | 26 MHz | Clipped Sine Wave | 1.8V | ±500ppb |
| BR-61.4400MBE-T | TXC CORPORATION | BR | VCXO | 61.44 MHz | CMOS | 3.3V | ±50ppm |
| 8WE-33.333MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 33.333 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8NE-24.576MDM-T | TXC CORPORATION | 8NE | XO (Standard) | 24.576 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 8WE-30.000MBM-T | TXC CORPORATION | 8WE | XO (Standard) | 30 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8NE-24.000MBM-T | TXC CORPORATION | 8NE | XO (Standard) | 24 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-27.000MDM-T | TXC CORPORATION | 8WE | XO (Standard) | 27 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| TD-7.3728MBD-T | TXC CORPORATION | TD | XO (Standard) | 7.3728 MHz | CMOS | 3.3V | ±25ppm |
| 7XZ-32.768KBA-T | TXC CORPORATION | 7XZ | XO (Standard) | 32.768 kHz | CMOS | 3.3V | ±25ppm |
| 7XZ-32.768KDA-T | TXC CORPORATION | 7XZ | XO (Standard) | 32.768 kHz | CMOS | 1.8V | ±25ppm |
| 7W-36.000MBB-T | TXC CORPORATION | 7W | XO (Standard) | 36 MHz | CMOS | 3.3V | ±50ppm |
| 8NE-25.000MDM-T | TXC CORPORATION | 8NE | XO (Standard) | 25 MHz | CMOS (Low EMI) | 1.8V | ±50ppm |
| 7X-38.400MBE-T | TXC CORPORATION | 7X | XO (Standard) | 38.4 MHz | CMOS | 3.3V | ±50ppm |
| 7W-10.000MBE-T | TXC CORPORATION | 7W | XO (Standard) | 10 MHz | CMOS | 3.3V | ±50ppm |
| 7X-30.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 30 MHz | CMOS | 3.3V | ±50ppm |
| 7X-26.000MBE-T | TXC CORPORATION | 7X | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm |
| 7C-50.000MBE-T | TXC CORPORATION | 7C | XO (Standard) | 50 MHz | CMOS | 3.3V | ±50ppm |
| 8W-26.000MBE-T | TXC CORPORATION | 8W | XO (Standard) | 26 MHz | CMOS | 3.3V | ±50ppm |
| 8W-13.000MBE-T | TXC CORPORATION | 8W | XO (Standard) | 13 MHz | CMOS | 3.3V | ±50ppm |
| 7X-30.000MBB-T | TXC CORPORATION | 7X | XO (Standard) | 30 MHz | CMOS | 3.3V | ±50ppm |
| 8W-20.000MBE-T | TXC CORPORATION | 8W | XO (Standard) | 20 MHz | CMOS | 3.3V | ±50ppm |
| 7C-40.000MCB-T | TXC CORPORATION | 7C | XO (Standard) | 40 MHz | CMOS | 2.5V | ±50ppm |
| 7C-24.576MBA-T | TXC CORPORATION | 7C | XO (Standard) | 24.576 MHz | CMOS | 3.3V | ±25ppm |
| 8NE-24.576MBM-T | TXC CORPORATION | 8NE | XO (Standard) | 24.576 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8WE-20.000MBM-T | TXC CORPORATION | 8WE | XO (Standard) | 20 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
| 8NE-27.000MBM-T | TXC CORPORATION | 8NE | XO (Standard) | 27 MHz | CMOS (Low EMI) | 3.3V | ±50ppm |
