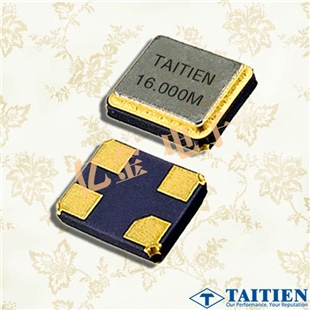

XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN
- 頻率：32MHz
- 尺寸：2.05*1.65mm
- 應 用： XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN,臺灣泰藝石英晶振,XZ型2.0x1.6mmSMD晶體,典型的2.05x1.65x0.45mm超薄陶瓷包裝。-8mm寬的膠帶和卷軸包裝，用于自動組裝。緊密公差10ppm可用,藍牙，移動電話，...
-
-
.jpg)
.jpg)

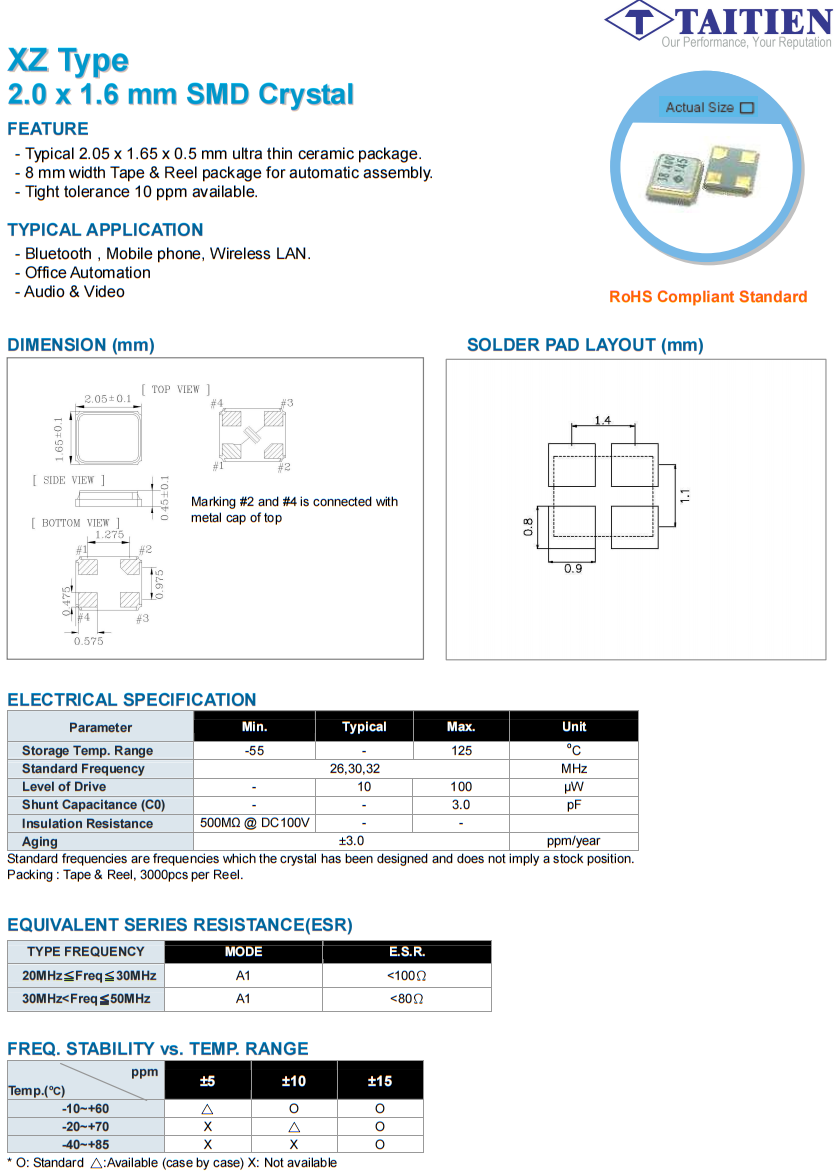

XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN,臺灣泰藝石英晶振,XZ型2.0 x 1.6 mm SMD晶體,典型的2.05 x 1.65 x 0.45 mm超薄陶瓷包裝。- 8 mm寬的膠帶和卷軸包裝，用于自動組裝。緊密公差10 ppm可用,藍牙，移動電話，無線局域網。辦公室自動化,音頻和視頻.
XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN
| 參數 | 最小值 | 典型的 | 最大值 | 單位 |
| 儲存溫度 | --55 | - | 125 | ℃ |
| 標稱頻率 | 26 , 30, 32, 40 | MHz | ||
| 驅動電平 | - | 10 | 200 | µw |
| 并聯電容 | - | - | 3.0 | pF |
| 絕緣電阻 | 500 M?@ DC100V | - | - | |
| 老化 | ±1.0 to ±3.0 | ppm / year | ||
XZDPPLNANF-32.000000|32MHz|15PPM|12PF|-40~85℃|TAITIEN
| TAITIEN原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 |
| XZAEECNANF-26.000000 | Taitien | XZ | 26MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-26.000000 | Taitien | XZ | 26MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-26.000000 | Taitien | XZ | 26MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-27.000000 | Taitien | XZ | 27MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-27.000000 | Taitien | XZ | 27MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-27.000000 | Taitien | XZ | 27MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-27.120000 | Taitien | XZ | 27.12MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-27.120000 | Taitien | XZ | 27.12MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-27.120000 | Taitien | XZ | 27.12MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-32.000000 | Taitien | XZ | 32MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-32.000000 | Taitien | XZ | 32MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-32.000000 | Taitien | XZ | 32MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-38.400000 | Taitien | XZ | 38.4MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-38.400000 | Taitien | XZ | 38.4MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-38.400000 | Taitien | XZ | 38.4MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-48.000000 | Taitien | XZ | 48MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-48.000000 | Taitien | XZ | 48MHz | ±30ppm | ±30ppm | 8pF |
| XZAEECNANF-48.000000 | Taitien | XZ | 48MHz | ±30ppm | ±30ppm | 8pF |
| XZLEECNANF-26.000000 | Taitien | XZ | 26MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-26.000000 | Taitien | XZ | 26MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-26.000000 | Taitien | XZ | 26MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-27.000000 | Taitien | XZ | 27MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-27.000000 | Taitien | XZ | 27MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-27.000000 | Taitien | XZ | 27MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-27.120000 | Taitien | XZ | 27.12MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-27.120000 | Taitien | XZ | 27.12MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-27.120000 | Taitien | XZ | 27.12MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-30.000000 | Taitien | XZ | 30MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-30.000000 | Taitien | XZ | 30MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-30.000000 | Taitien | XZ | 30MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-32.000000 | Taitien | XZ | 32MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-32.000000 | Taitien | XZ | 32MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-32.000000 | Taitien | XZ | 32MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-38.400000 | Taitien | XZ | 38.4MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-38.400000 | Taitien | XZ | 38.4MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-38.400000 | Taitien | XZ | 38.4MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-40.000000 | Taitien | XZ | 40MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-40.000000 | Taitien | XZ | 40MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-40.000000 | Taitien | XZ | 40MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-48.000000 | Taitien | XZ | 48MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-48.000000 | Taitien | XZ | 48MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-48.000000 | Taitien | XZ | 48MHz | ±30ppm | ±30ppm | 6pF |
| XZLEECNANF-50.000000 | Taitien | XZ | 50MHz | ±30ppm | ±30ppm | 6pF |
