首頁進口晶振泰藝晶振XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF

XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF

頻率：24.576MHz
尺寸：5032mm
應　用： XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF，臺產泰藝晶振，典型的5.0x3.2x1.2mm全陶瓷SMD包裝。12mm寬的膠帶和卷軸線圈包裝，用于自動組裝。汽車，筆記本電腦，電腦外設，硬盤-MP3播放器，視聽設備XSCGGCNA...

XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF，臺產泰藝晶振，典型的5.0x3.2x1.2mm全陶瓷SMD包裝。12 mm寬的膠帶和卷軸線圈包裝，用于自動組裝。汽車，筆記本電腦，電腦外設，硬盤-MP3播放器，視聽設備

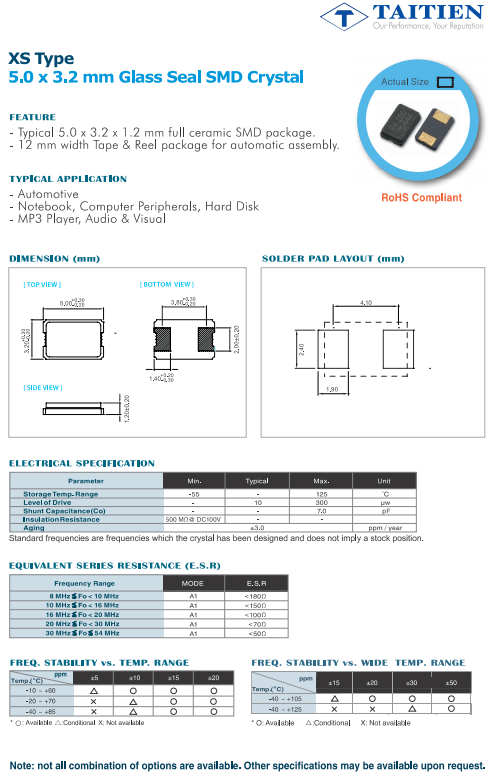

XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF

參數	最小值	典型的	最大值	單位
儲存溫度	--55	-	125	℃
驅動電平	-	10	300	µw
并聯電容	-	-	7.0	pF
絕緣電阻	500 M?@ DC100V	-	-
老化	±3			ppm / year

XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF

TAITIEN原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容
XSCEECNANF-8.000000	TAITIEN晶振	XS	8MHz	±30ppm	±30ppm	10pF
XSCEGCNANF-10.000000	TAITIEN晶振	XS	10MHz	±50ppm	±30ppm	10pF
XSCGGCNANF-24.576000	TAITIEN晶振	XS	24.576MHz	±50ppm	±50ppm	10pF
XSDEECNANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	12pF
XSDEELNANF-12.000000	TAITIEN晶振	XS	12MHz	±30ppm	±30ppm	12pF
XSDEELNANF-13.560000	TAITIEN晶振	XS	13.56MHz	±30ppm	±30ppm	12pF
XSDEELNANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	12pF
XSDEGCNANF-16.000000	TAITIEN晶振	XS	16MHz	±50ppm	±30ppm	12pF
XSFGGLNANF-20.000000	TAITIEN晶振	XS	20MHz	±50ppm	±50ppm	16pF
XSGEECNANF-16.000000	TAITIEN晶振	XS	16MHz	±30ppm	±30ppm	18pF
XSGEELNANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	18pF
XSGEGLNANF-13.000000	TAITIEN晶振	XS	13MHz	±50ppm	±30ppm	18pF
XSHEECNANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	20pF
XSHEELNANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	20pF
XSHGGLNANF-11.059200	TAITIEN晶振	XS	11.0592MHz	±50ppm	±50ppm	20pF
XSHGGLNANF-12.000000	TAITIEN晶振	XS	12MHz	±50ppm	±50ppm	20pF
XSHGGLNANF-16.000000	TAITIEN晶振	XS	16MHz	±50ppm	±50ppm	20pF
XSHGGLNANF-24.000000	TAITIEN晶振	XS	24MHz	±50ppm	±50ppm	20pF
XSDEELAANF-12.000000	TAITIEN晶振	XS	12MHz	±30ppm	±30ppm	12pF
XSDEELAANF-13.560000	TAITIEN晶振	XS	13.56MHz	±30ppm	±30ppm	12pF
XSGEECAANF-16.000000	TAITIEN晶振	XS	16MHz	±30ppm	±30ppm	18pF
XSGEELAANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	18pF
XSHEECAANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	20pF
XSHEELAANF-25.000000	TAITIEN晶振	XS	25MHz	±30ppm	±30ppm	20pF
XSGCCLNANF-25.000000	TAITIEN晶振	XS	25MHz	±20ppm	±20ppm	18pF
XSGCECNANF-8.000000	TAITIEN晶振	XS	8MHz	±30ppm	±20ppm	18pF
XSGCELNANF-8.000000	TAITIEN晶振	XS	8MHz	±30ppm	±20ppm	18pF
XSHCCLNANF-25.000000	TAITIEN晶振	XS	25MHz	±20ppm	±20ppm	20pF
XSCDDCAANF-24.000000	TAITIEN晶振	XS	24MHz	±25ppm	±25ppm	10pF
XSGCCLAANF-25.000000	TAITIEN晶振	XS	25MHz	±20ppm	±20ppm	18pF
XSFPPCNANF-50.000000	TAITIEN晶振	XS	50MHz	±15ppm	±15ppm	16pF
XSDEELNANF-37.050000	TAITIEN晶振	XS	37.05MHz	±30ppm	±30ppm	12pF
XSCDDCNANF-24.000000	TAITIEN晶振	XS	24MHz	±25ppm	±25ppm	10pF
