更多>>TAITIEN,XIHEELAANF-7.372800,7.3728M,20PF,30PPM,49S
- 頻率：7.3728MHz
- 尺寸：10.80mm x 4.50mm

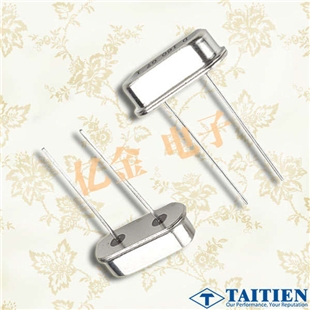

- 應 用： TAITIEN,XIHEELAANF-7.372800,7.3728M,20PF,30PPM,49S，臺灣泰藝電子，泰藝XI系列晶振，典型的10.8x4.5x3.4mm，超薄陶瓷包裝。8mm寬的膠帶和卷軸包裝，用于自動組裝。緊密公差10ppm可用。典型的應用程序-藍牙，移動電...
-
-
.jpg)
.jpg)

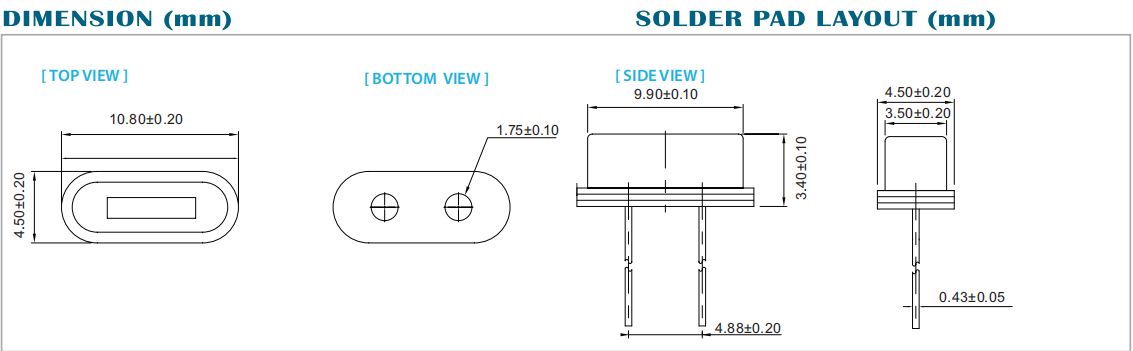

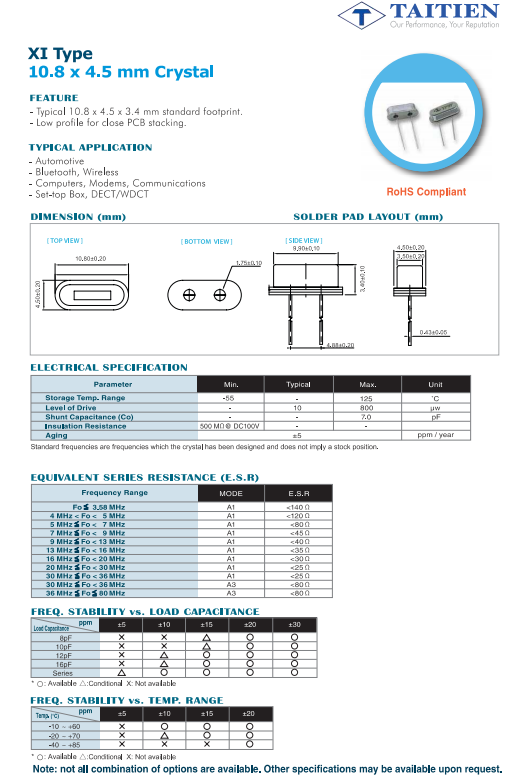

TAITIEN,XIHEELAANF-7.372800,7.3728M,20PF,30PPM,49S，臺灣泰藝電子，泰藝XI系列晶振，典型的10.8 x 4.5 x 3.4 mm，超薄陶瓷包裝。 8 mm寬的膠帶和卷軸包裝，用于自動組裝。緊密公差10 ppm可用。典型的應用程序-藍牙，移動電話，無線局域網。辦公室自動化，音頻和視頻。
TAITIEN,XIHEELAANF-7.372800,7.3728M,20PF,30PPM,49S
| 參數 | 最小值 | 典型的 | 最大值 | 單位 |
| 儲存溫度 | --55 | - | 125 | ℃ |
| 驅動電平 | - | 10 | 800 | µw |
| 并聯電容 | - | - | 7.0 | pF |
| 絕緣電阻 | 500 M?@ DC100V | - | - | |
| 老化 | ±5 | ppm / year | ||
.jpg)
TAITIEN,XIHEELAANF-7.372800,7.3728M,20PF,30PPM,49S
| TAITIEN原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率穩定度 | 頻率偏差 | 負載電容 |
| XSCEECNANF-8.000000 | TAITIEN晶振 | XS | 8MHz | ±30ppm | ±30ppm | 10pF |
| XSCEGCNANF-10.000000 | TAITIEN晶振 | XS | 10MHz | ±50ppm | ±30ppm | 10pF |
| XSCGGCNANF-24.576000 | TAITIEN晶振 | XS | 24.576MHz | ±50ppm | ±50ppm | 10pF |
| XSDEECNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 12pF |
| XSDEELNANF-12.000000 | TAITIEN晶振 | XS | 12MHz | ±30ppm | ±30ppm | 12pF |
| XSDEELNANF-13.560000 | TAITIEN晶振 | XS | 13.56MHz | ±30ppm | ±30ppm | 12pF |
| XSDEELNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 12pF |
| XSDEGCNANF-16.000000 | TAITIEN晶振 | XS | 16MHz | ±50ppm | ±30ppm | 12pF |
| XSFGGLNANF-20.000000 | TAITIEN晶振 | XS | 20MHz | ±50ppm | ±50ppm | 16pF |
| XSGEECNANF-16.000000 | TAITIEN晶振 | XS | 16MHz | ±30ppm | ±30ppm | 18pF |
| XSGEELNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 18pF |
| XSGEGLNANF-13.000000 | TAITIEN晶振 | XS | 13MHz | ±50ppm | ±30ppm | 18pF |
| XSHEECNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 20pF |
| XSHEELNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 20pF |
| XSHGGLNANF-11.059200 | TAITIEN晶振 | XS | 11.0592MHz | ±50ppm | ±50ppm | 20pF |
| XSHGGLNANF-12.000000 | TAITIEN晶振 | XS | 12MHz | ±50ppm | ±50ppm | 20pF |
| XSHGGLNANF-16.000000 | TAITIEN晶振 | XS | 16MHz | ±50ppm | ±50ppm | 20pF |
| XSHGGLNANF-24.000000 | TAITIEN晶振 | XS | 24MHz | ±50ppm | ±50ppm | 20pF |
| XSDEELAANF-12.000000 | TAITIEN晶振 | XS | 12MHz | ±30ppm | ±30ppm | 12pF |
| XSDEELAANF-13.560000 | TAITIEN晶振 | XS | 13.56MHz | ±30ppm | ±30ppm | 12pF |
| XSGEECAANF-16.000000 | TAITIEN晶振 | XS | 16MHz | ±30ppm | ±30ppm | 18pF |
| XSGEELAANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 18pF |
| XSHEECAANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 20pF |
| XSHEELAANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 20pF |
| XSGCCLNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±20ppm | ±20ppm | 18pF |
| XSGCECNANF-8.000000 | TAITIEN晶振 | XS | 8MHz | ±30ppm | ±20ppm | 18pF |
| XSGCELNANF-8.000000 | TAITIEN晶振 | XS | 8MHz | ±30ppm | ±20ppm | 18pF |
| XSHCCLNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±20ppm | ±20ppm | 20pF |
| XSCDDCAANF-24.000000 | TAITIEN晶振 | XS | 24MHz | ±25ppm | ±25ppm | 10pF |
| XSGCCLAANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±20ppm | ±20ppm | 18pF |
| XSFPPCNANF-50.000000 | TAITIEN晶振 | XS | 50MHz | ±15ppm | ±15ppm | 16pF |
| XSDEELNANF-37.050000 | TAITIEN晶振 | XS | 37.05MHz | ±30ppm | ±30ppm | 12pF |
| XSCDDCNANF-24.000000 | TAITIEN晶振 | XS | 24MHz | ±25ppm | ±25ppm | 10pF |
| XIHEELAANF-11.059200 | TAITIEN晶振 | XI | 11.0592MHz | ±30ppm | ±30ppm | 20pF |
| XIHEELAANF-16.000000 | TAITIEN晶振 | XI | 16MHz | ±30ppm | ±30ppm | 20pF |
| XIHEELAANF-25.000000 | TAITIEN晶振 | XI | 25MHz | ±30ppm | ±30ppm | 20pF |
| XIHEELAANF-4.000000 | TAITIEN晶振 | XI | 4MHz | ±30ppm | ±30ppm | 20pF |
| XIHEELAANF-7.372800 | TAITIEN晶振 | XI | 7.3728MHz | ±30ppm | ±30ppm | 20pF |
| XIHEELAANF-8.000000 | TAITIEN晶振 | XI | 8MHz | ±30ppm | ±30ppm | 20pF |
| XIHCELAANF-16.000000 | TAITIEN晶振 | XI | 16MHz | ±30ppm | ±20ppm | 20pF |
.jpg)
.jpg) |
