首頁歐美晶振SKYWORKS晶振Skyworks有源晶振,598ACA000105DG,6G無線通信晶振

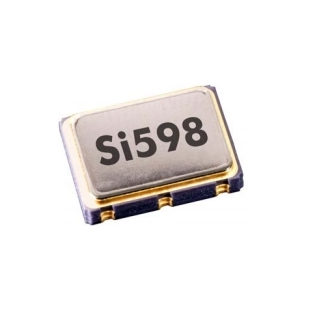

Skyworks有源晶振,598ACA000105DG,6G無線通信晶振

  • 頻率：622.08MHz
  • 尺寸：7.0×5.0mm
  • 應　用： Skyworks晶振,Si598有源晶振采用Skyworks Solutions先進的DSPLL?電路,在任何頻率下提供低抖動時鐘,它們是用戶可編程到從10到810兆赫的任何輸出頻率,分辨率為28萬億分之一(PPT),該器件通過2引腳I2C兼容串行接口編程,寬...
  • RoHS RoHS2

Skyworks有源晶振,598ACA000105DG,6G無線通信晶振,Skyworks晶振,Si598有源晶振采用Skyworks Solutions先進的DSPLL®電路,在任何頻率下提供低抖動時鐘,它們是用戶可編程到從10到810兆赫的任何輸出頻率,分辨率為28萬億分之一(PPT),該器件通過2引腳I2C兼容串行接口編程,寬頻率范圍和超精細的編程分辨率使這些器件非常適合需要在線動態頻率調節或非整數相關速率的多速率操作的應用,7050mm晶振,LV-PECL晶振,差分晶振,石英晶體振蕩器,6G無線通信晶振,多速率鎖相環晶振,多速率參考時鐘晶振.
Skyworks有源晶振,598ACA000105DG,6G無線通信晶振特點：
•I2C可編程輸出頻率從10MHz到810MHz
•0.5ps RMS相位抖動
•優越的電源拒絕能力:0.3-0.4 ps附加抖動
•引腳和寄存器兼容Si570/571
•可編程的28萬億分之一的頻率分辨率
•集成晶體提供穩定性和低相位噪聲
•頻率變化到±3500ppm無故障
•具備CMOS, LVPECL，LVDS和CML輸出
•3.3, 2.5和1.8 V電源選項
•行業標準的5 × 7mm封裝和引腳
•工作溫度-40~85°C

Skyworks有源晶振,598ACA000105DG,6G無線通信晶振規格表
項目 符號 規格說明 條件
額定頻率 f_nom 622.08MHz 請聯系我們以便獲取其它可用頻率的相關信息
電源電壓 Vcc 3.3V
儲存溫度 T_stg -55℃~+125℃ 裸存
工作溫度 T_use -40℃~ +85℃
頻率穩定性 f_tol ±20 ppm +25℃,超出標準的規格說明請聯系我們
電源電流 IDD 130mA Max
LVPECL
對稱性（占空比） SYM 48%~52% 在輸出交叉點
輸出電壓 VOD 1.9VPP Max
LVPECL
VO 1.25V Max
輸入電壓 VIH 0.75XVDD Min

VIL 0.5V Max
上升下降時間 tr/tf 350ps Max
LVPECL
起始時間 t str 10ms Max
相位抖動 tpj 1ps Max
Differential Formats

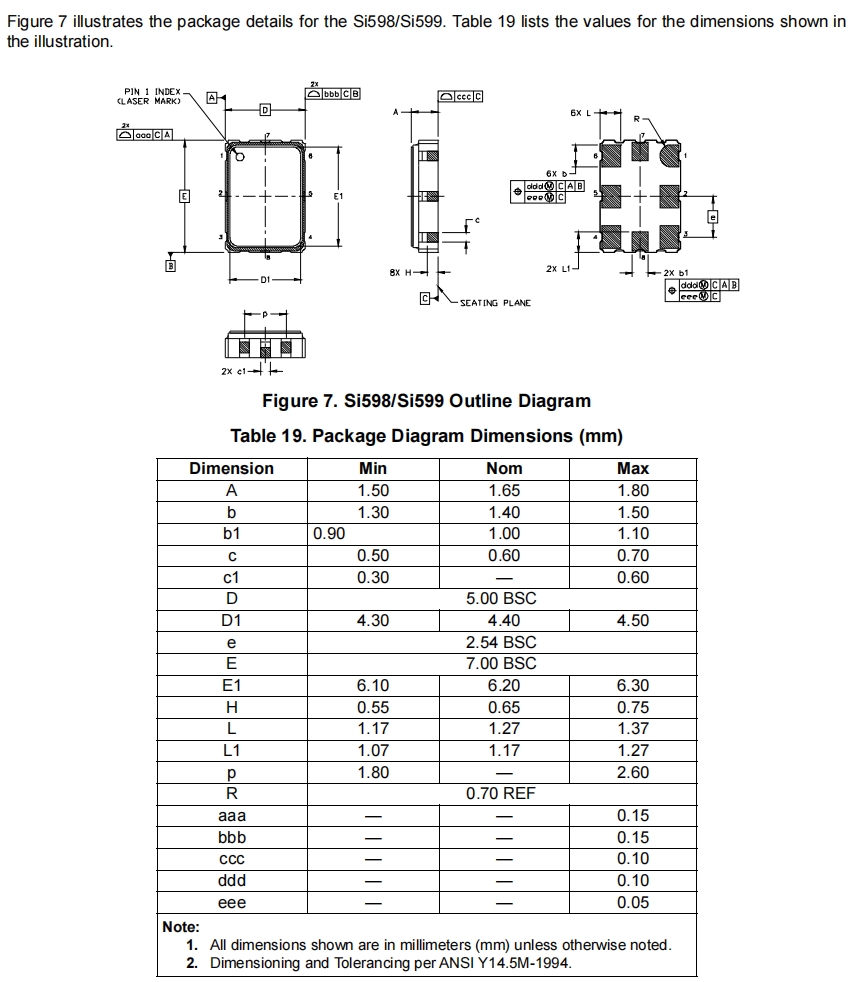

Skyworks有源晶振,598ACA000105DG,6G無線通信晶振尺寸圖

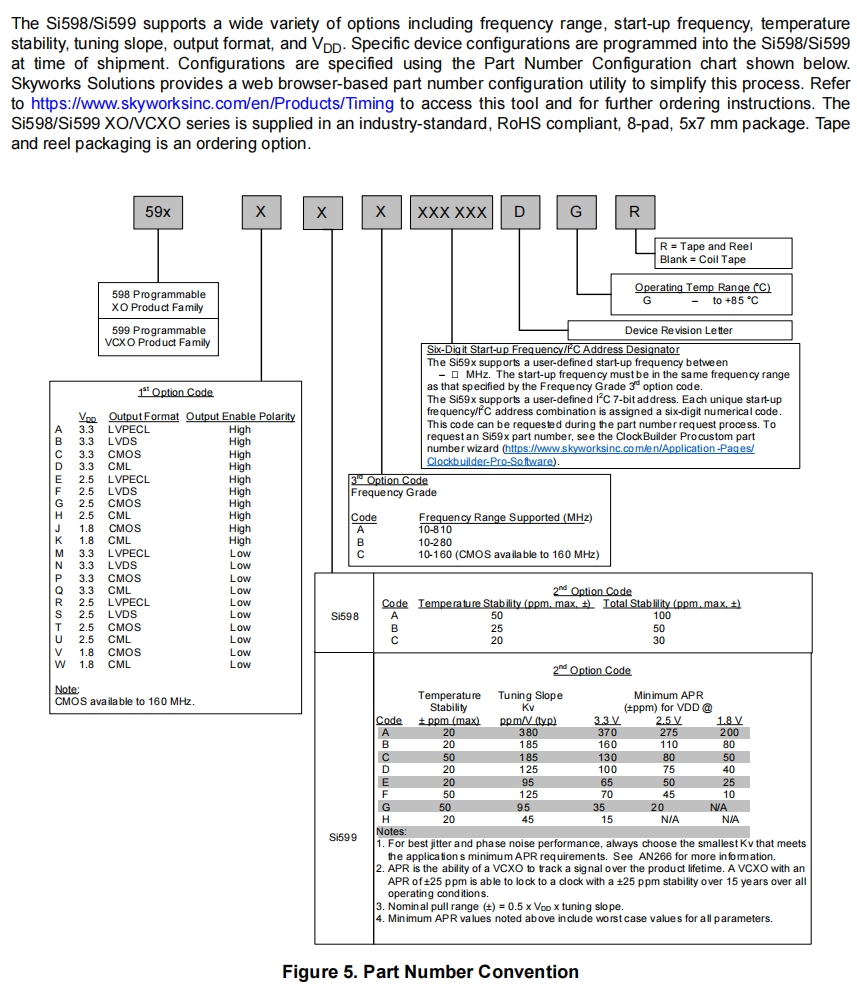

原廠編碼 品牌 型號 頻率 輸出 電壓 頻率穩定性
598ACA000105DG Skyworks Solutions Inc. Si598 622.08 MHz LVPECL 3.3V ±20ppm
598BCA001653DG Skyworks Solutions Inc. Si598 90 MHz LVDS 3.3V ±20ppm
598BCA000420DG Skyworks Solutions Inc. Si598 644.53125 MHz LVDS 3.3V ±20ppm
598BCA000420DGR Skyworks Solutions Inc. Si598 644.53125 MHz LVDS 3.3V ±20ppm
598AAC000112DGR Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±50ppm
598BAC000102DGR Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±50ppm
598BAC000121DGR Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±50ppm
598FAC000112DGR Skyworks Solutions Inc. Si598 10 MHz LVDS 2.5V ±50ppm
598FAC001431DGR Skyworks Solutions Inc. Si598 13.5 MHz LVDS 2.5V ±50ppm
598FAC001445DGR Skyworks Solutions Inc. Si598 13.5 MHz LVDS 2.5V ±50ppm
598BAC000112DGR Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±50ppm
598BAC000159DGR Skyworks Solutions Inc. Si598 148.5 MHz LVDS 3.3V ±50ppm
598FAC000305DGR Skyworks Solutions Inc. Si598 64 MHz LVDS 2.5V ±50ppm
598BAC000305DGR Skyworks Solutions Inc. Si598 64 MHz LVDS 3.3V ±50ppm
598BAC002153DGR Skyworks Solutions Inc. Si598 40.96 MHz LVDS 3.3V ±50ppm
598ABC000112DGR Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±25ppm
598BCC000115DGR Skyworks Solutions Inc. Si598 125 MHz LVDS 3.3V ±20ppm
598ABB000118DGR Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±25ppm
598ABB000126DGR Skyworks Solutions Inc. Si598 200 MHz LVPECL 3.3V ±25ppm
598BBB000118DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±25ppm
598MBB000118DGR Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±25ppm
598AAB000112DGR Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±50ppm
598AAB000121DGR Skyworks Solutions Inc. Si598 100 MHz LVPECL 3.3V ±50ppm
598BAB000107DGR Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±50ppm
598BAB000544DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±50ppm
598MAB000118DGR Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±50ppm
598ABC000112DG Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±25ppm
598AAC000112DG Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±50ppm
598BAC000102DG Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±50ppm
598BAC000121DG Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±50ppm
598FAC000112DG Skyworks Solutions Inc. Si598 10 MHz LVDS 2.5V ±50ppm
598FAC001431DG Skyworks Solutions Inc. Si598 13.5 MHz LVDS 2.5V ±50ppm
598FAC001445DG Skyworks Solutions Inc. Si598 13.5 MHz LVDS 2.5V ±50ppm
598BAC000112DG Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±50ppm
598BAC000159DG Skyworks Solutions Inc. Si598 148.5 MHz LVDS 3.3V ±50ppm
598FAC000305DG Skyworks Solutions Inc. Si598 64 MHz LVDS 2.5V ±50ppm
598BAC002153DG Skyworks Solutions Inc. Si598 40.96 MHz LVDS 3.3V ±50ppm
598BAC000305DG Skyworks Solutions Inc. Si598 64 MHz LVDS 3.3V ±50ppm
598BCC000115DG Skyworks Solutions Inc. Si598 125 MHz LVDS 3.3V ±20ppm
598ABB000118DG Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±25ppm
598ABB000126DG Skyworks Solutions Inc. Si598 200 MHz LVPECL 3.3V ±25ppm
598BBB000118DG Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±25ppm
598MBB000118DG Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±25ppm
598AAB000112DG Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±50ppm
598AAB000121DG Skyworks Solutions Inc. Si598 100 MHz LVPECL 3.3V ±50ppm
598BAB000107DG Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±50ppm
598BAB000544DG Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±50ppm
598MAB000118DG Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±50ppm
598BCB000126DG Skyworks Solutions Inc. Si598 200 MHz LVDS 3.3V ±20ppm
598NCB000126DG Skyworks Solutions Inc. Si598 200 MHz LVDS 3.3V ±20ppm
598BBC001741DGR Skyworks Solutions Inc. Si598 70.656 MHz LVDS 3.3V ±25ppm
598NBC000159DGR Skyworks Solutions Inc. Si598 148.5 MHz LVDS 3.3V ±25ppm
598BBC000482DGR Skyworks Solutions Inc. Si598 148.35 MHz LVDS 3.3V ±25ppm
598BCB000126DGR Skyworks Solutions Inc. Si598 200 MHz LVDS 3.3V ±20ppm
598NCB000126DGR Skyworks Solutions Inc. Si598 200 MHz LVDS 3.3V ±20ppm
598BBC001741DG Skyworks Solutions Inc. Si598 70.656 MHz LVDS 3.3V ±25ppm
598NBC000159DG Skyworks Solutions Inc. Si598 148.5 MHz LVDS 3.3V ±25ppm
598BBC000482DG Skyworks Solutions Inc. Si598 148.35 MHz LVDS 3.3V ±25ppm
598ABB000159DG Skyworks Solutions Inc. Si598 148.5 MHz LVPECL 3.3V ±25ppm
598ABB000252DG Skyworks Solutions Inc. Si598 187.5 MHz LVPECL 3.3V ±25ppm
598ABB000353DG Skyworks Solutions Inc. Si598 200 MHz LVPECL 3.3V ±25ppm
598ABB000771DG Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±25ppm
598BBB000112DG Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±25ppm
598BBB000159DG Skyworks Solutions Inc. Si598 148.5 MHz LVDS 3.3V ±25ppm
598BBB000252DG Skyworks Solutions Inc. Si598 187.5 MHz LVDS 3.3V ±25ppm
598EBB000772DG Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 2.5V ±25ppm
598FBB000115DG Skyworks Solutions Inc. Si598 125 MHz LVDS 2.5V ±25ppm
598MBB000112DG Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±25ppm
598MBB000262DG Skyworks Solutions Inc. Si598 70 MHz LVPECL 3.3V ±25ppm
598ACC000107DGR Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±20ppm
598ACC000118DGR Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±20ppm
598ACC000199DGR Skyworks Solutions Inc. Si598 40 MHz LVPECL 3.3V ±20ppm
598BCC000112DGR Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±20ppm
598BCC000118DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCC000121DGR Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±20ppm
598BCC000199DGR Skyworks Solutions Inc. Si598 40 MHz LVDS 3.3V ±20ppm
598BCC000320DGR Skyworks Solutions Inc. Si598 65 MHz LVDS 3.3V ±20ppm
598NCC000159DGR Skyworks Solutions Inc. Si598 148.5 MHz LVDS 3.3V ±20ppm
598ABB000159DGR Skyworks Solutions Inc. Si598 148.5 MHz LVPECL 3.3V ±25ppm
598ABB000252DGR Skyworks Solutions Inc. Si598 187.5 MHz LVPECL 3.3V ±25ppm
598ABB000353DGR Skyworks Solutions Inc. Si598 200 MHz LVPECL 3.3V ±25ppm
598ABB000771DGR Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±25ppm
598BBB000112DGR Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±25ppm
598BBB000159DGR Skyworks Solutions Inc. Si598 148.5 MHz LVDS 3.3V ±25ppm
598BBB000252DGR Skyworks Solutions Inc. Si598 187.5 MHz LVDS 3.3V ±25ppm
598EBB000772DGR Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 2.5V ±25ppm
598FBB000115DGR Skyworks Solutions Inc. Si598 125 MHz LVDS 2.5V ±25ppm
598MBB000112DGR Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±25ppm
598MBB000262DGR Skyworks Solutions Inc. Si598 70 MHz LVPECL 3.3V ±25ppm
598ABA000179DGR Skyworks Solutions Inc. Si598 312.5 MHz LVPECL 3.3V ±25ppm
598ABA000713DGR Skyworks Solutions Inc. Si598 644 MHz LVPECL 3.3V ±25ppm
598ABA001306DGR Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±25ppm
598BBA001140DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±25ppm
598BBA001141DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±25ppm
598BBA001681DGR Skyworks Solutions Inc. Si598 12 MHz LVDS 3.3V ±25ppm
598FBA000164DGR Skyworks Solutions Inc. Si598 400 MHz LVDS 2.5V ±25ppm
598AAA000107DGR Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±50ppm
598AAA000112DGR Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±50ppm
598BAA000360DGR Skyworks Solutions Inc. Si598 148.5 MHz LVDS 3.3V ±50ppm
598EAA000107DGR Skyworks Solutions Inc. Si598 10 MHz LVPECL 2.5V ±50ppm
598FAA000112DGR Skyworks Solutions Inc. Si598 10 MHz LVDS 2.5V ±50ppm
598FAA000476DGR Skyworks Solutions Inc. Si598 322.265625 MHz LVDS 2.5V ±50ppm
598FAA001869DGR Skyworks Solutions Inc. Si598 300 MHz LVDS 2.5V ±50ppm
598FAA001870DGR Skyworks Solutions Inc. Si598 300 MHz LVDS 2.5V ±50ppm
598AAA000118DGR Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±50ppm
598AAA002089DGR Skyworks Solutions Inc. Si598 15.437823 MHz LVPECL 3.3V ±50ppm
598BAA000112DGR Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±50ppm
598FAA000115DGR Skyworks Solutions Inc. Si598 125 MHz LVDS 2.5V ±50ppm
598FAA002037DGR Skyworks Solutions Inc. Si598 138.5 MHz LVDS 2.5V ±50ppm
598SAA000136DGR Skyworks Solutions Inc. Si598 160 MHz LVDS 2.5V ±50ppm
598BAA002358DGR Skyworks Solutions Inc. Si598 266.5 MHz LVDS 3.3V ±50ppm
598SAA000112DGR Skyworks Solutions Inc. Si598 10 MHz LVDS 2.5V ±50ppm
598ACC000107DG Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±20ppm
598ACC000118DG Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±20ppm
598ACC000199DG Skyworks Solutions Inc. Si598 40 MHz LVPECL 3.3V ±20ppm
598BCC000112DG Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±20ppm
598BCC000118DG Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCC000121DG Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±20ppm
598BCC000199DG Skyworks Solutions Inc. Si598 40 MHz LVDS 3.3V ±20ppm
598BCC000320DG Skyworks Solutions Inc. Si598 65 MHz LVDS 3.3V ±20ppm
598NCC000159DG Skyworks Solutions Inc. Si598 148.5 MHz LVDS 3.3V ±20ppm
598ACB000106DG Skyworks Solutions Inc. Si598 155.52 MHz LVPECL 3.3V ±20ppm
598ACB000107DG Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±20ppm
598BCA000118DG Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCB000107DG Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±20ppm
598FCB000107DG Skyworks Solutions Inc. Si598 10 MHz LVDS 2.5V ±20ppm
598FCB000815DG Skyworks Solutions Inc. Si598 155.52 MHz LVDS 2.5V ±20ppm
598MCB000107DG Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±20ppm
598MCB000112DG Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±20ppm
598MCB000707DG Skyworks Solutions Inc. Si598 164 MHz LVPECL 3.3V ±20ppm
598BCB000121DG Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±20ppm
598FCB000290DG Skyworks Solutions Inc. Si598 250 MHz LVDS 2.5V ±20ppm
598FCB000126DG Skyworks Solutions Inc. Si598 200 MHz LVDS 2.5V ±20ppm
598AAA000107DG Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±50ppm
598AAA000112DG Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±50ppm
598BAA000360DG Skyworks Solutions Inc. Si598 148.5 MHz LVDS 3.3V ±50ppm
598EAA000107DG Skyworks Solutions Inc. Si598 10 MHz LVPECL 2.5V ±50ppm
598FAA000112DG Skyworks Solutions Inc. Si598 10 MHz LVDS 2.5V ±50ppm
598FAA000476DG Skyworks Solutions Inc. Si598 322.265625 MHz LVDS 2.5V ±50ppm
598FAA001869DG Skyworks Solutions Inc. Si598 300 MHz LVDS 2.5V ±50ppm
598FAA001870DG Skyworks Solutions Inc. Si598 300 MHz LVDS 2.5V ±50ppm
598AAA000118DG Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±50ppm
598AAA002089DG Skyworks Solutions Inc. Si598 15.437823 MHz LVPECL 3.3V ±50ppm
598BAA000112DG Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±50ppm
598FAA000115DG Skyworks Solutions Inc. Si598 125 MHz LVDS 2.5V ±50ppm
598FAA002037DG Skyworks Solutions Inc. Si598 138.5 MHz LVDS 2.5V ±50ppm
598BAA002358DG Skyworks Solutions Inc. Si598 266.5 MHz LVDS 3.3V ±50ppm
598SAA000136DG Skyworks Solutions Inc. Si598 160 MHz LVDS 2.5V ±50ppm
598SAA000112DG Skyworks Solutions Inc. Si598 10 MHz LVDS 2.5V ±50ppm
598ACB000106DGR Skyworks Solutions Inc. Si598 155.52 MHz LVPECL 3.3V ±20ppm
598ACB000107DGR Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±20ppm
598BCA000118DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCB000107DGR Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±20ppm
598FCB000107DGR Skyworks Solutions Inc. Si598 10 MHz LVDS 2.5V ±20ppm
598FCB000815DGR Skyworks Solutions Inc. Si598 155.52 MHz LVDS 2.5V ±20ppm
598MCB000107DGR Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±20ppm
598MCB000112DGR Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±20ppm
598MCB000707DGR Skyworks Solutions Inc. Si598 164 MHz LVPECL 3.3V ±20ppm
598BCB000121DGR Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±20ppm
598FCB000290DGR Skyworks Solutions Inc. Si598 250 MHz LVDS 2.5V ±20ppm
598FCB000126DGR Skyworks Solutions Inc. Si598 200 MHz LVDS 2.5V ±20ppm
598ABA000179DG Skyworks Solutions Inc. Si598 312.5 MHz LVPECL 3.3V ±25ppm
598ABA000713DG Skyworks Solutions Inc. Si598 644 MHz LVPECL 3.3V ±25ppm
598ABA001306DG Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±25ppm
598BBA001140DG Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±25ppm
598BBA001141DG Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±25ppm
598BBA001681DG Skyworks Solutions Inc. Si598 12 MHz LVDS 3.3V ±25ppm
598FBA000164DG Skyworks Solutions Inc. Si598 400 MHz LVDS 2.5V ±25ppm
598BBA000126DG Skyworks Solutions Inc. Si598 200 MHz LVDS 3.3V ±25ppm
598FCA000164DG Skyworks Solutions Inc. Si598 400 MHz LVDS 2.5V ±20ppm
598FCA000179DG Skyworks Solutions Inc. Si598 312.5 MHz LVDS 2.5V ±20ppm
598FCA000195DG Skyworks Solutions Inc. Si598 250 MHz LVDS 2.5V ±20ppm
598FCA001043DG Skyworks Solutions Inc. Si598 645 MHz LVDS 2.5V ±20ppm
598FCA001300DG Skyworks Solutions Inc. Si598 402.83203 MHz LVDS 2.5V ±20ppm
598MCA001504DG Skyworks Solutions Inc. Si598 535 MHz LVPECL 3.3V ±20ppm
598MCA001505DG Skyworks Solutions Inc. Si598 535 MHz LVPECL 3.3V ±20ppm
598RCA000118DG Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 2.5V ±20ppm
598SCA000126DG Skyworks Solutions Inc. Si598 200 MHz LVDS 2.5V ±20ppm
598SCA000353DG Skyworks Solutions Inc. Si598 200 MHz LVDS 2.5V ±20ppm
598SCA000521DG Skyworks Solutions Inc. Si598 156.25 MHz LVDS 2.5V ±20ppm
598SCA000771DG Skyworks Solutions Inc. Si598 156.25 MHz LVDS 2.5V ±20ppm
598SCA001392DG Skyworks Solutions Inc. Si598 161.132812 MHz LVDS 2.5V ±20ppm
598SCA001393DG Skyworks Solutions Inc. Si598 161.132812 MHz LVDS 2.5V ±20ppm
598ACA000159DG Skyworks Solutions Inc. Si598 148.5 MHz LVPECL 3.3V ±20ppm
598BCA000177DG Skyworks Solutions Inc. Si598 297 MHz LVDS 3.3V ±20ppm
598BCA001974DG Skyworks Solutions Inc. Si598 161.133 MHz LVDS 3.3V ±20ppm
598FCA000504DG Skyworks Solutions Inc. Si598 48 MHz LVDS 2.5V ±20ppm
598SCA000112DG Skyworks Solutions Inc. Si598 10 MHz LVDS 2.5V ±20ppm
598BCA001741DG Skyworks Solutions Inc. Si598 70.656 MHz LVDS 3.3V ±20ppm
598FCA000290DG Skyworks Solutions Inc. Si598 250 MHz LVDS 2.5V ±20ppm
598BCA000126DG Skyworks Solutions Inc. Si598 200 MHz LVDS 3.3V ±20ppm
598BCA000107DG Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±20ppm
598BCA000121DG Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±20ppm
598FCA001699DG Skyworks Solutions Inc. Si598 100 MHz LVDS 2.5V ±20ppm
598BCA000504DG Skyworks Solutions Inc. Si598 48 MHz LVDS 3.3V ±20ppm
598ABA000133DG Skyworks Solutions Inc. Si598 500 MHz LVPECL 3.3V ±25ppm
598ABA000870DG Skyworks Solutions Inc. Si598 533.333333 MHz LVPECL 3.3V ±25ppm
598BBA000107DG Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±25ppm
598BBA000112DG Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±25ppm
598BBA000133DG Skyworks Solutions Inc. Si598 500 MHz LVDS 3.3V ±25ppm
598BBA000159DG Skyworks Solutions Inc. Si598 148.5 MHz LVDS 3.3V ±25ppm
598BBA000870DG Skyworks Solutions Inc. Si598 533.333333 MHz LVDS 3.3V ±25ppm
598BBA001654DG Skyworks Solutions Inc. Si598 300.12 MHz LVDS 3.3V ±25ppm
598BBA001655DG Skyworks Solutions Inc. Si598 300.12 MHz LVDS 3.3V ±25ppm
598BBA001682DG Skyworks Solutions Inc. Si598 216 MHz LVDS 3.3V ±25ppm
598EBA000374DG Skyworks Solutions Inc. Si598 200 MHz LVPECL 2.5V ±25ppm
598EBA000870DG Skyworks Solutions Inc. Si598 533.333333 MHz LVPECL 2.5V ±25ppm
598FBA000121DG Skyworks Solutions Inc. Si598 100 MHz LVDS 2.5V ±25ppm
598FBA000823DG Skyworks Solutions Inc. Si598 300 MHz LVDS 2.5V ±25ppm
598FBA000870DG Skyworks Solutions Inc. Si598 533.333333 MHz LVDS 2.5V ±25ppm
598RBA000136DG Skyworks Solutions Inc. Si598 160 MHz LVPECL 2.5V ±25ppm
598BBA001011DG Skyworks Solutions Inc. Si598 148.5 MHz LVDS 3.3V ±25ppm
598BBA002358DG Skyworks Solutions Inc. Si598 266.5 MHz LVDS 3.3V ±25ppm
598ACA000133DG Skyworks Solutions Inc. Si598 500 MHz LVPECL 3.3V ±20ppm
598ACA001715DG Skyworks Solutions Inc. Si598 26 MHz LVPECL 3.3V ±20ppm
598BCA000163DG Skyworks Solutions Inc. Si598 20 MHz LVDS 3.3V ±20ppm
598BCA000383DG Skyworks Solutions Inc. Si598 150 MHz LVDS 3.3V ±20ppm
598BCA001204DG Skyworks Solutions Inc. Si598 125 MHz LVDS 3.3V ±20ppm
598BCA001707DG Skyworks Solutions Inc. Si598 322 MHz LVDS 3.3V ±20ppm
598BCA001709DG Skyworks Solutions Inc. Si598 322 MHz LVDS 3.3V ±20ppm
598BCA001718DG Skyworks Solutions Inc. Si598 26 MHz LVDS 3.3V ±20ppm
598BCA001719DG Skyworks Solutions Inc. Si598 26 MHz LVDS 3.3V ±20ppm
598BCA001720DG Skyworks Solutions Inc. Si598 26 MHz LVDS 3.3V ±20ppm
598BCA001782DG Skyworks Solutions Inc. Si598 322.265625 MHz LVDS 3.3V ±20ppm
598BCA001783DG Skyworks Solutions Inc. Si598 322.265625 MHz LVDS 3.3V ±20ppm
598MCA001306DG Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±20ppm
598ACA000105DGR Skyworks Solutions Inc. Si598 622.08 MHz LVPECL 3.3V ±20ppm
598ACA000112DGR Skyworks Solutions Inc. Si598 10 MHz LVPECL 3.3V ±20ppm
598ACA000115DGR Skyworks Solutions Inc. Si598 125 MHz LVPECL 3.3V ±20ppm
598ACA000118DGR Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±20ppm
598ACA000121DGR Skyworks Solutions Inc. Si598 100 MHz LVPECL 3.3V ±20ppm
598ACA000568DGR Skyworks Solutions Inc. Si598 350 MHz LVPECL 3.3V ±20ppm
598ACA000642DGR Skyworks Solutions Inc. Si598 100 MHz LVPECL 3.3V ±20ppm
598ACA000653DGR Skyworks Solutions Inc. Si598 161.132812 MHz LVPECL 3.3V ±20ppm
598ACA000770DGR Skyworks Solutions Inc. Si598 100 MHz LVPECL 3.3V ±20ppm
598ACA000771DGR Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±20ppm
598ACA000856DGR Skyworks Solutions Inc. Si598 100 MHz LVPECL 3.3V ±20ppm
598ACA000962DGR Skyworks Solutions Inc. Si598 322.26562 MHz LVPECL 3.3V ±20ppm
598ACA001134DGR Skyworks Solutions Inc. Si598 156.25 MHz LVPECL 3.3V ±20ppm
598ACA001204DGR Skyworks Solutions Inc. Si598 125 MHz LVPECL 3.3V ±20ppm
598ACA001376DGR Skyworks Solutions Inc. Si598 125 MHz LVPECL 3.3V ±20ppm
598ACA001377DGR Skyworks Solutions Inc. Si598 156.257813 MHz LVPECL 3.3V ±20ppm
598ACA001491DGR Skyworks Solutions Inc. Si598 500 MHz LVPECL 3.3V ±20ppm
598BCA000112DGR Skyworks Solutions Inc. Si598 10 MHz LVDS 3.3V ±20ppm
598BCA000303DGR Skyworks Solutions Inc. Si598 312.5 MHz LVDS 3.3V ±20ppm
598BCA000313DGR Skyworks Solutions Inc. Si598 300 MHz LVDS 3.3V ±20ppm
598BCA000360DGR Skyworks Solutions Inc. Si598 148.5 MHz LVDS 3.3V ±20ppm
598BCA000391DGR Skyworks Solutions Inc. Si598 280 MHz LVDS 3.3V ±20ppm
598BCA000770DGR Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±20ppm
598BCA000795DGR Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±20ppm
598BCA000824DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA000856DGR Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±20ppm
598BCA000896DGR Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±20ppm
598BCA001027DGR Skyworks Solutions Inc. Si598 100 MHz LVDS 3.3V ±20ppm
598BCA001134DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001135DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001136DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001137DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001138DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001139DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001140DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001141DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001142DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001143DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001144DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001145DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001146DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001147DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001148DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001149DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001150DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001151DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001152DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001153DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001154DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001155DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001156DGR Skyworks Solutions Inc. Si598 156.25 MHz LVDS 3.3V ±20ppm
598BCA001196DGR Skyworks Solutions Inc. Si598 174.7 MHz LVDS 3.3V ±20ppm
598BCA001197DGR Skyworks Solutions Inc. Si598 174.7 MHz LVDS 3.3V ±20ppm
公司：深圳市億金電子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://m.py519.com
地址：廣東省深圳市寶安區新安107國道旁

相關產品

誠征下列地區 晶振 | 石英晶振 | 圓柱晶振 | 貼片晶振 | 陶瓷晶振 | 石英晶體諧振器 | 頻率元件 的合作伙伴：
深圳市 廣州市 北京 上海 東莞 佛山 中山 順德 珠海 杭州 溫州 武漢 長沙 南京 大連 長春 西安 鄭州 澳門 沈陽 南寧 昆明 濟南 重慶 成都
kf
kf
close
kf 億金微信號
欧美激情国产精品日韩_国产精品91在线_精品欧美一区二区三区久久久_欧美日韩高清区
欧美精品激情视频| 欧美区在线播放| 国产日韩亚洲欧美在线| 欧美人与性禽动交精品| 欧美在线视频一区| 欧美日韩黄色一级片| 黄色国产小视频| 国内精品视频一区二区三区| 蜜桃91精品入口| 国产欧美一区二区三区在线看| 国产综合色香蕉精品| 国内偷自视频区视频综合| 国产日本欧美在线观看| 国产在线精品成人一区二区三区| 国产亚洲综合视频| 国产欧美日韩在线播放| 91免费看国产| 久久人人爽人人爽人人av| 国产激情在线观看视频| 久久精品成人一区二区三区| 国产成人精品无码播放| 国产精品福利小视频| 精品久久久久久无码国产| 一本久道久久综合狠狠爱亚洲精品| 亚洲精品成人三区| 日韩美女中文字幕| 国产一区二区在线免费视频| 国产精品亚洲аv天堂网| 91精品黄色| 日韩在线国产精品| 精品国产福利| 欧美一区二区大胆人体摄影专业网站| 欧美亚洲色图视频| 国产精品一区二区你懂得| 国产国语刺激对白av不卡| 国产精品视频区| 亚洲精品无码久久久久久| 欧美综合77777色婷婷| 国产女人18毛片水18精品| 国产高潮呻吟久久久| 国产精品欧美亚洲777777| 亚洲人体一区| 精品人妻少妇一区二区| 国产毛片视频网站| 久久国产精品免费观看| 国产精品成人一区二区| 日本精品一区在线观看| 国产精品综合久久久| 久久国产欧美精品| 亚洲综合日韩中文字幕v在线| 欧美亚州在线观看| 久久一区二区精品| 精品国产aⅴ麻豆| 欧美一级成年大片在线观看| 91精品视频观看| 欧美日韩高清在线观看| 青青草一区二区| 久久综合一区二区三区| 国产精品久久久久久久久久免费 | 国产在线观看精品| 国产成人aa精品一区在线播放 | 亚洲欧美国产精品桃花| 国内精品美女av在线播放| 91精品国产91| 中文字幕中文字幕一区三区| 欧美亚洲另类在线| 91九色在线免费视频| 久久亚洲精品一区二区| 欧美日韩一区在线观看视频| 91老司机精品视频| 蜜臀久久99精品久久久无需会员 | 成人黄色av网站| 久久天天躁狠狠躁夜夜躁2014| 日韩小视频在线播放| 91av在线不卡| 中文字幕黄色大片| 国产一区二区精品免费| 久久精品在线视频| 欧美一二三视频| 日韩一区二区精品视频| 日韩视频在线观看国产| 国产精品99久久久久久www | 国产美女搞久久| 久久99久久亚洲国产| 国内揄拍国内精品少妇国语| 国产精品视频资源| 欧美性猛交久久久乱大交小说| 国产成人av在线| 日本免费不卡一区二区| 久艹视频在线免费观看| 日本三级中文字幕在线观看| 国产成人精品福利一区二区三区 | 久久成人亚洲精品| 国产拍精品一二三| 欧美日产国产成人免费图片| 国产伦一区二区三区色一情| 欧美人交a欧美精品| 99久久精品久久久久久ai换脸 | 日韩影院一区| 久久久在线观看| 日本韩国在线不卡| 色狠狠久久aa北条麻妃| 精品日本一区二区三区 | 亚洲国产精品久久久久婷蜜芽| 91久久国产自产拍夜夜嗨| 亚洲91精品在线观看| 久久伊人资源站| 欧美做受高潮1| 国产精品久久综合av爱欲tv| 国产麻豆电影在线观看| 亚洲国产精品一区二区第一页| 97免费中文视频在线观看| 午夜精品理论片| 九色在线视频观看| 欧美一性一乱一交一视频| 另类色图亚洲色图| 91观看网站| 欧美动漫一区二区| 色综合老司机第九色激情| 成人动漫在线视频| 日本成人黄色免费看| 国产精品视频一区二区三区经| 国产精品自拍偷拍| 日本精品性网站在线观看| 国产精品人人做人人爽| 成人av在线天堂| 日本黄网站色大片免费观看| 国产精品日韩在线一区| 国产精品亚洲激情| 日韩精品在线观看av| 久久成人精品电影| 国产v亚洲v天堂无码| 国内精品一区二区| 天天爽天天狠久久久| 久久九九精品99国产精品| 成人毛片100部免费看| 青青影院一区二区三区四区| 精品国产第一页| 色狠狠av一区二区三区香蕉蜜桃| 国产伦精品一区二区三区视频黑人| 视频一区二区综合| 国产精品久久久久久久久久久久午夜片 | 韩国v欧美v日本v亚洲| 亚洲影院色在线观看免费| 色狠狠久久aa北条麻妃| 国产精品亚洲αv天堂无码| 欧洲国产精品| 亚洲a级在线播放观看| 久久夜色撩人精品| 久久久久久免费精品| 91久色国产| 国产欧美亚洲日本| 欧美 国产 日本| 日韩激情视频| 午夜精品一区二区三区在线| 久久成人精品一区二区三区| 久久久久久久久久久99| 99国产在线观看| 国产美女精品久久久| 免费看a级黄色片| 日韩免费毛片| 亚洲欧美国产精品桃花| 久久99久久99精品中文字幕| 久久精品免费播放| 116极品美女午夜一级| 成人欧美一区二区三区黑人| 国产综合中文字幕| 精品欧美日韩| 欧美日韩在线观看一区| 欧美综合国产精品久久丁香| 日韩欧美电影一区二区| 日本十八禁视频无遮挡| 欧美一级视频在线播放| 亚洲欧美日韩不卡| 亚洲区一区二区三区| 欧美日韩成人免费| 久久成人人人人精品欧| 国产精品福利在线观看| 国产精品久久久久久久久久直播| 久久久免费av| 久久精品99| 日韩中文字幕免费看| 日韩在线视频网| 色婷婷综合成人av| 日韩在线免费视频| 丝袜美腿精品国产二区| 日韩亚洲一区二区| 国产精品欧美亚洲777777| 国产精品视频99| 欧美精品在线免费播放| 久久婷婷国产麻豆91天堂 | 久久99精品国产一区二区三区| 久久久成人精品一区二区三区| 国产精欧美一区二区三区| 久久久国产精品一区二区三区| 国产v综合v亚洲欧美久久| www.久久久久| 国产精品高潮粉嫩av| 欧美精品xxx| 亚洲精品乱码久久久久久蜜桃91|
