首頁歐美晶振拉隆晶振歐美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振

歐美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振

頻率：19.2MHz
尺寸：2.0×1.6mm
應　用： 歐美拉隆晶振,R2016無源晶振,R2016-19.200-10-1010-TR晶振,石英晶體諧振器,SMD晶振,2016mm晶振,超小型晶振,頻率19.2MHz,負載10pF,頻率穩定性10ppm,工作溫度-10~60°C,高精度晶振,無鉛環保晶振,6G路由器晶振,智能手機晶...

歐美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振,歐美拉隆晶振,R2016無源晶振,R2016-19.200-10-1010-TR晶振,石英晶體諧振器,SMD晶振,2016mm晶振,超小型晶振,頻率19.2MHz,負載10pF,頻率穩定性10ppm,工作溫度-10~60°C,高精度晶振,無鉛環保晶振,6G路由器晶振,智能手機晶振,可穿戴設備晶振,筆記本電腦晶振.
歐美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振特點：
•緊湊的設計
•精度高
•適合高密度表面安裝

歐美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振規格表

參數	數值
標準頻率	19.2MHz
振蕩模式	AT CUT, Fundamental
頻率容差	10ppm
頻率穩定性	10ppm
工作溫度	−10~+60°C
儲存溫度	−40~+85C
老化	±5 ppm
負載	10pF
并聯電容	5.0 pF Max
激勵功率	100 µW MAX
等效串聯電阻	180 OHMS MAX
等效串聯電阻	180 OHMS MAX

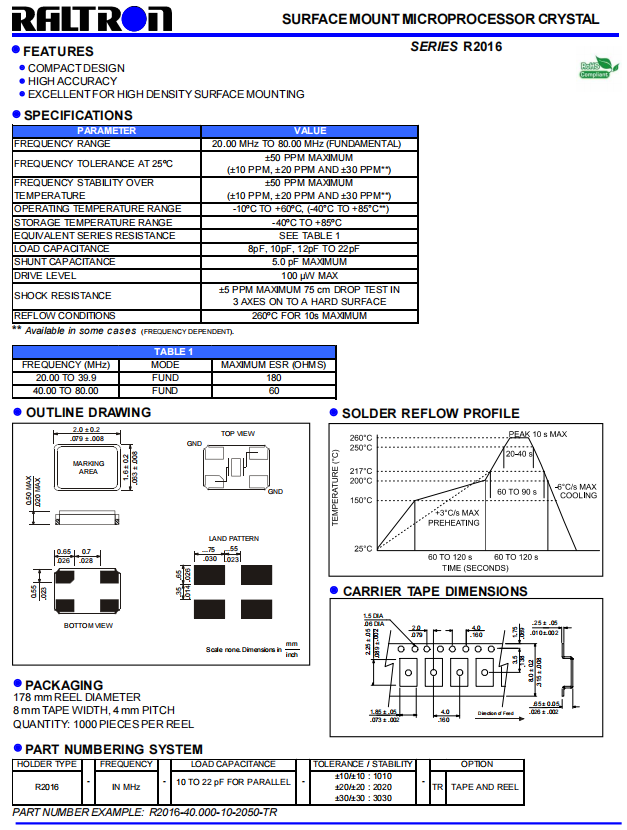

歐美拉隆晶振,R2016-19.200-10-1010-TR,6G路由器晶振尺寸圖

Raltron原廠編碼	型號	頻率	尺寸	頻率偏差	頻率穩定度	負載	工作溫度
R2016-16.000-12-1020-TR	R2016	16.000MHz	2.0 x 1.6mm	± 10 ppm	± 20 ppm	12 pF	-10°C~+60°C
R2016-16.000-18-3030-EXT-TR	R2016	16.000MHz	2.0 x 1.6mm	± 30 ppm	± 30 ppm	18 pF	-40°C~+85°C
R2016-16.000-8-1010-TR-NS1	R2016	16.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	8 pF	-10°C~+70°C
R2016-16.000-9-1010-TR-NS1	R2016	16.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	9 pF	-20°C~+75°C
R2016-19.200-10-1010-TR	R2016	19.200MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	10 pF	-10°C~+60°C
R2016-20.000-10-3030-EXT-TR	R2016	20.000MHz	2.0 x 1.6mm	± 30 ppm	± 30 ppm	10 pF	-40°C~+85°C
R2016-24.000-10-1010-TR-NS1	R2016	24.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	10 pF	-10°C~+60°C
R2016-24.000-12-1010-TR-NS1	R2016	24.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	12 pF	-20°C~+75°C
R2016-24.000-18-3030-EXT-TR	R2016	24.000MHz	2.0 x 1.6mm	± 30 ppm	± 30 ppm	18 pF	-40°C~+85°C
R2016-24.000-6-1015-TR-NS1	R2016	24.000MHz	2.0 x 1.6mm	± 10 ppm	± 15 ppm	6 pF	-30°C~+85°C
R2016-24.000-7-1015-TR-NS1	R2016	24.000MHz	2.0 x 1.6mm	± 10 ppm	± 15 ppm	7 pF	-30°C~+85°C
R2016-24.000-8-1010-TR-NS1	R2016	24.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	8 pF	-10°C~+70°C
R2016-24.000-9-1010-EXT-TR	R2016	24.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	9 pF	-40°C~+85°C
R2016-25.000-12-F-3030-EXT-TR	R2016	25.000MHz	2.0 x 1.6mm	± 30 ppm	± 30 ppm	12 pF	-40°C~+85°C
R2016-25.000-16-F-2525-EXT-TR	R2016	25.000MHz	2.0 x 1.6mm	± 25 ppm	± 25 ppm	16 pF	-40°C~+85°C
R2016-25.000-18-F-3030-TR-NS1	R2016	25.000MHz	2.0 x 1.6mm	± 30 ppm	± 30 ppm	18 pF	-20°C~+70°C
R2016-25.000-20-F-1515-EXT-TR	R2016	25.000MHz	2.0 x 1.6mm	± 15 ppm	± 15 ppm	20 pF	-40°C~+85°C
R2016-26.000-10-F-1010-TR	R2016	26.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	10 pF	-10°C~+60°C
R2016-26.000-6-F-1010-TR	R2016	26.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	6 pF	-10°C~+60°C
R2016-26.000-8-F-1010-TR-NS1	R2016	26.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	8 pF	-20°C~+70°C
R2016-26.000-9-F-1010-TR-NS5	R2016	26.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	9 pF	-20°C~+85°C
R2016-27.000-10-F-2020-EXT-TR	R2016	27.000MHz	2.0 x 1.6mm	± 20 ppm	± 20 ppm	10 pF	-40°C~+85°C
R2016-27.000-8-F-1010-EXT-TR	R2016	27.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	8 pF	-40°C~+85°C
R2016-27.120-10-F-1010-TR-NS4	R2016	27.120MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	10 pF	-20°C~+75°C
R2016-27.120-8-F-1010-EXT-TR	R2016	27.120MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	8 pF	-40°C~+85°C
R2016-30.000-8-F-1010-TR-NS1	R2016	30.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	8 pF	-25°C~+70°C
R2016-32.000-10-F-1020-EXT-TR	R2016	32.000MHz	2.0 x 1.6mm	± 10 ppm	± 20 ppm	10 pF	-40°C~+85°C
R2016-32.000-12-F-1010-EXT-TR	R2016	32.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	12 pF	-40°C~+85°C
R2016-32.000-16-F-1010-TR	R2016	32.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	16 pF	-10°C~+60°C
R2016-32.000-8-F-1010-EXT-TR	R2016	32.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	8 pF	-40°C~+85°C
R2016-32.000-9-F-1025-EXT-TR	R2016	32.000MHz	2.0 x 1.6mm	± 10 ppm	± 25 ppm	9 pF	-40°C~+85°C
R2016-32.000-10-F-1010-TR-B1B_RevB	R2016	32.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	10 pF	-30°C~+70°C
R2016-38.400-10-F-1010-TR	R2016	38.400MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	10 pF	-10°C~+60°C
R2016-38.400-7-F-1010-TR	R2016	38.400MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	7 pF	-10°C~+60°C
R2016-38.400-8-F-1012-EXT-TR	R2016	38.400MHz	2.0 x 1.6mm	± 10 ppm	± 12 ppm	8 pF	-40°C~+85°C
R2016-38.400-9-F-1010-TR-NS1	R2016	38.400MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	9 pF	-30°C~+85°C
R2016-40.000-6-F-1010-TR-NS1	R2016	40.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	6 pF	-10°C~+60°C
R2016-40.000-8-F-1515-TR-NS1	R2016	40.000MHz	2.0 x 1.6mm	± 15 ppm	± 15 ppm	8 pF	-30°C~+85°C
R2016-48.000-18-F-1010-TR	R2016	48.000MHz	2.0 x 1.6mm	± 10 ppm	± 10 ppm	18 pF	-10°C~+60°C
R2016-48.000-6-F-5050-TR	R2016	48.000MHz	2.0 x 1.6mm	± 50 ppm	± 50 ppm	6 pF	-10°C~+60°C
R2016-48.000-7-F-0715-TR-NS1	R2016	48.000MHz	2.0 x 1.6mm	± 7 ppm	± 15 ppm	7 pF	-30°C~+95°C
R2016-48.000-8-F-1515-EXT-TR	R2016	48.000MHz	2.0 x 1.6mm	± 15 ppm	± 15 ppm	8 pF	-40°C~+85°C
