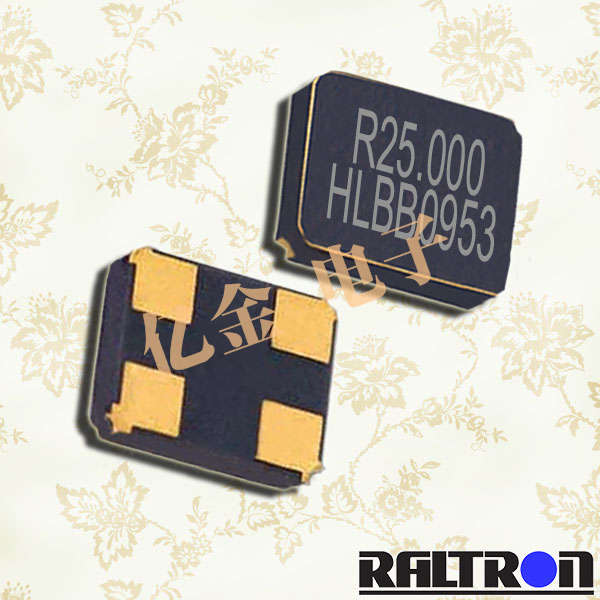

Raltron晶振,H10S-16.384-18-1030-TR,6G無線應用晶振

頻率：16.384MHz
尺寸：6.0×3.5mm
應　用： Raltron晶振,美國進口晶振,H10S石英晶體,H10S-16.384-18-1030-TR晶振,石英貼片晶振,6035mm晶振,頻率16.384MHz,負載18pF,頻率穩定性30ppm,工作溫度-10~60°C,高精度晶振,無鉛環保晶振,6G無線應用晶振,攝像機晶振,網站終...

Raltron晶振,H10S-16.384-18-1030-TR,6G無線應用晶振,Raltron晶振,美國進口晶振,H10S石英晶體,H10S-16.384-18-1030-TR晶振,石英貼片晶振,6035mm晶振,頻率16.384MHz,負載18pF,頻率穩定性30ppm,工作溫度-10~60°C,高精度晶振,無鉛環保晶振,6G無線應用晶振,攝像機晶振,網站終端晶振,通訊設備晶振.
Raltron晶振,H10S-16.384-18-1030-TR,6G無線應用晶振特點：
•低調

•精度高，穩定性好

•寬頻率范圍從8.00兆赫到200.00兆赫

Raltron晶振,H10S-16.384-18-1030-TR,6G無線應用晶振規格表

參數	數值
標準頻率	16.384MHz
頻率容差	10ppm
頻率穩定性	30ppm
工作溫度	−10~+60°C
工作溫度	−40~+85°C
老化	±2ppm
負載	18pF
并聯電容	7pF Max
激勵功率	1.0 ± 0.2 mA Typ
等效串聯電阻	130 OHMS MAX
等效串聯電阻	130 OHMS MAX
回流焊條件	SEE REFLOW SOLDER PROFILE

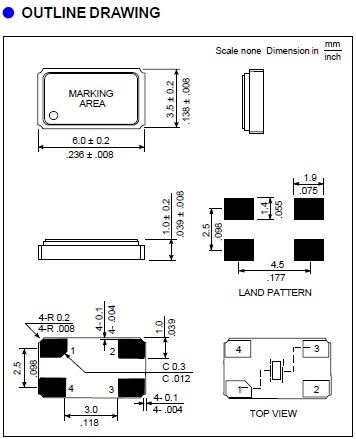

Raltron晶振,H10S-16.384-18-1030-TR,6G無線應用晶振尺寸圖

Raltron原廠編碼	型號	頻率	尺寸	頻率偏差	頻率穩定度	負載	工作溫度
H10S-13.560-10-1010-TR	H10S	13.560MHz	6.0 x 3.5mm	± 10 ppm	± 10 ppm	10 pF	-10°C~+60°C
H10S-14.7456-16-1020-TR	H10S	14.7456MHz	6.0 x 3.5mm	± 10 ppm	± 20 ppm	16 pF	-10°C~+60°C
H10S-16.000-20-3050-EXT-TR	H10S	16.000MHz	6.0 x 3.5mm	± 30 ppm	± 50 ppm	20 pF	-40°C~+85°C
H10S-16.384-18-1030-TR	H10S	16.384MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-10°C~+60°C
H10S-18.432-18-EXT-TR	H10S	18.432MHz	6.0 x 3.5mm	± 100 ppm	± 100 ppm	18 pF	-40°C~+85°C
H10S-20.000-18-1010-TR	H10S	20.000MHz	6.0 x 3.5mm	± 10 ppm	± 10 ppm	18 pF	-10°C~+60°C
H10S-24.000-18-2020-EXT-TR	H10S	24.000MHz	6.0 x 3.5mm	± 20 ppm	± 20 ppm	18 pF	-40°C~+85°C
H10S-25.000-18-F-EXT-TR	H10S	25.000MHz	6.0 x 3.5mm	± 100 ppm	± 100 ppm	18 pF	-40°C~+85°C
H10S-26.000-18-F-1030-EXT-TR	H10S	26.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-27.120-18-F-3050-TR	H10S	27.120MHz	6.0 x 3.5mm	± 30 ppm	± 50 ppm	18 pF	-10°C~+60°C
H10S-28.000-18-F-1030-EXT-TR	H10S	28.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-29.000-18-F-1030-EXT-TR	H10S	29.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-30.000-18-F-1030-EXT-TR	H10S	30.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-31.000-18-F-1030-EXT-TR	H10S	31.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-32.000-18-F-1030-EXT-TR	H10S	32.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-33.000-18-F-1030-EXT-TR	H10S	33.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-34.000-18-F-1030-EXT-TR	H10S	34.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-35.000-18-F-1030-EXT-TR	H10S	35.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-36.000-18-F-1030-EXT-TR	H10S	36.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
H10S-37.000-18-F-1030-EXT-TR	H10S	37.000MHz	6.0 x 3.5mm	± 10 ppm	± 30 ppm	18 pF	-40°C~+85°C
