首頁歐美晶振微晶晶振VCXO2H-V-B-80.000MHz-T3|VCXO Clock Oscillator

VCXO2H-V-B-80.000MHz-T3|VCXO Clock Oscillator

  • 頻率：80MHz
  • 尺寸：5.0×3.2mm
  • 應　用： 歐美進口晶振,Micro晶振,VCXO2H有源晶振,壓控晶體振蕩器,VCXO2H-V-B-80.000MHz-T3晶振,VCXO時鐘振蕩器,5032mm晶振,四腳貼片晶振,SMD晶體,頻率80MHz,電壓3.3V,工作溫度-40~85°C,頻率容差130ppm,高穩定性晶振,高抗沖擊...
  • RoHS RoHS2


VCXO2H-V-B-80.000MHz-T3|VCXO Clock Oscillator,歐美進口晶振,Micro晶振,VCXO2H有源晶振,壓控晶體振蕩器,VCXO2H-V-B-80.000MHz-T3晶振,VCXO時鐘振蕩器,5032mm晶振,四腳貼片晶振,SMD晶體,頻率80MHz,電壓3.3V,工作溫度-40~85°C,頻率容差130ppm,高穩定性晶振,高抗沖擊晶振,無鉛環保晶振,微處理器晶振,測試與測量設備晶振,FPGA時鐘晶振,有線通訊晶振.
VCXO2H-V-B-80.000MHz-T3|VCXO Clock Oscillator特點：
•卓越的密封與金-錫預制
•高穩定性，低老化，密封保證
•寬頻率牽引范圍APR
•非常快的啟動
•在基本模式下運行
•高抗沖擊和抗振動
•100%不含鉛，符合RoHS標準

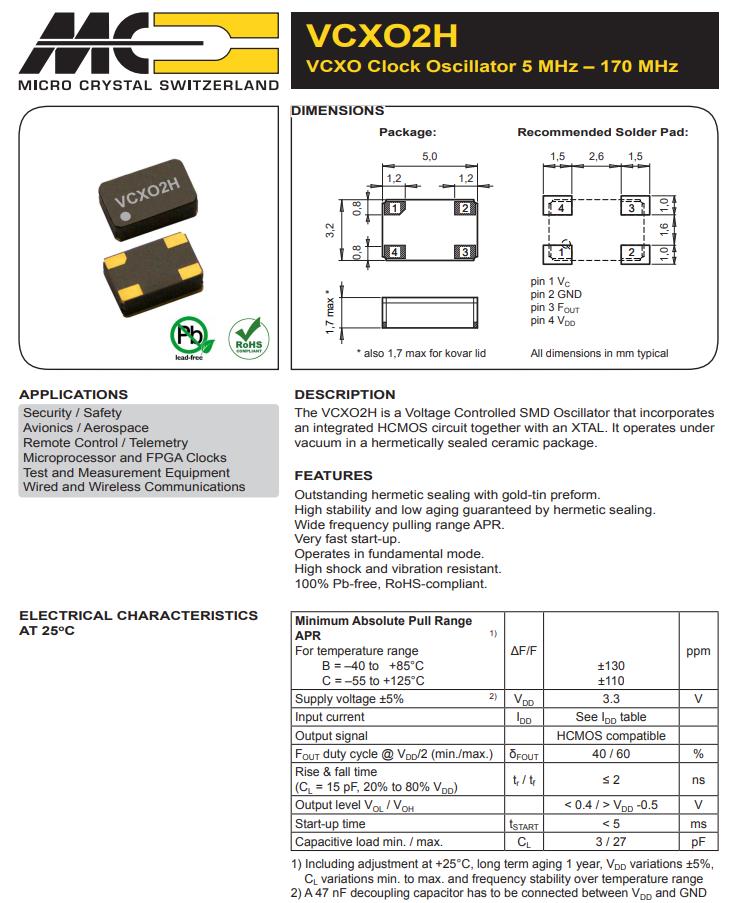

VCXO2H-V-B-80.000MHz-T3|VCXO Clock Oscillator規格表
Standard Frequency FL 80 MHz
Supply voltage ±5% VDD 3.3 V
Frequency tolerance ΔF/F ±130 ppm
Input Current IDD
< 10
 mA
Output signal   HCMOS  compatible
FOUT duty cycle @ VDD/2 (min./max.) δFOUT 40 / 60 %
Rise & fall time
(CL = 15 pF, 20% to 80% VDD)
 tr / tf ≤ 2 ns
Output level VOL / VOH

< 0.4 / > VDD -0.5
 V
Start-up time tSTART < 5 ms
Capacitive load min. / max
CL
3 / 27
 pF
Storage temperature range T_stg −65~+125 °C
Operating temperature range T_use −40~+85 °C
Shock resistance   5000 g, 0.3 ms, ½ sine
Vibration resistance   20 g / 10–2000 Hz
Lid
Ceramic Lid

Terminations (Option )
SnAgCu solder dipped pads (T3)

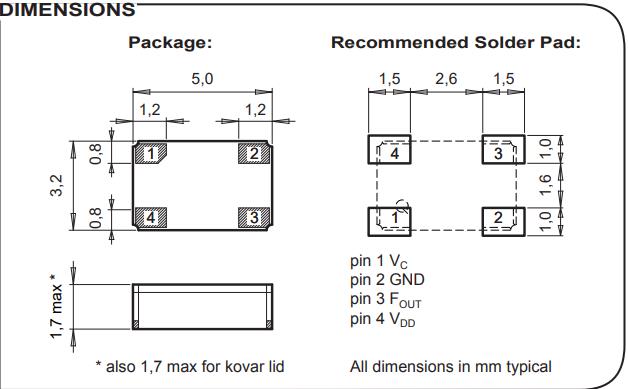

VCXO2H-V-B-80.000MHz-T3|VCXO Clock Oscillator尺寸圖
