首頁歐美晶振微晶晶振MCSO6FKVT–C-40.000MHz-E/D,6G無線網絡晶振,3522mm貼片晶振

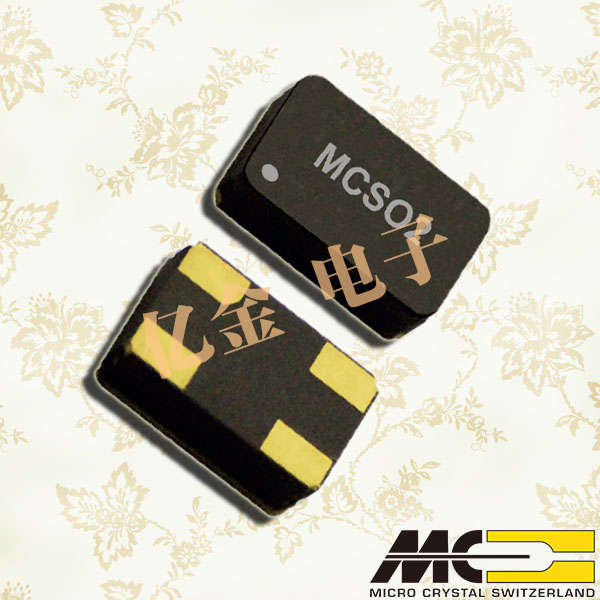

MCSO6FKVT–C-40.000MHz-E/D,6G無線網絡晶振,3522mm貼片晶振

頻率：40MHz
尺寸：3.5×2.2mm
應　用： 瑞士微晶晶振,MCSO6有源晶振,MCSO6FKVT–C-40.000MHz-E/D晶振,3522mm貼片晶振,石英晶體振蕩器,頻率40MHz,電壓3.3V,頻率穩定性50ppm,工作溫度-55~125°C,耐高溫晶振,抗沖擊晶振,6G無線網絡晶振,航空電子晶振,遠程控制應...

MCSO6FKVT–C-40.000MHz-E/D,6G無線網絡晶振,3522mm貼片晶振,瑞士微晶晶振,MCSO6有源晶振,MCSO6FKVT–C-40.000MHz-E/D晶振,3522mm貼片晶振,石英晶體振蕩器,頻率40MHz,電壓3.3V,頻率穩定性50ppm,工作溫度-55~125°C,耐高溫晶振,抗沖擊晶振,6G無線網絡晶振,航空電子晶振,遠程控制應用晶振,測試和測量設備晶振,微處理器晶振.
MCSO6FKVT–C-40.000MHz-E/D,6G無線網絡晶振,3522mm貼片晶振特點：
-金錫預制件的出色密封
-密封保證了高穩定性和低老化
-啟動非常迅速
-適用于擴展的工作溫度范圍
-在基本模式下運行
-高抗沖擊和振動
-100%無鉛，符合RoHS標準

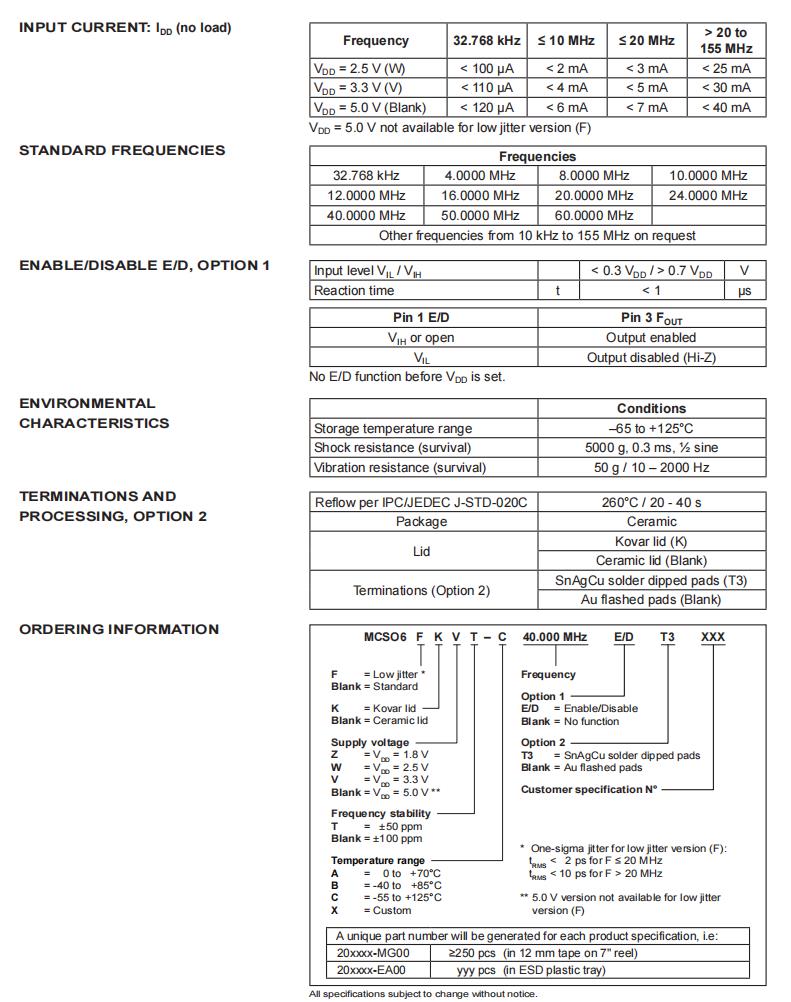

MCSO6FKVT–C-40.000MHz-E/D,6G無線網絡晶振,3522mm貼片晶振規格表

標準頻率	FL	40	MHz
電源電壓5%	VDD	3.3	V
頻率穩定性	ΔF/F	±50	ppm
輸入電流	IDD	< 30	mA
儲存溫度	T_stg	−65~+125	°C
工作溫度	T_use	−55~+125	°C
輸出信號		HCMOS	μW
占空比（最大/最?。?/span>	δFOUT	40 / 60	%
上升下降時間	tr / tf	≤ 7	ns
啟動時間	tSTART	< 5	ms
老化第一年	ΔF/F	±3	ppm

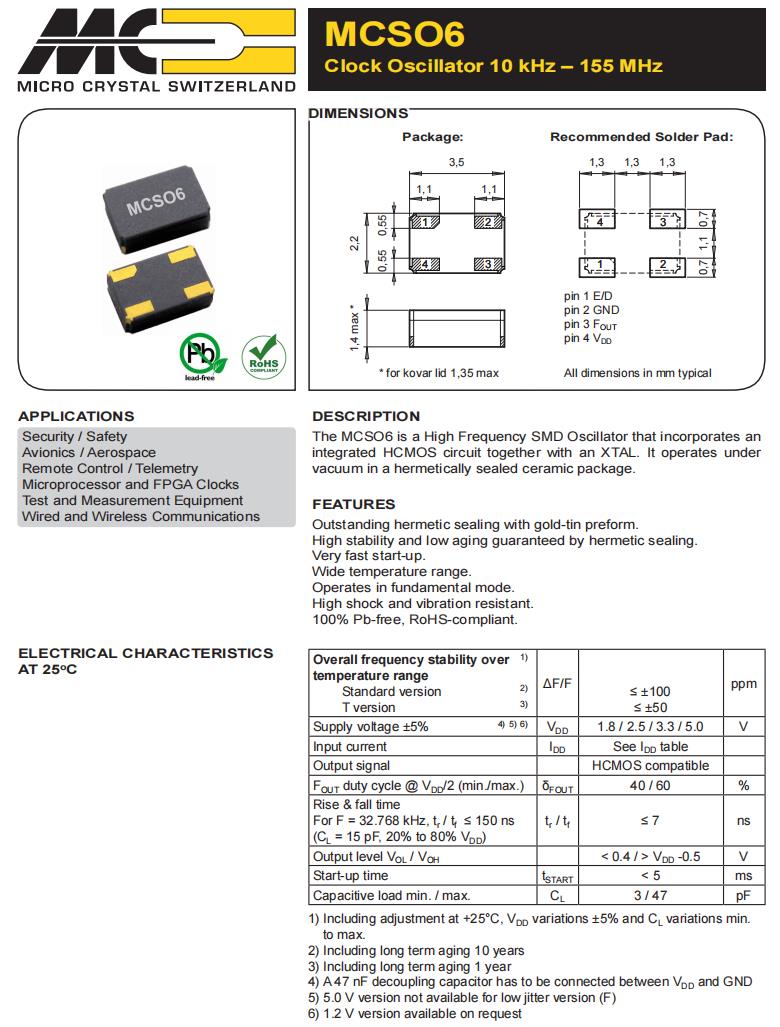

MCSO6FKVT–C-40.000MHz-E/D,6G無線網絡晶振,3522mm貼片晶振尺寸圖

制造商零件編號	制造商	描述	產品類型
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	Crystals
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
