更多>>MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振
- 頻率：32.768KHz
- 尺寸：3.5×2.2mm
- 應 用： Micro晶振,MCSO6EU石英水晶振蕩子,有源晶振,MCSO6EU-V-E-32.768kHz-E/D-T3晶振,3522mm晶振,四腳貼片晶振,石英晶體振蕩器,SMD晶振,頻率32.768KHz,電壓3.3V,工作溫度-55~150°C,頻率容差150ppm,耐高溫晶振,高抗沖擊晶振...
-
-
MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振,Micro晶振,MCSO6EU石英水晶振蕩子,有源晶振,MCSO6EU-V-E-32.768kHz-E/D-T3晶振,3522mm晶振,四腳貼片晶振,石英晶體振蕩器,SMD晶振,頻率32.768KHz,電壓3.3V,工作溫度-55~150°C,頻率容差150ppm,耐高溫晶振,高抗沖擊晶振,高抗振動晶振,航空電子晶振,鉆井設備晶振,地?zé)嵩O(shè)備晶振,遙測應用晶振.
MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振特點：
•卓越的密封與金-錫預制
•高穩定性，低老化，密封保證
•頻率穩定保證1000小時在TMAX
•非?？斓膯?dòng)
•在基本模式下運行
•高抗沖擊和抗振動
•100%不含鉛，符合RoHS標準

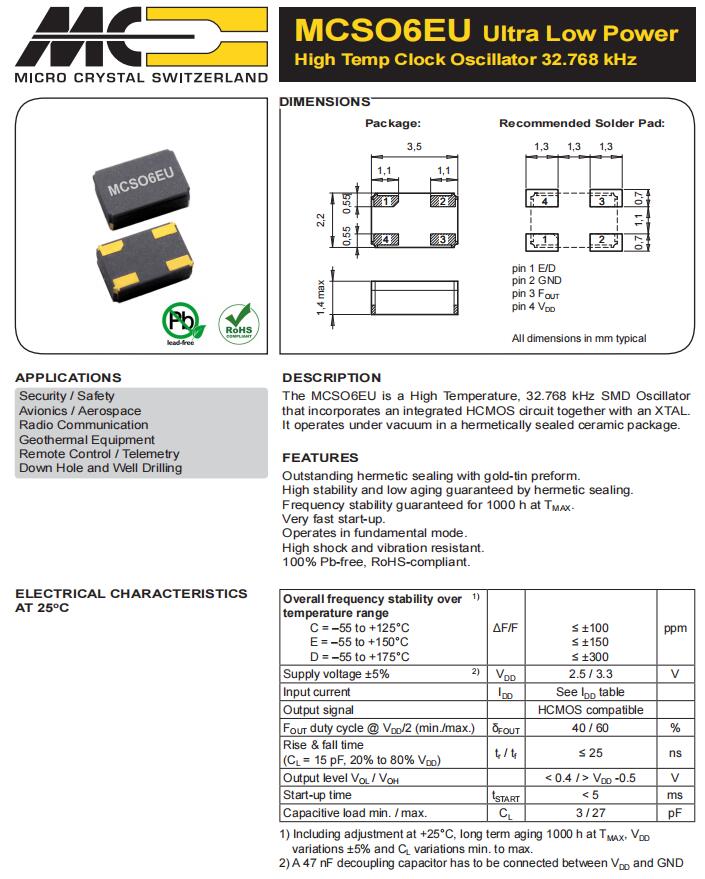

MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振規格表
| Standard Frequency | FL | 32.768 | KHz |
| Supply voltage ±5% | VDD | 3.3 | V |
| Frequency tolerance | ΔF/F | ±150 | ppm |
| Input Current | IDD |
< 20 µA
|
µA |
| Output signal | HCMOS compatible | ||
| FOUT duty cycle @ VDD/2 (min./max.) | δFOUT | 40 / 60 | % |
|
Rise & fall time,≤ 20 MHz For F = 32.768 kHz, tr / tf ≤ 150 ns(CL = 15 pF, 20% to 80% VDD) |
tr / tf | ≤ 25 | ns |
| Output level VOL / VOH | < 0.4 / > VDD -0.5 | V | |
| Start-up time | tSTART | < 5 | ms |
| Capacitive load min. / max | CL | 3 / 27 | pF |
| Storage temperature range | T_stg | −65~+125 | °C |
| Operating temperature range | T_use | −55~+150 | °C |
| Shock resistance | 1000 g, 0.3 ms, ½ sine | ||
| Vibration resistance | 80 g / 10–2000 Hz | ||
| Lid |
Ceramic lid
|
||
| Terminations (Option ) |
SnAgCu solder dipped pads (T3)
|
.jpg)

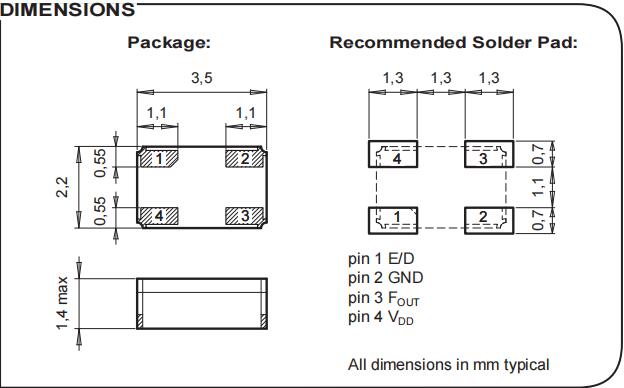

MCSO6EU-V-E-32.768kHz-E/D-T3|Micro超低功耗晶振尺寸圖
.jpg)
