首頁歐美晶振微晶晶振CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI|2012四腳貼片晶振|6G光纖通道晶振

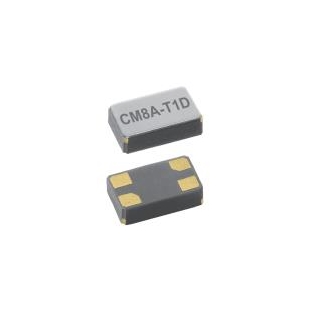

CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI|2012四腳貼片晶振|6G光纖通道晶振

頻率：27MHz
尺寸：2.0×1.2mm
應　用： 瑞士微晶晶振,CM8A-T1D石英晶體諧振器,CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI晶振,2012四腳貼片晶振,頻率27MHz,負載16pf,頻率穩定性50ppm,工作溫度-40~125°C,低老化振,高可靠性晶振,6G光纖通道晶振,醫用植入式晶振,...

CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI|2012四腳貼片晶振|6G光纖通道晶振,瑞士微晶晶振,CM8A-T1D石英晶體諧振器,CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI晶振,2012四腳貼片晶振,頻率27MHz,負載16pf,頻率穩定性50ppm,工作溫度-40~125°C,低老化振,高可靠性晶振,6G光纖通道晶振,醫用植入式晶振,無線電通信設備晶振,家用保健和醫療設備晶振.

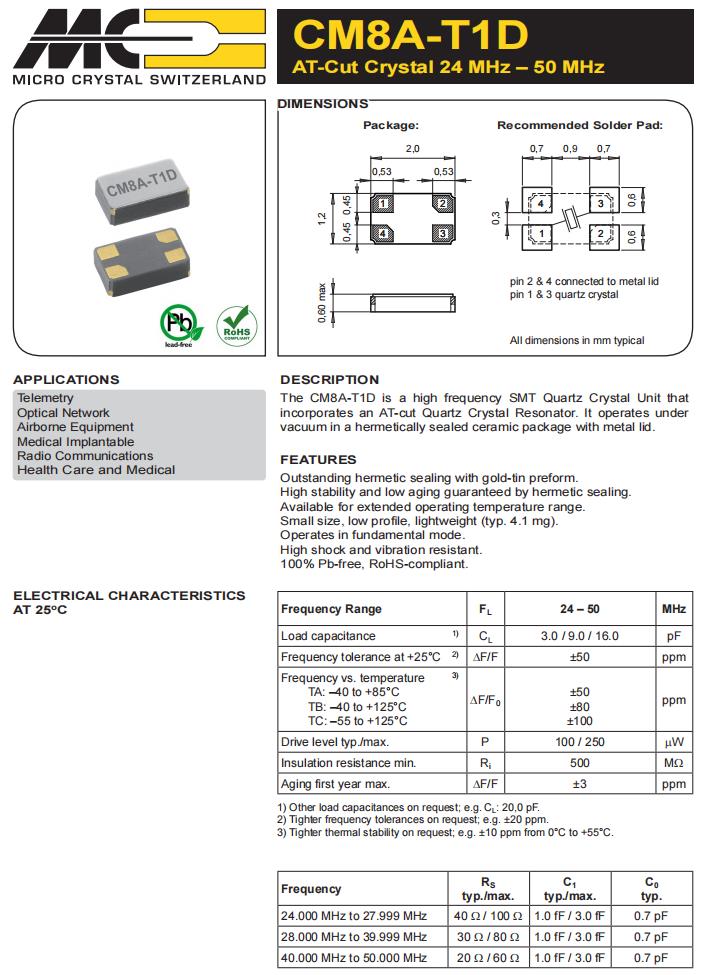

CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI|2012四腳貼片晶振|6G光纖通道晶振特點：
-金錫預制件的出色密封
-密封保證了高穩定性和低老化
-適用于擴展的工作溫度范圍
-小尺寸、低姿態、重量輕(典型4.1毫克)
-在基本模式下運行
-高抗沖擊和振動
-100%無鉛，符合RoHS標準

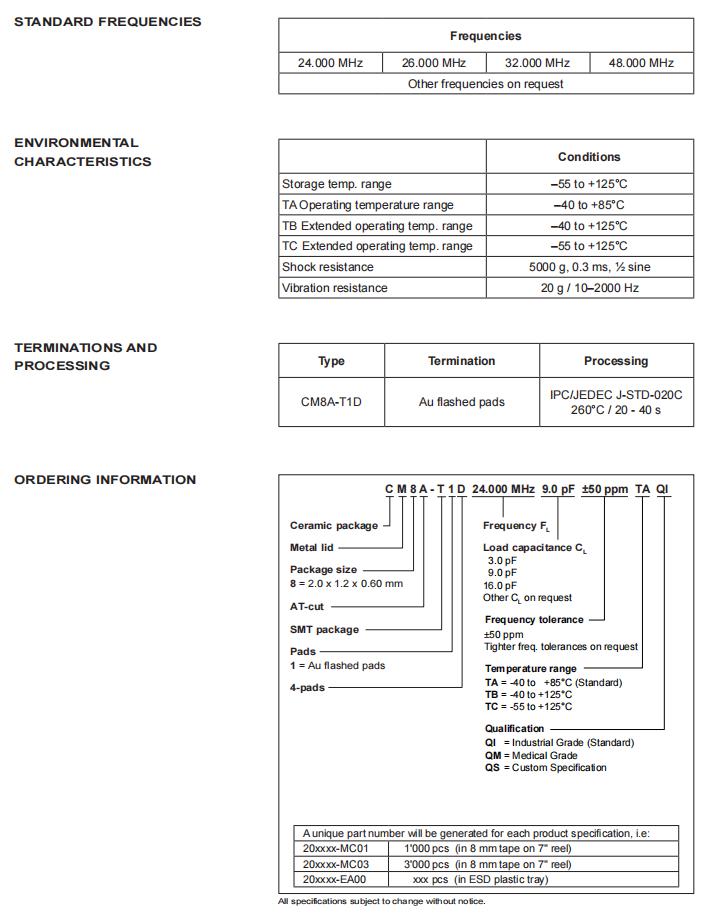

CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI|2012四腳貼片晶振|6G光纖通道晶振規格表

標準頻率	FL	27	MHz
負載	CL	16	pF
頻率容差	ΔF/F	±50	ppm
頻率溫度穩定性	ΔF/F0	±50	ppm
儲存溫度	T_stg	−55~+125	°C
工作溫度	T_use	−40~+125	°C
驅動電平典型/最大	P	100/250	μW
最小絕緣電阻	Ri	500	MΩ
老化第一年	ΔF/F	±3	ppm

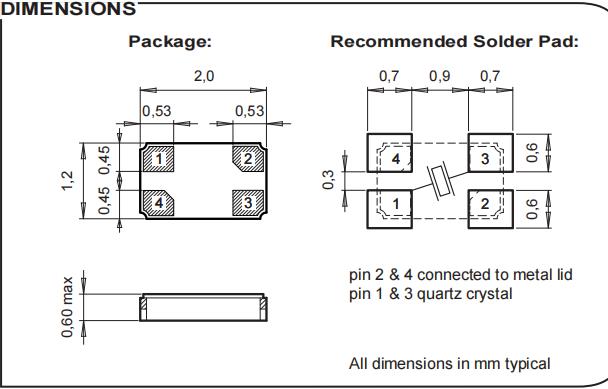

CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI|2012四腳貼片晶振|6G光纖通道晶振尺寸圖

制造商零件編號	制造商	描述	產品類型
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	Crystals
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro 晶振	晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
