CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC,4115mm,6G模塊晶振
- 頻率：32.768KHz
- 尺寸：4.1×1.5mm
- 應 用： 歐美微晶晶振,型號CC5V-T1A,是一個低頻SMT石英晶體單元,包含一個音叉石英晶體諧振器,編碼CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC,尺寸4115mm,工作溫度-40~85°C,適用于惡劣環境的成熟產品,具有高抗沖擊和抗振動性,工業應...
-
-
.jpg)

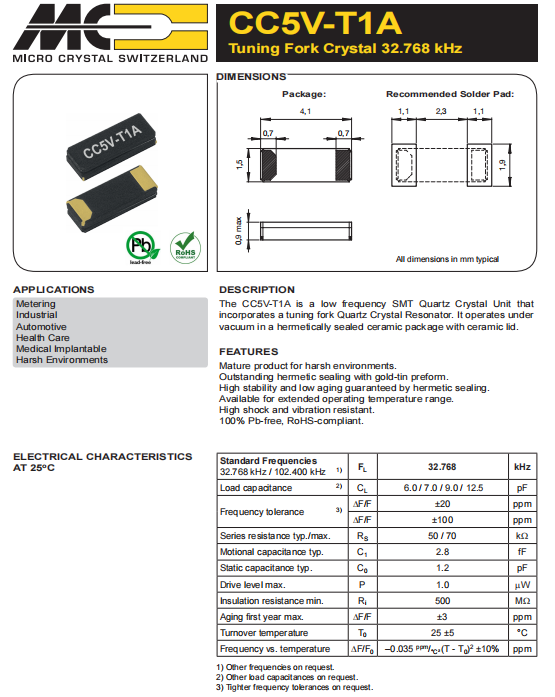

CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC,4115mm,6G模塊晶振,歐美微晶晶振,型號CC5V-T1A,是一個低頻SMT石英晶體單元,包含一個音叉石英晶體諧振器,編碼CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC,頻率32.768KHz,負載7pf,尺寸4115mm,工作溫度-40~85°C,適用于惡劣環境的成熟產品,具有高抗沖擊和抗振動性,6G模塊晶振,工業應用晶振,測試與測量設備晶振,汽車電子設備晶振.
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC,4115mm,6G模塊晶振特點：
適用于惡劣環境的成熟產品
卓越的密封與金-錫預制
高穩定性，低老化，密封保證
可擴展工作溫度范圍高抗沖擊和抗振動
100%不含鉛，符合rohs標準
CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC,4115mm,6G模塊晶振規格表
| 標準頻率 | FL | 32.768 | KHz |
| 負載 | CL | 7 | pF |
| 頻率容差 | ΔF/F | ±20 | ppm |
| 串聯電阻最大值 | RS | 50/70 | kΩ |
| 儲存溫度 | T_stg | −55~+125 | °C |
| 工作溫度 | T_use | −40~+85 | °C |
| 最大驅動電平 | P | 1.0 | μW |
| 最小絕緣電阻 |
Ri
|
500 |
MΩ
|
| 老化第一年 | ΔF/F | ±3 | ppm |
.jpg)

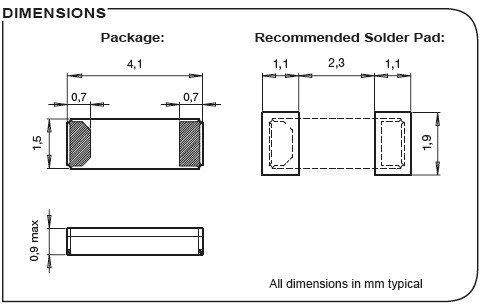

CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC,4115mm,6G模塊晶振尺寸圖
| 制造商零件編號 | 制造商 | 描述 |
| MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM8V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C |
| MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 |
| CC7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF 100 PPM -55/+125C |
| CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C |
| CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-7pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C |
| CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM LOW ESR |
| CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM7V-T1A-32.768k-7pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 |
| CM7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 |
| CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 |
| CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C |
| CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C |
| CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C |
| CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C |
| CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C |
| CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C |
| CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM 0.3mm |
| CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM 0.3mm |
