首頁歐美晶振 Microchip晶振DSC1102CI5-150.0000T-Microchip品牌-6GWIFI應用晶振

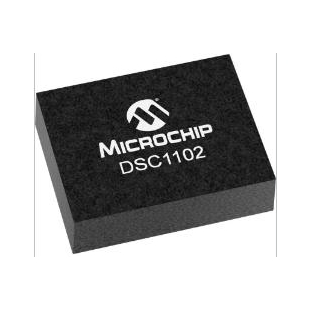

DSC1102CI5-150.0000T-Microchip品牌-6GWIFI應用晶振

頻率：150MHz
尺寸：3.2×2.5mm
應　用： Microchip晶振,DSC1102差分晶振,進口有源晶振,DSC1102CI5-150.0000T晶振,六腳貼片晶振,3225mm晶振,LVPECL輸出晶振,頻率150MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性10ppm,抗沖擊晶振,高可靠性晶振,低功耗晶振,6GWIF...

DSC1102CI5-150.0000T-Microchip品牌-6GWIFI應用晶振,Microchip晶振,DSC1102差分晶振,進口有源晶振,DSC1102CI5-150.0000T晶振,六腳貼片晶振,3225mm晶振,LVPECL輸出晶振,頻率150MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性10ppm,抗沖擊晶振,高可靠性晶振,低功耗晶振,6GWIFI應用晶振,光纖通道晶振,嵌入式設備晶振,數字音頻廣播晶振.

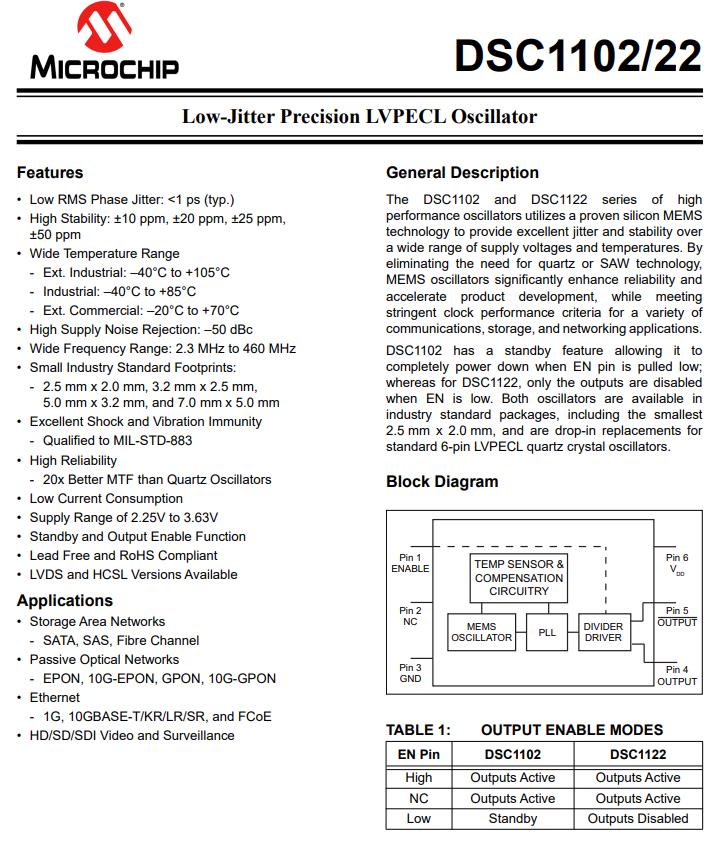

DSC1102CI5-150.0000T-Microchip品牌-6GWIFI應用晶振特點：
•低RMS相位抖動:<1 ps(類型)
•高穩定性:±10 ppm，±20 ppm，±25 ppm，±50 ppm
•寬溫度范圍:
-Ext.工業:- 40°C至+105°C
-工業:- 40℃~ +85℃
-商用:- 20℃~ +70℃
•高電源噪聲抑制:-50 dBc
•寬頻率范圍:2.3 MHz至460 MHz
•小的行業標準足跡
- 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mmX 3.2 mm和7.0 mm X 5.0 mm
•卓越的抗沖擊和抗振動能力
-符合MIL-STD-883標準
•高可靠性
- MTF比石英振蕩器好20倍
•低電流消耗
•電源范圍2.25至3.63V
•待機和輸出使能功能
•無鉛，符合RoHS標準
•LVDS和HCSL版本可用

DSC1102CI5-150.0000T-Microchip品牌-6GWIFI應用晶振規格表

項目	規格說明	條件
額定頻率	150MHz	請聯系我們以便獲取其它可用頻率的相關信息
電源電壓	3.3V
儲存溫度	-55℃~+150℃	裸存
工作溫度	-40℃~ +85℃
頻率穩定度	±10ppm	包括由初始公差、溫度和電源電壓引起的頻率變化
老化	±5ppm	1 year @ +25°C
電流	58mA Max	Output Enabled, RL = 50Ω
負載	15pf
輸出邏輯電平低（Vol）	VDD–1.55V Max	Output logic low
輸出邏輯電平高（Voh）	VDD –1.08V Min	Output logic high, RL = 50Ω
輸出上升下降時間	2ns Max	20%/80% CL=15pF
占空比	48%~52%
輸入邏輯電平高（VIH）	0.75×VDD Min	Input logic high
輸入邏輯電平低（VIL）	0.25x VDD Max	Input logic low
起始時間	5 ms Max	T = +25°C
周期抖動	2.5psRMS	-
集成相位噪聲	2psRMS	12 kHz to 20 MHz @ 156.25 MHz

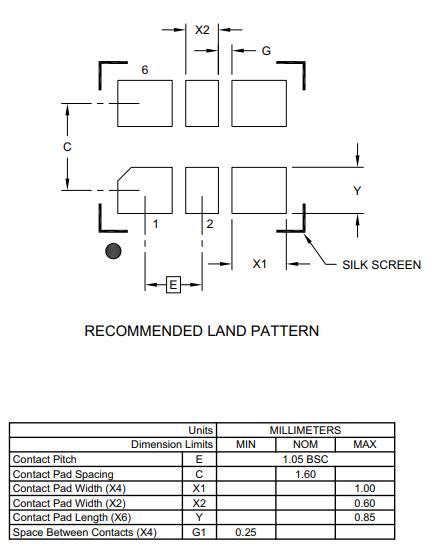

DSC1102CI5-150.0000T-Microchip品牌-6GWIFI應用晶振尺寸圖

原廠代碼	晶振品牌	型號	頻率	電壓	尺寸
DSC1121CM2-040.0000	Microchip Technology	DSC1121	40MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DM1-033.3333	Microchip Technology	DSC1121	33.3333MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121BM1-024.0000	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-080.0000	Microchip Technology	DSC1121	80MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121CI2-050.0000	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121BI2-025.0007	Microchip Technology	DSC1121	25.0007MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121AE2-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121CM1-024.0000	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM1-050.0000	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DI2-125.0000	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121AI2-125.0000	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121CI2-066.6667	Microchip Technology	DSC1121	66.6667MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-024.5760	Microchip Technology	DSC1121	24.576MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-066.6660	Microchip Technology	DSC1121	66.666MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-020.0000	Microchip Technology	DSC1121	20MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-024.0000	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DL2-024.7500T	Microchip Technology	DSC1121	24.75MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DL2-024.7500T	Microchip Technology	DSC1121	24.75MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DL2-024.7500T	Microchip Technology	DSC1121	24.75MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DL2-032.0000T	Microchip Technology	DSC1121	32MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DL2-032.0000T	Microchip Technology	DSC1121	32MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DL2-032.0000T	Microchip Technology	DSC1121	32MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121AI2-020.0000	Microchip Technology	DSC1121	20MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121BI2-012.2880	Microchip Technology	DSC1121	12.288MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121DI1-026.6000	Microchip Technology	DSC1121	26.6MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121CE1-025.0012	Microchip Technology	DSC1121	25.0012MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CE5-012.2880	Microchip Technology	DSC1121	12.288MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CE5-024.5670	Microchip Technology	DSC1121	24.567MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DI5-034.3680	Microchip Technology	DSC1121	34.368MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121CE1-133.3333	Microchip Technology	DSC1121	133.3333MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121BI2-100.0000T	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-100.0000T	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-100.0000T	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121AI2-148.5000T	Microchip Technology	DSC1121	148.5MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-148.5000T	Microchip Technology	DSC1121	148.5MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-148.5000T	Microchip Technology	DSC1121	148.5MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-004.0000	Microchip Technology	DSC1121	4MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121BE2-100.0000T	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BE2-100.0000	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121DI2-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI2-011.0590	Microchip Technology	DSC1121	11.059MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI2-022.5792	Microchip Technology	DSC1121	22.5792MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI2-024.5760	Microchip Technology	DSC1121	24.576MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI2-027.0000	Microchip Technology	DSC1121	27MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121CI2-010.0000T	Microchip Technology	DSC1121	10MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-012.0000T	Microchip Technology	DSC1121	12MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-012.2880T	Microchip Technology	DSC1121	12.288MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-013.0000T	Microchip Technology	DSC1121	13MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-020.0000T	Microchip Technology	DSC1121	20MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-024.0000T	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-024.5760T	Microchip Technology	DSC1121	24.576MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-027.0000T	Microchip Technology	DSC1121	27MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-030.0000T	Microchip Technology	DSC1121	30MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-048.0000T	Microchip Technology	DSC1121	48MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-050.0000T	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-051.8400T	Microchip Technology	DSC1121	51.84MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-060.0000T	Microchip Technology	DSC1121	60MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-066.6660T	Microchip Technology	DSC1121	66.666MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-031.2500	Microchip Technology	DSC1121	31.25MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-014.7456	Microchip Technology	DSC1121	14.7456MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-014.7456T	Microchip Technology	DSC1121	14.7456MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-066.6667T	Microchip Technology	DSC1121	66.6667MHz	2.25 V ~ 3.6V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121BI2-013.0000T	Microchip Technology	DSC1121	13MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121AI2-024.0000T	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-029.4912T	Microchip Technology	DSC1121	29.4912MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-048.0000T	Microchip Technology	DSC1121	48MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-050.0000T	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121BI2-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-025.0007T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-048.0000T	Microchip Technology	DSC1121	48MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-050.0000T	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121AI2-050.0000	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121NI2-018.4320	Microchip Technology	DSC1121	18.432MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-020.0000T	Microchip Technology	DSC1121	20MHz	2.25 V ~ 3.6V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121BI2-012.2880T	Microchip Technology	DSC1121	12.288MHz	2.25 V ~ 3.6V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-050.0000	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121CE1-016.0000T	Microchip Technology	DSC1121	16MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CE1-025.0012T	Microchip Technology	DSC1121	25.0012MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DI1-036.0000T	Microchip Technology	DSC1121	36MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121CE1-016.0000	Microchip Technology	DSC1121	16MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DI1-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121CE1-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DI1-026.6000T	Microchip Technology	DSC1121	26.6MHz	2.25 V ~ 3.6V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121CL2-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CL2-050.0000T	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CL2-040.0000T	Microchip Technology	DSC1121	40MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CL2-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CL2-050.0000	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CL2-024.7500	Microchip Technology	DSC1121	24.75MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI1-024.0000	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121AE2-020.0000T	Microchip Technology	DSC1121	20MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE2-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI1-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121CE2-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI1-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI1-024.0000T	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI1-024.0000T	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121AI1-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE1-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE1-024.0000	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121CE2-100.0000T	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DL2-008.0000T	Microchip Technology	DSC1121	8MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DL2-008.0000	Microchip Technology	DSC1121	8MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DL2-024.7500	Microchip Technology	DSC1121	24.75MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DL2-032.0000	Microchip Technology	DSC1121	32MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DL2-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DL2-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI5-044.0000	Microchip Technology	DSC1121	44MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI5-044.7360	Microchip Technology	DSC1121	44.736MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI1-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121CM1-027.0000	Microchip Technology	DSC1121	27MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM1-016.0000	Microchip Technology	DSC1121	16MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM1-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM1-026.5625	Microchip Technology	DSC1121	26.5625MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM1-010.0000T	Microchip Technology	DSC1121	10MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM1-016.0000T	Microchip Technology	DSC1121	16MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM1-020.0000T	Microchip Technology	DSC1121	20MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM1-024.0000T	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM1-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM1-050.0000T	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121AM1-030.0000T	Microchip Technology	DSC1121	30MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121BM1-008.0000	Microchip Technology	DSC1121	8MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM1-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM1-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM1-027.0000T	Microchip Technology	DSC1121	27MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM1-030.0000	Microchip Technology	DSC1121	30MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM1-030.0000T	Microchip Technology	DSC1121	30MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121AM1-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM1-050.0000T	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121BM1-048.0000T	Microchip Technology	DSC1121	48MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM1-050.0000T	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121CE1-075.0000T	Microchip Technology	DSC1121	75MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121BM1-048.0000	Microchip Technology	DSC1121	48MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM1-050.0000	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM1-010.0000T	Microchip Technology	DSC1121	10MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM1-010.0000	Microchip Technology	DSC1121	10MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM1-024.0000T	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121CE1-133.3333T	Microchip Technology	DSC1121	133.3333MHz	2.25 V ~ 3.6V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI1-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DI2-125.0000B	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI2-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI2-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI2-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DM1-033.3333T	Microchip Technology	DSC1121	33.3333MHz	2.25 V ~ 3.6V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121AE1-156.2500	Microchip Technology	DSC1121	156.25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE1-075.0000T	Microchip Technology	DSC1121	75MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121CI5-040.0000T	Microchip Technology	DSC1121	40MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-022.5000	Microchip Technology	DSC1121	22.5MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-040.0000	Microchip Technology	DSC1121	40MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-045.0000	Microchip Technology	DSC1121	45MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121AE1-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121CI5-016.0000	Microchip Technology	DSC1121	16MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-016.0000T	Microchip Technology	DSC1121	16MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-049.1520	Microchip Technology	DSC1121	49.152MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121NL1-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121NL1-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121CI2-100.0000	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-100.0000T	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-148.5000T	Microchip Technology	DSC1121	148.5MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-168.0000	Microchip Technology	DSC1121	168MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-115.0000	Microchip Technology	DSC1121	115MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-132.0000	Microchip Technology	DSC1121	132MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI2-133.3330T	Microchip Technology	DSC1121	133.333MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DM2-003.3333T	Microchip Technology	DSC1121	3.3333MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DM2-007.3728	Microchip Technology	DSC1121	7.3728MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121AE2-075.0000T	Microchip Technology	DSC1121	75MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE2-156.2500	Microchip Technology	DSC1121	156.25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI1-125.0000	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI5-050.0000	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121BM1-100.0000T	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121AE2-156.2500T	Microchip Technology	DSC1121	156.25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121BE5-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-156.2540T	Microchip Technology	DSC1121	156.254MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-100.0000	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-156.2540	Microchip Technology	DSC1121	156.254MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121DI2-024.0000T	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI2-024.0000T	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI2-024.0000T	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121BI2-120.0000T	Microchip Technology	DSC1121	120MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-125.0037T	Microchip Technology	DSC1121	125.0037MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-150.0000T	Microchip Technology	DSC1121	150MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-125.0000	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121AI2-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-150.0000T	Microchip Technology	DSC1121	150MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-156.2540T	Microchip Technology	DSC1121	156.254MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121BI2-200.0000T	Microchip Technology	DSC1121	200MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-080.0000T	Microchip Technology	DSC1121	80MHz	2.25 V ~ 3.6V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121AI2-148.5000	Microchip Technology	DSC1121	148.5MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-150.0000	Microchip Technology	DSC1121	150MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121CL5-050.0000T	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CL5-050.0000	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CL5-024.0000T	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CL5-048.0000T	Microchip Technology	DSC1121	48MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM2-027.0000	Microchip Technology	DSC1121	27MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM2-062.2080	Microchip Technology	DSC1121	62.208MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121AL2-020.0000	Microchip Technology	DSC1121	20MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AL2-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121CM2-024.5454	Microchip Technology	DSC1121	24.5454MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM2-040.0000T	Microchip Technology	DSC1121	40MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121AM2-010.0000	Microchip Technology	DSC1121	10MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-024.0000	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-024.5760	Microchip Technology	DSC1121	24.576MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-027.0000	Microchip Technology	DSC1121	27MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-033.3330	Microchip Technology	DSC1121	33.333MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-050.0000	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-066.6660	Microchip Technology	DSC1121	66.666MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-027.0000T	Microchip Technology	DSC1121	27MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121BM2-007.3728	Microchip Technology	DSC1121	7.3728MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121AI5-125.0032	Microchip Technology	DSC1121	125.0032MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121CI2-125.0000	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121BM1-100.0000	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121CI1-050.0000	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI1-050.0000T	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121AE1-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121CM1-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM1-075.0000	Microchip Technology	DSC1121	75MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM1-075.0000T	Microchip Technology	DSC1121	75MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DM2-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121CI5-016.6667	Microchip Technology	DSC1121	16.6667MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-027.0000	Microchip Technology	DSC1121	27MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-016.6667T	Microchip Technology	DSC1121	16.6667MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-027.0000T	Microchip Technology	DSC1121	27MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121AI2-026.0000	Microchip Technology	DSC1121	26MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-026.0000T	Microchip Technology	DSC1121	26MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI5-020.0000	Microchip Technology	DSC1121	26MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI5-020.0000T	Microchip Technology	DSC1121	20MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121CI5-066.0000	Microchip Technology	DSC1121	66MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-117.0000	Microchip Technology	DSC1121	117MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-066.0000T	Microchip Technology	DSC1121	66MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-117.0000T	Microchip Technology	DSC1121	117MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121AM2-125.0000	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE5-022.5792	Microchip Technology	DSC1121	22.5792MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE5-024.5760	Microchip Technology	DSC1121	24.576MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE5-033.8688	Microchip Technology	DSC1121	33.8688MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-010.0000	Microchip Technology	DSC1121	10MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-010.0000C	Microchip Technology	DSC1121	10MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-010.0000T	Microchip Technology	DSC1121	10MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-019.4400	Microchip Technology	DSC1121	19.4MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-019.4400C	Microchip Technology	DSC1121	19.4MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-019.4400T	Microchip Technology	DSC1121	19.4MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-066.6666	Microchip Technology	DSC1121	66.6666MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-066.6666T	Microchip Technology	DSC1121	66.6666MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI5-019.4400C	Microchip Technology	DSC1121	19.44MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM1-030.0000	Microchip Technology	DSC1121	30MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-100.0000	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-100.0000T	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121BI1-075.0000	Microchip Technology	DSC1121	75MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI1-075.0000T	Microchip Technology	DSC1121	75MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-013.0000	Microchip Technology	DSC1121	13MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BL2-027.0000	Microchip Technology	DSC1121	27MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BL2-027.0000T	Microchip Technology	DSC1121	27MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BL2-050.0000	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BL2-050.0000T	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM1-008.0000T	Microchip Technology	DSC1121	8MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM1-016.0000T	Microchip Technology	DSC1121	16MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM1-027.0000	Microchip Technology	DSC1121	27MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM5-016.0000	Microchip Technology	DSC1121	16MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM5-016.0000T	Microchip Technology	DSC1121	16MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM5-075.0000	Microchip Technology	DSC1121	75MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BM5-075.0000T	Microchip Technology	DSC1121	75MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121CI5-080.0000	Microchip Technology	DSC1121	80MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-080.0000T	Microchip Technology	DSC1121	80MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-125.0000	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CI5-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CL2-033.3333	Microchip Technology	DSC1121	33.3333MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CL2-033.3333T	Microchip Technology	DSC1121	33.3333MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CL2-125.0000	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CL2-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM5-024.0000	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM5-024.0000T	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM5-040.0000	Microchip Technology	DSC1121	40MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121CM5-040.0000T	Microchip Technology	DSC1121	40MHz	2.25 V ~ 3.6 V	0.126" L x 0.098" W (3.20mm x 2.50mm)
DSC1121DI5-010.0000	Microchip Technology	DSC1121	10MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI5-010.0000T	Microchip Technology	DSC1121	10MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI5-044.0000T	Microchip Technology	DSC1121	44MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI5-125.0000	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DI5-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DL5-090.0000	Microchip Technology	DSC1121	90MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DL5-090.0000T	Microchip Technology	DSC1121	90MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DM1-050.0000	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DM1-050.0000T	Microchip Technology	DSC1121	50MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DM2-024.0000	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DM2-024.0000T	Microchip Technology	DSC1121	24MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DM2-100.0000	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DM2-100.0000T	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121DM5-005.0000	Microchip Technology	DSC1121	5MHz	2.25 V ~ 3.6 V	0.098" L x 0.079" W (2.50mm x 2.00mm)
DSC1121NE2-025.0000	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121NE2-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121NE5-020.0000	Microchip Technology	DSC1121	20MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121NE5-020.0000T	Microchip Technology	DSC1121	20MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121NE5-066.6660	Microchip Technology	DSC1121	66.666MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121NE5-066.6660T	Microchip Technology	DSC1121	66.666MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121NE5-125.0000	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121NE5-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121NI2-100.0000	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121NI2-100.0000T	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121NI2-125.0000	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121NI2-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE1-008.0000T	Microchip Technology	DSC1121	8MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE1-012.0000T	Microchip Technology	DSC1121	12MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE1-014.3182T	Microchip Technology	DSC1121	14.3182MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE1-016.0000T	Microchip Technology	DSC1121	16MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE1-016.4000T	Microchip Technology	DSC1121	16.4MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE1-024.5760T	Microchip Technology	DSC1121	24.576MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE1-156.2500T	Microchip Technology	DSC1121	156.25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE2-025.0000C	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AE2-125.0000T	Microchip Technology	DSC1121	125MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-003.6864T	Microchip Technology	DSC1121	3.6864MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-008.0000T	Microchip Technology	DSC1121	8MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-013.0000T	Microchip Technology	DSC1121	13MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-025.0006T	Microchip Technology	DSC1121	25.0006MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-062.5000T	Microchip Technology	DSC1121	62.5MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-065.5360T	Microchip Technology	DSC1121	65.536MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-100.0000T	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-120.0000T	Microchip Technology	DSC1121	120MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-125.0032T	Microchip Technology	DSC1121	125.0032MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-125.0037T	Microchip Technology	DSC1121	125.0037MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-131.0750T	Microchip Technology	DSC1121	131.075MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-156.2500T	Microchip Technology	DSC1121	156.25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-163.8400T	Microchip Technology	DSC1121	163.84MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-163.8400T-N	Microchip Technology	DSC1121	163.84MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI2-165.0000T	Microchip Technology	DSC1121	165MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI5-010.0000T	Microchip Technology	DSC1121	10MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AI5-019.4400T	Microchip Technology	DSC1121	19.44MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM1-010.0000T	Microchip Technology	DSC1121	10MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM1-024.5760T	Microchip Technology	DSC1121	24.576MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM1-033.0000T	Microchip Technology	DSC1121	33MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM1-100.0000T	Microchip Technology	DSC1121	100MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-014.7456T	Microchip Technology	DSC1121	14.7456MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-016.0000T	Microchip Technology	DSC1121	16MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-025.0000T	Microchip Technology	DSC1121	25MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121AM2-040.0000T	Microchip Technology	DSC1121	40MHz	2.25 V ~ 3.6 V	0.276" L x 0.197" W (7.00mm x 5.00mm)
DSC1121BI1-016.0000T	Microchip Technology	DSC1121	16MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI1-026.0000T	Microchip Technology	DSC1121	26MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI1-062.5000T	Microchip Technology	DSC1121	62.5MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI1-125.0038T	Microchip Technology	DSC1121	125.0038MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-008.0000T	Microchip Technology	DSC1121	8MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-010.0000T	Microchip Technology	DSC1121	10MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-040.0000T	Microchip Technology	DSC1121	40MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-066.6666T	Microchip Technology	DSC1121	66.6666MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-148.5000T	Microchip Technology	DSC1121	148.5MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-153.6000T	Microchip Technology	DSC1121	153.6MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI2-156.2539T	Microchip Technology	DSC1121	156.2539MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)
DSC1121BI5-148.3516T	Microchip Technology	DSC1121	148.3516MHz	2.25 V ~ 3.6 V	0.197" L x 0.126" W (5.00mm x 3.20mm)

公司：深圳市億金電子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://m.py519.com
地址：廣東省深圳市寶安區新安107國道旁

欧美激情国产精品日韩_国产精品91在线_精品欧美一区二区三区久久久_欧美日韩高清区

企業博客

DSC1102CI5-150.0000T-Microchip品牌-6GWIFI應用晶振

相關產品
