首頁歐美晶振 Jauch晶振JTX310|Q 0.032768-JTX310-7-20-T2-HMR-LF|32.768KHz|-40~125℃|7PF|20PPM|3215|

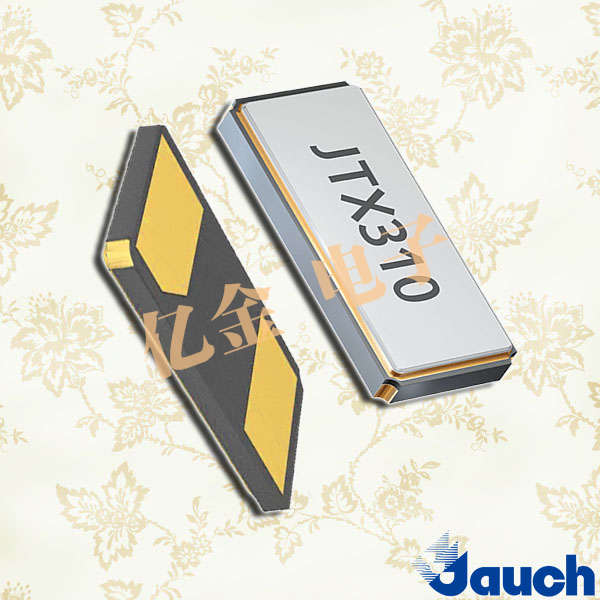

JTX310|Q 0.032768-JTX310-7-20-T2-HMR-LF|32.768KHz|-40~125℃|7PF|20PPM|3215|

頻率：32.768KHz

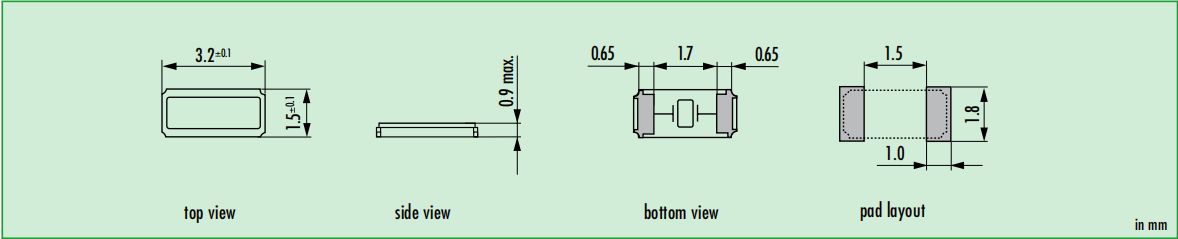

尺寸：3215mm
應　用： JTX310|Q0.032768-JTX310-7-20-T2-HMR-LF|32.768KHz|-40~125℃|7PF|20PPM|3215|，歐美進口晶振，32.768kHz，可選的額外防震版本，回流焊溫度：最大260C。n個包裝高度，最大0.9mm。SMD調諧音叉晶體3.2x1.5毫米JTX310|Q...

JTX310|Q 0.032768-JTX310-7-20-T2-HMR-LF|32.768KHz|-40~125℃|7PF|20PPM|3215|，歐美進口晶振，32.768 kHz，可選的額外防震版本，回流焊溫度：最大260°C。n個包裝高度，最大0.9 mm。SMD調諧音叉晶體·3.2 x 1.5毫米

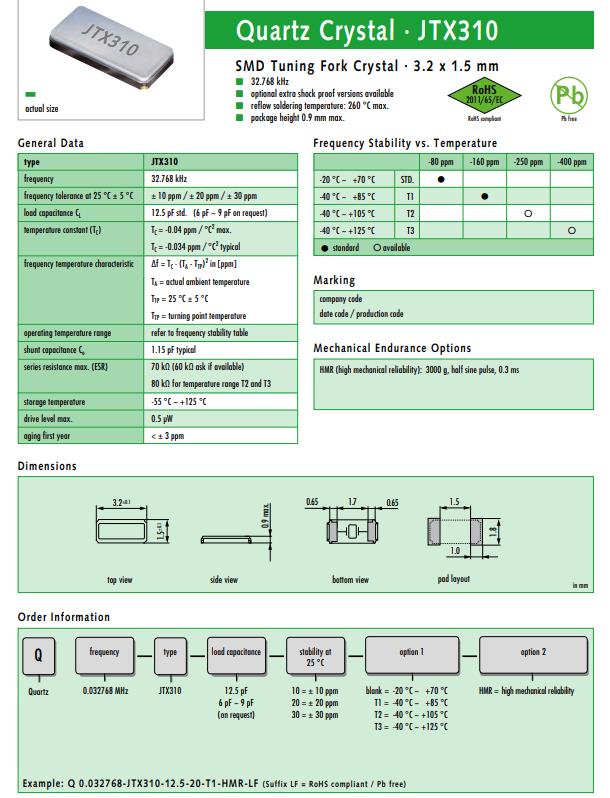

JTX310|Q 0.032768-JTX310-7-20-T2-HMR-LF|32.768KHz|-40~125℃|7PF|20PPM|3215|

type	JTX310
frequency	32.768 kHz
frequency tolerance at 25 °C ± 5 °C	± 10 ppm / ± 20 ppm / ± 30 ppm
load capacitance CL	12.5 pF std. (6 pF ~ 9 pF on request)
temperature constant (TC)	TC = -0.04 ppm / °C2 max. TC = -0.034 ppm / °C2 typical
temperature constant (TC)	TC = -0.04 ppm / °C2 max. TC = -0.034 ppm / °C2 typical
frequency temperature characteristic	Δf = TC · (TA - TTP)2 in [ppm] TA = actual ambient temperature TTP = 25 °C ± 5 °C TTP = turning point temperature
frequency temperature characteristic
operating temperature range	refer to frequency stability table
shunt capacitance Co	1.15 pF typical
series resistance max. (ESR)	70 kΩ (60 kΩ ask if available) 80 kΩ for temperature range T2 and T3
storage temperature	-55 °C ~ +125 °C
drive level max.	0.5 µW
aging first year	< ± 3 ppm

JTX310|Q 0.032768-JTX310-7-20-T2-HMR-LF|32.768KHz|-40~125℃|7PF|20PPM|3215|

JAUCH原廠編碼	型號	頻率	頻率偏差	負載電荷
Q 0.032768-JTX310-12.5-20-T1-HMR-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-9-20-T1-HMR-LF	JTX310	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-7-20-T1-HMR-LF	JTX310	32.768kHz	±20ppm	7pF
Q 0.032768-JTX310-9-20-T2-HMR-LF	JTX310	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-7-20-T2-HMR-LF	JTX310	32.768kHz	±20ppm	7pF
Q 0.032768-JTX310-9-20-T3-HMR-LF	JTX310	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-7-20-T3-HMR-LF	JTX310	32.768kHz	±20ppm	7pF
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-6-20-T1-HMR-LF	JTX310	32.768kHz	±20ppm	6pF
Q 0.032768-JTX310-6-20-T2-HMR-LF	JTX310	32.768kHz	±20ppm	6pF
Q 0.032768-JTX210-12.5-20-T1-LF	JTX210	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX210-9-20-T1-LF	JTX210	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-6-20-T3-HMR-LF	JTX310	32.768kHz	±20ppm	6pF
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX210-12.5-20-T2-LF	JTX210	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-10-T2-HMR-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX210-9-20-T2-LF	JTX210	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-12.5-10-T3-HMR-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX310-9-10-T1-HMR-LF	JTX310	32.768kHz	±10ppm	9pF
Q 0.032768-JTX310-12.5-10-T1-HMR-50K-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX310-12.5-10-T1-HMR-60K-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX310-7-10-T1-HMR-LF	JTX310	32.768kHz	±10ppm	7pF
Q 0.032768-JTX310-9-10-T2-HMR-LF	JTX310	32.768kHz	±10ppm	9pF
Q 0.032768-JTX210-12.5-20-T3-LF	JTX210	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-10-T2-HMR-70K-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX210-9-20-T3-LF	JTX210	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-7-10-T2-HMR-LF	JTX310	32.768kHz	±10ppm	7pF
Q 0.032768-JTX310-9-10-T3-HMR-LF	JTX310	32.768kHz	±10ppm	9pF
Q 0.032768-JTX310-12.5-10-T3-HMR-70K-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX310-7-10-T3-HMR-LF	JTX310	32.768kHz	±10ppm	7pF
Q 0.032768-JTX310-6-10-T1-HMR-LF	JTX310	32.768kHz	±10ppm	6pF
Q 0.032768-JTX310-6-10-T2-HMR-LF	JTX310	32.768kHz	±10ppm	6pF
Q 0.032768-JTX310-6-10-T3-HMR-LF	JTX310	32.768kHz	±10ppm	6pF
