首頁歐美晶振 Jauch晶振Q 0.032768-JTX210-9-20-T3-LF,32.768KHz,20PPM,9PF,-40~125℃,2012

Q 0.032768-JTX210-9-20-T3-LF,32.768KHz,20PPM,9PF,-40~125℃,2012

頻率：32.768KHz
尺寸：2012
應　用： Q0.032768-JTX210-9-20-T3-LF,32.768KHz,20PPM,9PF,-40~125℃,2012，歐美進口晶振，32.768kHzn回流焊溫度：最大260C。n個包裝高度，最大0.6mm。SMD調諧叉子晶體2.0x1.2毫米Q0.032768-JTX210-9-20-T3-LF,32.768KHz,20P...

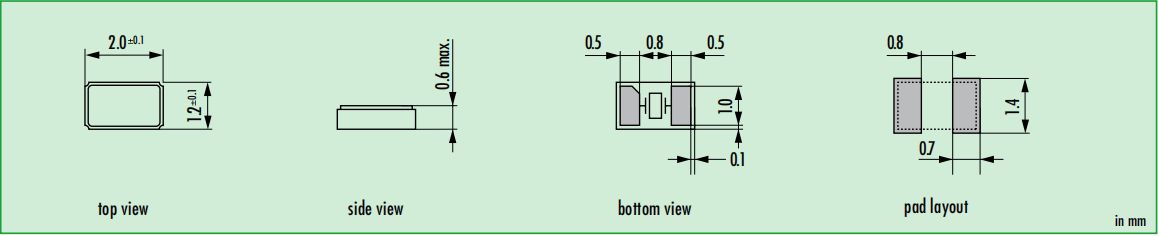

Q 0.032768-JTX210-9-20-T3-LF,32.768KHz,20PPM,9PF,-40~125℃,2012，歐美進口晶振，32.768 kHz n回流焊溫度：最大260°C。n個包裝高度，最大0.6 mm。SMD調諧叉子晶體·2.0 x 1.2毫米

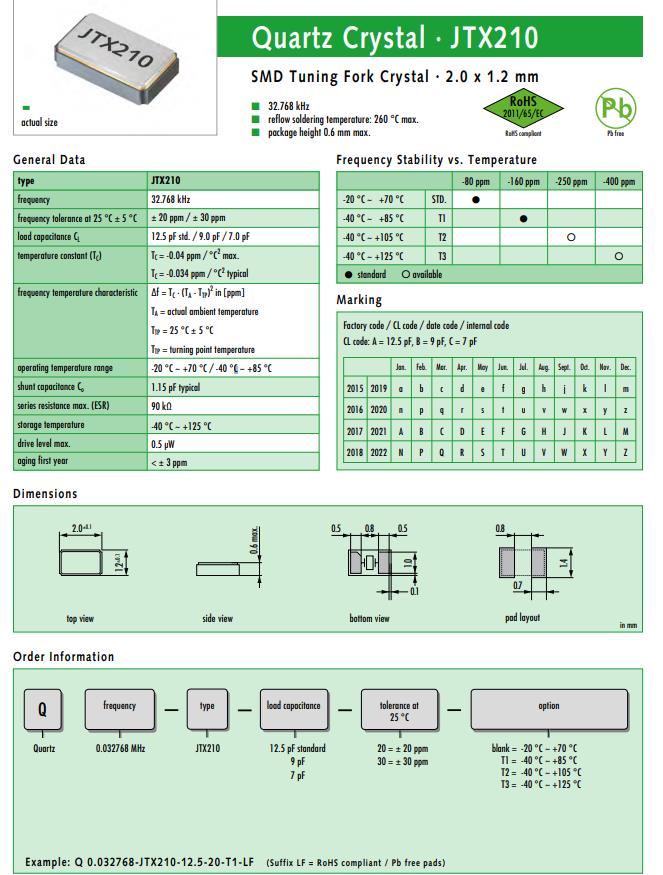

Q 0.032768-JTX210-9-20-T3-LF,32.768KHz,20PPM,9PF,-40~125℃,2012

type		JTX210
frequency		32.768 kHz
frequency tolerance at 25 °C ± 5 °C		± 20 ppm / ± 30 ppm
load capacitance CL		12.5 pF std. / 9.0 pF / 7.0 pF
temperature constant (TC)		TC = -0.04 ppm / °C2 max. TC = -0.034 ppm / °C2 typical

frequency temperature characteristic		Δf = TC · (TA - TTP)2 in [ppm] TA = actual ambient temperature TTP = 25 °C ± 5 °C TTP = turning point temperature

operating temperature range		-20 °C ~ +70 °C / -40 °C ~ +85 °C
shunt capacitance Co		1.15 pF typical
series resistance max. (ESR)		90 kΩ
storage temperature		-40 °C ~ +125 °C
drive level max.		0.5 µW
aging first year		< ± 3 ppm

Q 0.032768-JTX210-9-20-T3-LF,32.768KHz,20PPM,9PF,-40~125℃,2012

JAUCH原廠編碼	型號	頻率	頻率偏差	負載電荷
Q 0.032768-JTX310-12.5-20-T1-HMR-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-9-20-T1-HMR-LF	JTX310	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-7-20-T1-HMR-LF	JTX310	32.768kHz	±20ppm	7pF
Q 0.032768-JTX310-9-20-T2-HMR-LF	JTX310	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-7-20-T2-HMR-LF	JTX310	32.768kHz	±20ppm	7pF
Q 0.032768-JTX310-9-20-T3-HMR-LF	JTX310	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-7-20-T3-HMR-LF	JTX310	32.768kHz	±20ppm	7pF
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	JTX310	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-6-20-T1-HMR-LF	JTX310	32.768kHz	±20ppm	6pF
Q 0.032768-JTX310-6-20-T2-HMR-LF	JTX310	32.768kHz	±20ppm	6pF
Q 0.032768-JTX210-12.5-20-T1-LF	JTX210	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX210-9-20-T1-LF	JTX210	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-6-20-T3-HMR-LF	JTX310	32.768kHz	±20ppm	6pF
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX210-12.5-20-T2-LF	JTX210	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-10-T2-HMR-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX210-9-20-T2-LF	JTX210	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-12.5-10-T3-HMR-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX310-9-10-T1-HMR-LF	JTX310	32.768kHz	±10ppm	9pF
Q 0.032768-JTX310-12.5-10-T1-HMR-50K-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX310-12.5-10-T1-HMR-60K-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX310-7-10-T1-HMR-LF	JTX310	32.768kHz	±10ppm	7pF
Q 0.032768-JTX310-9-10-T2-HMR-LF	JTX310	32.768kHz	±10ppm	9pF
Q 0.032768-JTX210-12.5-20-T3-LF	JTX210	32.768kHz	±20ppm	12.5pF
Q 0.032768-JTX310-12.5-10-T2-HMR-70K-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX210-9-20-T3-LF	JTX210	32.768kHz	±20ppm	9pF
Q 0.032768-JTX310-7-10-T2-HMR-LF	JTX310	32.768kHz	±10ppm	7pF
Q 0.032768-JTX310-9-10-T3-HMR-LF	JTX310	32.768kHz	±10ppm	9pF
Q 0.032768-JTX310-12.5-10-T3-HMR-70K-LF	JTX310	32.768kHz	±10ppm	12.5pF
Q 0.032768-JTX310-7-10-T3-HMR-LF	JTX310	32.768kHz	±10ppm	7pF
Q 0.032768-JTX310-6-10-T1-HMR-LF	JTX310	32.768kHz	±10ppm	6pF
Q 0.032768-JTX310-6-10-T2-HMR-LF	JTX310	32.768kHz	±10ppm	6pF
Q 0.032768-JTX310-6-10-T3-HMR-LF	JTX310	32.768kHz	±10ppm	6pF
