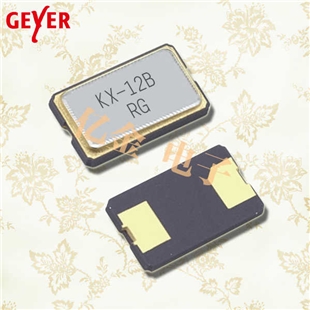

格耶德國晶振,KX-12B無源諧振器,6035mm兩腳晶振，貼片晶振本身體積小,超薄型石英晶體振蕩器,特別適用于有目前高速發展的高端電子數碼產品,因?yàn)?strong>貼片晶振本身小型化需求的市場領域,小型,薄型是對應陶瓷振蕩器(偏差大)和普通的石英晶體振蕩器(偏差小)的中間領域的一種性?xún)r(jià)比較出色的產品.產品廣泛用于筆記本電腦,無線電話,衛星導航SSD,USB,Blu-ray等用途,符合無鉛焊接的高溫回流焊曲線特性.
    格耶德國晶振,KX-12B無源諧振器,6035mm兩腳晶振，GEYER晶振作為一個可靠的，成功的合作伙伴，我們非常重視在開發階段與客戶的密切合作。這使我們能夠確保我們能夠?yàn)槟峁┠胍暮托枰摹?

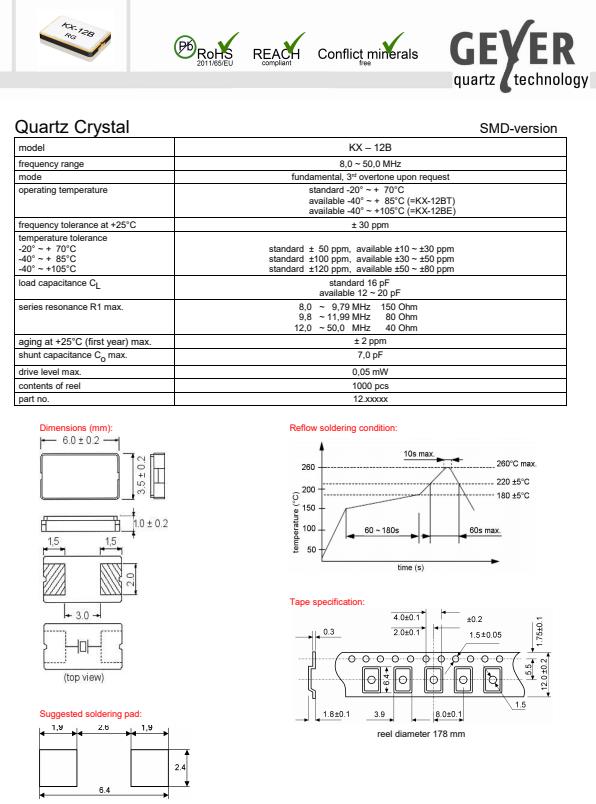

model	KX – 12B
frequency range	8,0 ~ 50,0 MHz
mode	fundamental, 3rd overtone upon request
operating temperature	standard -20° ~ + 70°C  available -40° ~ + 85°C (=KX-12BT)  available -40° ~ +105°C (=KX-12BE)
frequency tolerance at +25°C	± 30 ppm
temperature tolerance -20° ~ + 70°C -40° ~ + 85°C -40° ~ +105°C	standard ± 50 ppm, available ±10 ~ ±30 ppm  standard ±100 ppm, available ±30 ~ ±50 ppm  standard ±120 ppm, available ±50 ~ ±80 ppm
load capacitance CL	standard 16 pF available 12 ~ 20 pF
series resonance R1 max.	8,0 ~ 9,79 MHz 150 Ohm  9,8 ~ 11,99 MHz 80 Ohm  12,0 ~ 50,0 MHz 40 Ohm
aging at +25°C (first year) max.	±2 ppm
shunt capacitance Co max.	7,0 pF
drive level in mW max.	0,05 mW
contents of reel	1000 pcs.
part no.	12.xxxxx

  GEYER晶振注意事項：
