FC1BACBEI38.0-T3,2016貼片石英晶振,6G光纖通道晶振
- 頻率：38MHz
- 尺寸：2.0×1.6mm
- 應 用： FOX晶振,歐美進口晶振,C1BA無源晶振,FC1BACBEI38.0-T3晶振,2016貼片石英晶振,小體積晶振,頻率38MHz,負載10pF,頻率穩定性30ppm,工作溫度-40~125°C,耐高溫晶振,無鉛環保晶振,6G光纖通道晶振,汽車音響控制器晶振,網絡終...
-
-
FC1BACBEI38.0-T3,2016貼片石英晶振,6G光纖通道晶振,FOX晶振,歐美進口晶振,C1BA無源晶振,FC1BACBEI38.0-T3晶振,2016貼片石英晶振,小體積晶振,頻率38MHz,負載10pF,頻率穩定性30ppm,工作溫度-40~125°C,耐高溫晶振,無鉛環保晶振,6G光纖通道晶振,汽車音響控制器晶振,網絡終端晶振,GPS導航晶振.

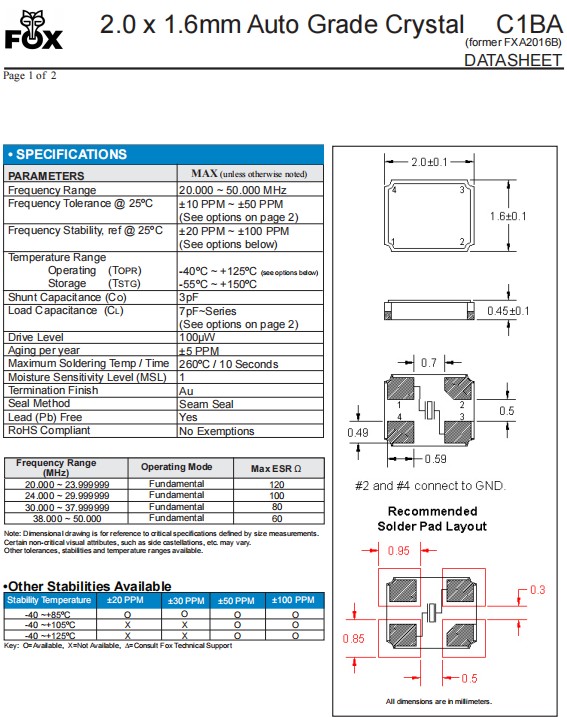

FC1BACBEI38.0-T3,2016貼片石英晶振,6G光纖通道晶振規格表
| 參數 | 數值 |
| 標準頻率 | 38MHz |
| 頻率容差 | 30ppm |
| 頻率穩定性 | 50ppm |
| 工作溫度 | −40~+125°C |
| 儲存溫度 | −55~+150°C |
| 老化 | ±5ppm |
| 負載 | 10pF |
| 并聯電容 | 3pF Max |
| 激勵功率 | 100 µW MAX |
| 濕度敏感等級(MSL) | 1 |
| 最大焊接溫度/時間 |
260ºC / 10 Seconds
|
| 無鉛 |
Yes
|
| 通過無鉛認證 |
No Exemptions
|
.jpg)

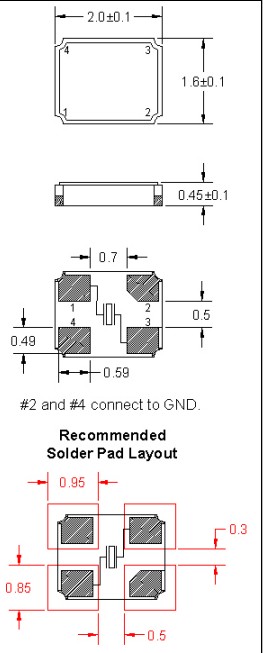

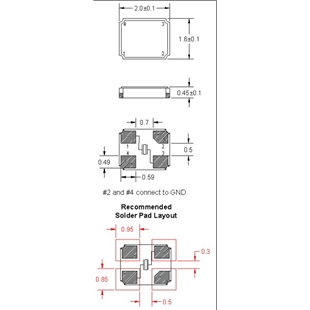

FC1BACBEI38.0-T3,2016貼片石英晶振,6G光纖通道晶振尺寸圖
| 制造商零件編號 | 供應商 | 系列 | 頻率 | 頻率穩定性 | 頻率容差 | 負載電容 | 工作溫度 |
| FC1BACBEI21.0-T3 | Fox 晶振 | C1BA | 21 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI22.0-T3 | Fox 晶振 | C1BA | 22 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI23.0-T3 | Fox 晶振 | C1BA | 23 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI24.0-T3 | Fox 晶振 | C1BA | 24 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI25.0-T3 | Fox 晶振 | C1BA | 25 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI26.0-T3 | Fox 晶振 | C1BA | 26 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI27.0-T3 | Fox 晶振 | C1BA | 27 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI28.0-T3 | Fox 晶振 | C1BA | 28 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI29.0-T3 | Fox 晶振 | C1BA | 29 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI30.0-T3 | Fox 晶振 | C1BA | 30 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI31.0-T3 | Fox 晶振 | C1BA | 31 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI32.0-T3 | Fox 晶振 | C1BA | 32 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI33.0-T3 | Fox 晶振 | C1BA | 33 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI34.0-T3 | Fox 晶振 | C1BA | 34 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI35.0-T3 | Fox 晶振 | C1BA | 35 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI36.0-T3 | Fox 晶振 | C1BA | 36 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI37.0-T3 | Fox 晶振 | C1BA | 37 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI38.0-T3 | Fox 晶振 | C1BA | 38 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI39.0-T3 | Fox 晶振 | C1BA | 39 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI40.0-T3 | Fox 晶振 | C1BA | 40 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI41.0-T3 | Fox 晶振 | C1BA | 41 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI42.0-T3 | Fox 晶振 | C1BA | 42 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI43.0-T3 | Fox 晶振 | C1BA | 43 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI44.0-T3 | Fox 晶振 | C1BA | 44 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI45.0-T3 | Fox 晶振 | C1BA | 45 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI46.0-T3 | Fox 晶振 | C1BA | 46 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI47.0-T3 | Fox 晶振 | C1BA | 47 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI48.0-T3 | Fox 晶振 | C1BA | 48 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI49.0-T3 | Fox 晶振 | C1BA | 49 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
| FC1BACBEI50.0-T3 | Fox 晶振 | C1BA | 50 MHz | ±50ppm | ±30ppm | 10pF | -40°C ~ 125°C |
.jpg)
.jpg)
