首頁歐美晶振 ECS晶振ECS-200-16-5P-TR,ECS品牌晶振,CSM-7貼片石英晶體

ECS-200-16-5P-TR,ECS品牌晶振,CSM-7貼片石英晶體

頻率：20MHz
尺寸：11.35x4.8mm
應　用： ECS-200-16-5P-TR,ECS品牌晶振,CSM-7貼片石英晶體,安防設備晶振，美國進口晶振，ECS晶振，伊西斯晶振，型號：CSM-7系列晶振，編碼為：ECS-200-16-5P-TR，頻率：20MHz，工作溫度范圍：-10℃至+70℃，頻率穩定性：50ppm...

ECS-200-16-5P-TR,ECS品牌晶振,CSM-7貼片石英晶體,安防設備晶振，美國進口晶振，ECS晶振，伊西斯晶振，型號：CSM-7系列晶振，編碼為：ECS-200-16-5P-TR，頻率：20MHz，工作溫度范圍：-10℃至+70℃，頻率穩定性：±50ppm，頻率公差：±30ppm，負載電容：16pF，小體積尺寸：11.35x4.8x3.2mm封裝，兩腳貼片晶振，石英晶振，無源晶振，石英晶體諧振器，CSM-7是SMD版本的HC-49美國鉛晶體的絕佳選擇。應用于：通訊設備，無線網絡，物聯網，安防設備，智能家居等。

ECS-200-16-5P-TR,ECS品牌晶振,CSM-7貼片石英晶體,安防設備晶振,規格表

品牌	ECS伊西斯晶振
型號	CSM-7
物料編碼	ECS-200-16-5P-TR
頻率	20MHz
頻率穩定性	±50ppm
頻率容差	±30ppm
負載電容	16pF
工作溫度	-10℃至+70℃
尺寸	11.35x4.8x3.2mm

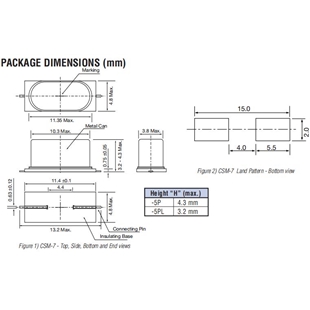

ECS-200-16-5P-TR,ECS品牌晶振,CSM-7貼片石英晶體,安防設備晶振,尺寸圖

原廠編碼	晶振廠家	型號	頻率	包裝/封裝
ECS-110.5-20-5P-TR	ECS晶振	CSM-7	11.0592MHz	HC49/US
ECS-120-18-5P-TR	ECS晶振	CSM-7	12MHz	HC49/US
ECS-160.003-18-5PTR	ECS晶振	CSM-7	16.000312MHz	HC49/US
ECS-200-20-5P-TR	ECS晶振	CSM-7	20MHz	HC49/US
ECS-160-20-5P-TR	ECS晶振	CSM-7	16MHz	HC49/US
ECS-120-S-5P-TR	ECS晶振	CSM-7	12MHz	HC49/US
ECS-35-17-5P-TR	ECS晶振	CSM-7	3.579545MHz	HC49/US
ECS-200-16-5P-TR	ECS晶振	CSM-7	20MHz	HC49/US
ECS-162.5-20-5P-TR	ECS晶振	CSM-7	16.257MHz	HC49/US
ECS-184-18-5P-TR	ECS晶振	CSM-7	18.432MHz	HC49/US
ECS-80-18-5P-TR	ECS晶振	CSM-7	8MHz	HC49/US
ECS-50-20-5P-TR	ECS晶振	CSM-7	5MHz	HC49/US
ECS-40-20-5P-TR	ECS晶振	CSM-7	4MHz	HC49/US
ECS-36-20-5P-TR	ECS晶振	CSM-7	3.6864MHz	HC49/US
ECS-480-20-5P-TR	ECS晶振	CSM-7	48MHz	HC49/US
ECS-240.001-18-5PTR	ECS晶振	CSM-7	24.00014MHz	HC49/US
ECS-61-32-5P-TR	ECS晶振	CSM-7	6.144MHz	HC49/US
ECS-180-S-5P-TR	ECS晶振	CSM-7	18MHz	HC49/US
ECS-147.4-20-5P-TR	ECS晶振	CSM-7	14.7456MHz	HC49/US
ECS-147.4-S-5P-TR	ECS晶振	CSM-7	14.7456MHz	HC49/US
ECS-51-20-5P-TR	ECS晶振	CSM-7	5.0688MHz	HC49/US
ECS-73-S-5P-TR	ECS晶振	CSM-7	7.3728MHz	HC49/US
ECS-49-S-5P-TR	ECS晶振	CSM-7	4.9152MHz	HC49/US
ECS-100-18-5P-TR	ECS晶振	CSM-7	10MHz	HC49/US
ECS-80-18-5PDN-TR	ECS晶振	CSM-7	8MHz	HC49/US
ECS-160-20-5PDN-TR	ECS晶振	CSM-7	16MHz	HC49/US
ECS-36-20-5PDN-TR	ECS晶振	CSM-7	3.6864MHz	HC49/US
ECS-40-20-5PDN-TR	ECS晶振	CSM-7	4MHz	HC49/US
ECS-120-20-5PDN-TR	ECS晶振	CSM-7	12MHz	HC49/US
ECS-240-20-5PDN-TR	進口晶振	CSM-7	24MHz	HC49/US
ECS-150-S-5P-TR	ECS晶振	CSM-7	15MHz	HC49/US
ECS-52-32-5P-TR	ECS晶振	CSM-7	5.185MHz	HC49/US
ECS-49-20-5P-TR	ECS晶振	CSM-7	4.9152MHz	HC49/US
ECS-196.6-20-5P-TR	ECS晶振	CSM-7	19.6608MHz	HC49/US
ECS-40.3-S-5P-TR	ECS晶振	CSM-7	4.032MHz	HC49/US
ECS-100-S-5P-TR	ECS晶振	CSM-7	10MHz	HC49/US
ECS-122.8-20-5P-TR	ECS晶振	CSM-7	12.288MHz	HC49/US
ECS-110.5-S-5P-TR	ECS晶振	CSM-7	11.0592MHz	HC49/US
ECS-110.5-32-5P-TR	ECS晶振	CSM-7	11.0592MHz	HC49/US
ECS-80-32-5P-TR	ECS晶振	CSM-7	8MHz	HC49/US
ECS-60-S-5P-TR	ECS晶振	CSM-7	6MHz	HC49/US
ECS-60-32-5P-TR	ECS晶振	CSM-7	6MHz	HC49/US
ECS-204.8-20-5P-TR	ECS晶振	CSM-7	20.48MHz	HC49/US
ECS-200-S-5P-TR	ECS晶振	CSM-7	20MHz	HC49/US
ECS-184-20-5P-TR	ECS晶振	CSM-7	18.432MHz	HC49/US
ECS-245.7-20-5P-TR	ECS晶振	CSM-7	24.576MHz	HC49/US
ECS-36-S-5P-TR	ECS晶振	CSM-7	3.6864MHz	HC49/US
ECS-40-S-5P-TR	ECS晶振	CSM-7	4MHz	HC49/US
ECS-92.1-20-5P-TR	ECS晶振	CSM-7	9.216MHz	HC49/US
ECS-240-20-5P-TR	ECS晶振	CSM-7	24MHz	HC49/US
ECS-92.1-S-5P-TR	ECS晶振	CSM-7	9.216MHz	HC49/US
ECS-98.3-20-5P-TR	ECS晶振	CSM-7	9.8304MHz	HC49/US
ECS-42-12-5P-TR	ECS晶振	CSM-7	4.194304MHz	HC49/US
ECS-73-20-5P-TR	ECS晶振	CSM-7	7.3728MHz	HC49/US
ECS-98.4375-CDX-0314-TR	ECS晶振	CSM-7	9.84375MHz	HC49/US
ECS-135.60-CDX-0317-TR	ECS晶振	CSM-7	13.56MHz	HC49/US
ECS-184-20-5PDN-TR	ECS晶振	CSM-7	18.432MHz	HC49/US
