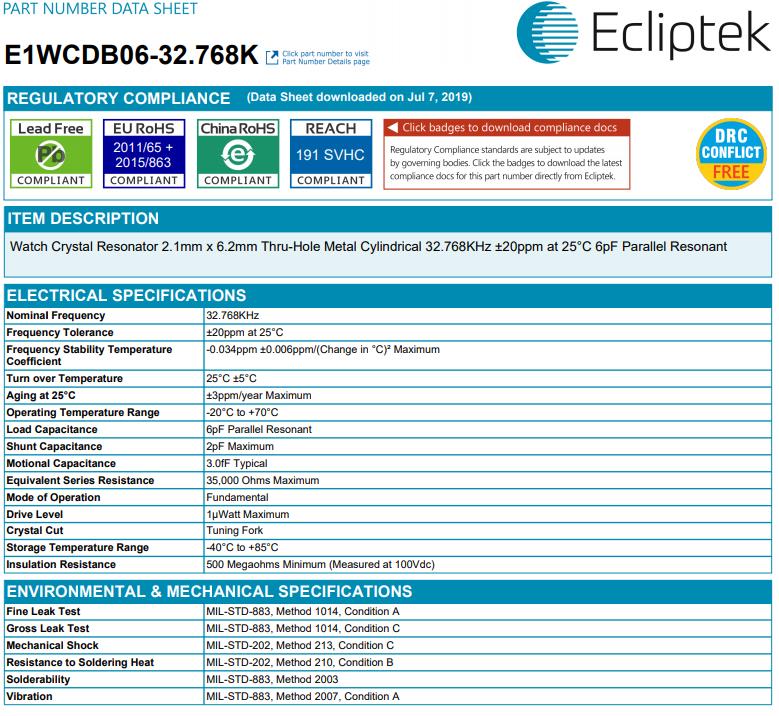

E1WCDB06-32.768K晶振  參數表

日蝕晶振規格	單位	日蝕晶振頻率范圍	石英晶振基本條件
標準頻率	f_nom	32.768KHZ	標準頻率
儲存溫度	T_stg	-40°C ～ +125°C	裸存
工作溫度	T_use	-20°C ～ +70°C	標準溫度
激勵功率	DL	200μW Max.	推薦:1μW ～ 100μW
頻率公差	f_— l	±20 × 10-6 (標準), (±10 × 10-6 ～ ±30 × 10-6 可用)	+25°C 對于超出標準的規格說明, 請聯系我們以便獲取相關的信息,0755-27876565
頻率溫度特征	f_tem	±20 × 10-6/-40°C ～ +85°C	超出標準的規格請聯系我們.
負載電容	CL	10PF	超出標準說明,請聯系我們.
串聯電阻(ESR)	R1	100μW	-40°C —  +85°C, DL = 100μW
頻率老化	f_age	±3 × 10-6 / year Max.	+25°C,第一年

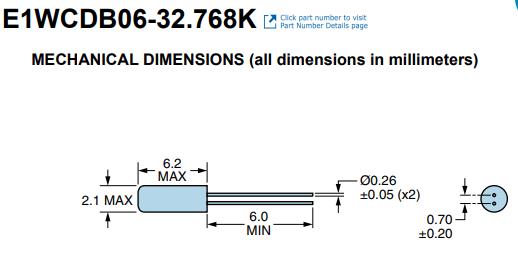

日蝕晶振E1WC,E1WCDB06-32.768K石英插件晶振   尺寸圖


日蝕晶振集團環?；纠砟睿?br />         1.作為良好的企業市民,遵循本公司的行動方針,充分關心維護地球環境.遵守國內外的有關環保法規.
        2.保護自然環境,充分關注自然生態等方面的環境保護,維持和保全生物多樣性.
        3.有效利用資源和能源,認識到資源和能源的有限性,努力進行有效利用.日蝕晶振E1WC,E1WCDB06-32.768K石英插件晶振
        4為構建循環型社會做出貢獻,致力于減少石英晶體,貼片晶振,有源晶體振蕩器材料的廢棄物及廢棄物的再利用核再生循環,努力構建循環型社會.
        5.推進環保型業務,充分發揮綜合實力,推進環保型業務,為減輕社會的環境負荷做出貢獻.
        6.建立環境管理系統,充分運用環境管理系統,設定環境目的和目標,定期修正,不斷改善,努力預防環境污染.
        日蝕晶振集團將建立可行的技術及經濟性環境目標,并確保其環境保護活動的質量.
        集團公司將關注所有環境適用的法律、法規和協議的遵守情況.另外為更有效的進行環境保護,將建立自己的特有的環境標準.
        集團將在各領域內的商務運作中實施持續改進,包括能源資源的保持,回收再利用以及減少廢棄物等.

Part Number	Cut/Mode	Package Description	Frequency Stability	Operating Temperature Range	Aging
E1WCDA06-32.768K	Fundamental	Watch Crystal 2.0mm x 6.0mm	±20ppm	-10°C to +60°C	±3ppm
E1WCDA12-32.768K	Fundamental	Watch Crystal 2.0mm x 6.0mm	±20ppm	-10°C to +60°C	±3ppm
E1WCDB06-32.768K	Fundamental	Watch Crystal 2.0mm x 6.0mm	±20ppm	-20°C to +70°C	±3ppm
E1WCDB12-32.768K	Fundamental	Watch Crystal 2.0mm x 6.0mm	±20ppm	-20°C to +70°C	±3ppm
E1WSDA06-32.768K	Tuning Fork Fundamental	SMD Watch Crystal 3.7mm x 7.9mm	±20ppm	-40°C to +85°C	±3ppm
E1WSDA12-32.768K	Fundamental	SMD Watch Crystal 3.7mm x 7.9mm	±20ppm	-40°C to +85°C	±3ppm
E3WSDC12-32.768K	Tuning Fork Fundamental	SMD Watch Crystal 1.2mm x 2.0mm	±20ppm	-40°C to +85°C	±3ppm
E4WSDC09-32.768K	Tuning Fork Fundamental	SMD Watch Crystal 1.0mm x 1.6mm	±20ppm	-40°C to +85°C	±3ppm
E4WSDC12-32.768K	Tuning Fork Fundamental	SMD Watch Crystal 1.0mm x 1.6mm	±20ppm	-40°C to +85°C	±3ppm
E8WSBC12-32.768K	Tuning Fork Fundamental	SMD Watch Crystal 1.5mm x 3.2mm	±10ppm	-40°C to +85°C	±3ppm
E8WSDC07-32.768K	Tuning Fork Fundamental	SMD晶振 Watch Crystal 1.5mm x 3.2mm	±20ppm	-40°C to +85°C	±3ppm
E8WSDC09-32.768K	Fundamental	SMD Watch Crystal 1.5mm x 3.2mm	±20ppm	-40°C to +85°C	±3ppm
E8WSDC12-32.768K	Fundamental	SMD Watch Crystal 1.5mm x 3.2mm	±20ppm	-40°C to +85°C	±3ppm
Part Number	Cut/Mode		Frequency Stability	Operating Temperature Range	Aging
EUAA18-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	0°C to +70°C	±5ppm
EUAA18-6.000M-L	AT-Cut Fundamental	HC-49/U	±100ppm	0°C to +70°C	±5ppm
EUAA20-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	0°C to +70°C	±5ppm
EUAA25-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	0°C to +70°C	±5ppm
EUAAS-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	0°C to +70°C	±5ppm
EUAAS-6.000M-L	AT-Cut Fundamental	HC-49/U	±100ppm	0°C to +70°C	±5ppm
EUBA20-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	-20°C to +70°C	±5ppm
EUBA25-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	-20°C to +70°C	±5ppm
EUBAS-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	-20°C to +70°C	±5ppm
EUCA18-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	-40°C to +85°C	±5ppm
EUCA25-6.000M	AT-Cut Fundamental	HC-49/U	±100ppm	-40°C to +85°C	±5ppm
