首頁歐美晶振CCSO-914X-1000.000,CCSO-914X型號貼片晶振,工業級晶振

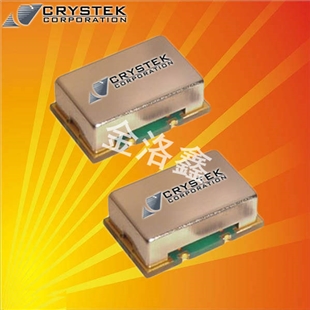

CCSO-914X-1000.000,CCSO-914X型號貼片晶振,工業級晶振

頻率：1GHz
尺寸：14.20mmx9.14mm
應　用： CCSO-914X-1000.000,CCSO-914X型號貼片晶振,能抵御工業設備運行中的機械振動與沖擊,具備優異的抗潮濕,抗粉塵能力,且通過工業級電磁兼容測試,在強電磁干擾的工業車間環境中仍能穩定輸出時鐘信號,大幅降低設備故障率.

CCSO-914X-1000.000,CCSO-914X型號貼片晶振,工業級晶振

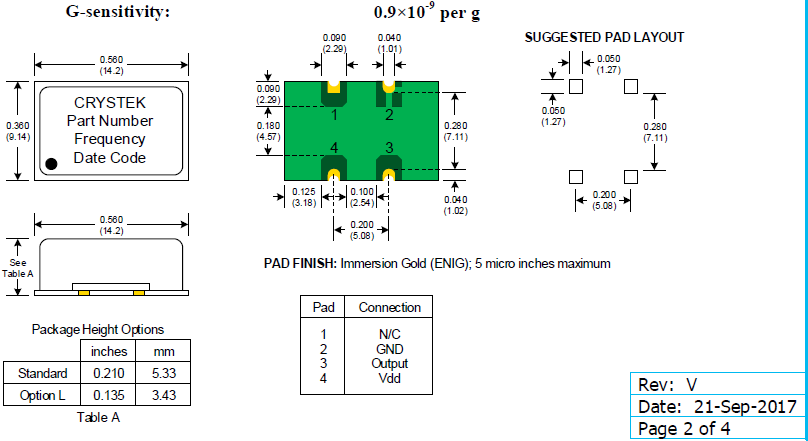

采用CCSO-914X系列標準貼片封裝(典型尺寸約9.0mm×14.0mm×3.5mm,適配工業板卡常規布局),相比傳統工業級晶振,PCB板空間占用減少約20%,且支持自動化SMT貼片工藝,可與工業控制板上的MCU,FPGA,通信芯片等元器件同步完成高速組裝,提升生產效率的同時,避免人工焊接帶來的誤差,適配工業設備規模化量產需求.封裝材質選用耐高溫晶振,抗腐蝕的陶瓷與金屬復合結構,能承受工業環境中的溫度波動與化學腐蝕,保障晶振在工業設備5-10年的服役周期內持續可靠工作,減少后期維護成本.

CCSO-914X-1000.000,CCSO-914X型號貼片晶振,工業級晶振

原廠型號 Originalmodel：	CCSO-914X-1000.000	品牌brand：	Crystek晶振
Manufacturer品牌	Crystek石英晶體振蕩器	OperatingTemperature溫度	-40°C~85°C
Series型號	CCSO-914X	Current-Supply(Max)	-
Type類型	SO(SAW)	PackageHeight高度	5.33mm
Frequency頻率	1GHz	Termination 腳位	4-pad
輸出方式 Output：	SineWave	PackageType 封裝類型	4-SMD
Voltage-Supply電壓	5V	Packaging 包裝	TapeandReel
FrequencyStability頻率穩定度	±100ppm	安裝方式 Installation：	Surfacemount
Size/Dimension尺寸	14.20mmx9.14mm	最小包裝數MPQ：	-

CCSO-914X-1000.000,CCSO-914X型號貼片晶振,工業級晶振

CCSO-914X-1000.000,CCSO-914X型號貼片晶振,工業級晶振

PPRO30-40.000	Crystek晶振	PPRO	TCXO	40MHz	ClippedSineWave	3V	±2.5ppm
PPRO30-10.000	Crystek晶振	PPRO	TCXO	10MHz	ClippedSineWave	3V	±2.5ppm
CPRO33-30.720	Crystek晶振	CPRO	XO	30.72MHz	HCMOS	3.3V	±25ppm
RFPRO33-500.000	Crystek晶振	RFPRO	SO(SAW)	500MHz	SineWave	3.3V	-150ppm,+100ppm
CRBSCS-01-80.000	Crystek晶振	CRBSCS,RedBox	RFClockSource	80MHz	SineWave	5.5V	±25ppm
CRBSCS-01-50.000	Crystek晶振	CRBSCS,RedBox	RFClockSource	50MHz	SineWave	5.5V	±25ppm
CRBSCS-01-125.000	Crystek晶振	CRBSCS,RedBox	RFClockSource	125MHz	SineWave	5.5V	±25ppm
CRBSCS-01-250.000	Crystek晶振	CRBSCS,RedBox	RFClockSource	250MHz	SineWave	5.5V	±150ppm
CPROBS5-0010	Crystek晶振	PRO	XO	10MHz	SineWave	5V	±25ppm
CVHD-950-54.000	Crystek晶振	CVHD-950	VCXO	54MHz	CMOS	3.3V	-
CVHD-952-148.500	Crystek晶振	CVHD-952	VCXO	148.5MHz	HCMOS	3.3V	-
CCO-083-100.000	Crystek晶振	CCO	XO	100MHz	SineWave	3.3V	±25ppm
CVHD-952-153.600	Crystek晶振	CVHD-952	VCXO	153.6MHz	HCMOS	3.3V	-
PPRO30-26.000	Crystek晶振	PPRO	TCXO	26MHz	ClippedSineWave	3V	±2.5ppm
PPRO30-13.000	Crystek晶振	PPRO	TCXO	13MHz	ClippedSineWave	3V	±2.5ppm
CCSO-914X-245.760	Crystek晶振	CCSO	SO(SAW)	245.76MHz	SineWave	5V	±150ppm
C3290-1.544	Crystek晶振	C3290	XO	1.544MHz	HCMOS,TTL	5V	±100ppm
C3290-1.843200	Crystek晶振	C3290	XO	1.8432MHz	HCMOS,TTL	5V	±100ppm
C3290-10.000	Crystek晶振	C3290	XO	10MHz	HCMOS,TTL	5V	±100ppm
C3290-12.000	Crystek晶振	C3290	XO	12MHz	HCMOS,TTL	5V	±100ppm
C3290-12.288	Crystek晶振	C3290	XO	12.288MHz	HCMOS,TTL	5V	±100ppm
C3290-12.352	Crystek晶振	C3290	XO	12.352MHz	HCMOS,TTL	5V	±100ppm
C3290-14.318180	Crystek晶振	C3290	XO	14.31818MHz	HCMOS,TTL	5V	±100ppm
C3290-15.360	Crystek晶振	C3290	XO	15.36MHz	HCMOS,TTL	5V	±100ppm
C3290-16.000	Crystek晶振	C3290	XO	16MHz	HCMOS,TTL	5V	±100ppm
C3290-16.384	Crystek晶振	C3290	XO	16.384MHz	HCMOS,TTL	5V	±100ppm
C3290-18.432	Crystek晶振	C3290	XO	18.432MHz	HCMOS,TTL	5V	±100ppm
C3290-19.440	Crystek晶振	C3290	XO	19.44MHz	HCMOS,TTL	5V	±100ppm
C3290-2.048	Crystek晶振	C3290	XO	2.048MHz	HCMOS,TTL	5V	±100ppm
C3290-20.000	Crystek晶振	C3290	XO	20MHz	HCMOS,TTL	5V	±100ppm
C3290-20.480	Crystek晶振	C3290	XO	20.48MHz	HCMOS,TTL	5V	±100ppm
C3290-24.000	Crystek晶振	C3290	XO	24MHz	HCMOS,TTL	5V	±100ppm
C3290-24.704	Crystek晶振	C3290	XO	24.704MHz	HCMOS,TTL	5V	±100ppm
C3290-25.000	Crystek晶振	C3290	XO	25MHz	HCMOS,TTL	5V	±100ppm
C3290-3.686400	Crystek晶振	C3290	XO	3.6864MHz	HCMOS,TTL	5V	±100ppm
C3290-30.000	Crystek晶振	C3290	XO	30MHz	HCMOS,TTL	5V	±100ppm
C3290-32.000	Crystek晶振	C3290	XO	32MHz	HCMOS,TTL	5V	±100ppm
C3290-32.768	Crystek晶振	C3290	XO	32.768MHz	HCMOS,TTL	5V	±100ppm
C3290-33.000	Crystek晶振	C3290	XO	33MHz	HCMOS,TTL	5V	±100ppm
C3290-33.333	Crystek晶振	C3290	XO	33.333MHz	HCMOS,TTL	5V	±100ppm
C3290-35.000	Crystek晶振	C3290	XO	35MHz	HCMOS,TTL	5V	±100ppm
C3290-4.000	Crystek晶振	C3290	XO	4MHz	HCMOS,TTL	5V	±100ppm
C3290-40.000	Crystek晶振	C3290	XO	40MHz	HCMOS,TTL	5V	±100ppm
C3290-44.736	Crystek晶振	C3290	XO	44.736MHz	HCMOS,TTL	5V	±100ppm
C3290-45.000	Crystek晶振	C3290	XO	45MHz	HCMOS,TTL	5V	±100ppm
C3290-49.152	Crystek晶振	C3290	XO	49.152MHz	HCMOS,TTL	5V	±100ppm
C3290-50.000	Crystek晶振	C3290	XO	50MHz	HCMOS,TTL	5V	±100ppm
C3290-51.840	Crystek晶振	C3290	XO	51.84MHz	HCMOS,TTL	5V	±100ppm
C3290-6.176	Crystek晶振	C3290	XO	6.176MHz	HCMOS,TTL	5V	±100ppm
C3290-7.372800	Crystek晶振	C3290	XO	7.3728MHz	HCMOS,TTL	5V	±100ppm
C3290-8.000	Crystek晶振	C3290	XO	8MHz	HCMOS,TTL	5V	±100ppm
C3290-60.000	Crystek晶振	C3290	XO	60MHz	HCMOS,TTL	5V	±100ppm
C3290-64.000	Crystek晶振	C3290	XO	64MHz	HCMOS,TTL	5V	±100ppm
C3290-66.666600	Crystek晶振	C3290	XO	66.6666MHz	HCMOS,TTL	5V	±100ppm
C3390-1.544	Crystek晶振	C33	XO	1.544MHz	HCMOS	3.3V	±100ppm
C3390-1.843200	Crystek晶振	C33	XO	1.8432MHz	HCMOS	3.3V	±100ppm
C3390-10.000	Crystek晶振	C33	XO	10MHz	HCMOS	3.3V	±100ppm
C3390-12.000	Crystek晶振	C33	XO	12MHz	HCMOS	3.3V	±100ppm
C3390-12.288	Crystek晶振	C33	XO	12.288MHz	HCMOS	3.3V	±100ppm
C3390-12.352	Crystek晶振	C33	XO	12.352MHz	HCMOS	3.3V	±100ppm
