CCPD-023貼片時鐘振蕩器,瑞斯克晶振,CCPD-023X-25‐150.000晶振，小型SMD晶振,有源晶振,從最初超大體積到現在的7050mm,6035mm,5032mm,3225mm,2520mm體積,有著翻天覆地的改變,體積的變小也使產品帶來了更高的穩定性能,接縫密封石英晶體振蕩器,精度高,覆蓋頻率范圍寬的特點,SMD高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍:1.8V~5V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本W(wǎng)LAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.
    Crystek晶振自1958成立以來，crystek經營兩個部門專用頻率控制,Crystek晶振是目前生產石英晶體振蕩器方面位于全球領先地位，專業生產各種石英晶振，有源晶振，壓控晶振，溫補晶振，壓控溫補晶振等，占市場上的石英晶體振蕩器總額的大多數。為未來的科技做出了巨大的貢獻。
    CCPD-023貼片時鐘振蕩器,瑞斯克晶振,CCPD-023X-25‐150.000晶振，Crystek晶振集團與各部門建立有效的合作體系,為客戶提供快速高質量的產品和服務,并與客戶一起發展.為了向客戶提供頂級的石英晶體,貼片晶振,有源晶振,壓控晶體振蕩器等產品,確保了石英晶振,貼片晶振,無源晶體振蕩器等產品的質量控制過程,通過實施基礎設施,通過各種商業地點的計算機網絡,以及質量控制系統(ISO 9001)認證,實現了完美的通信領域產品.

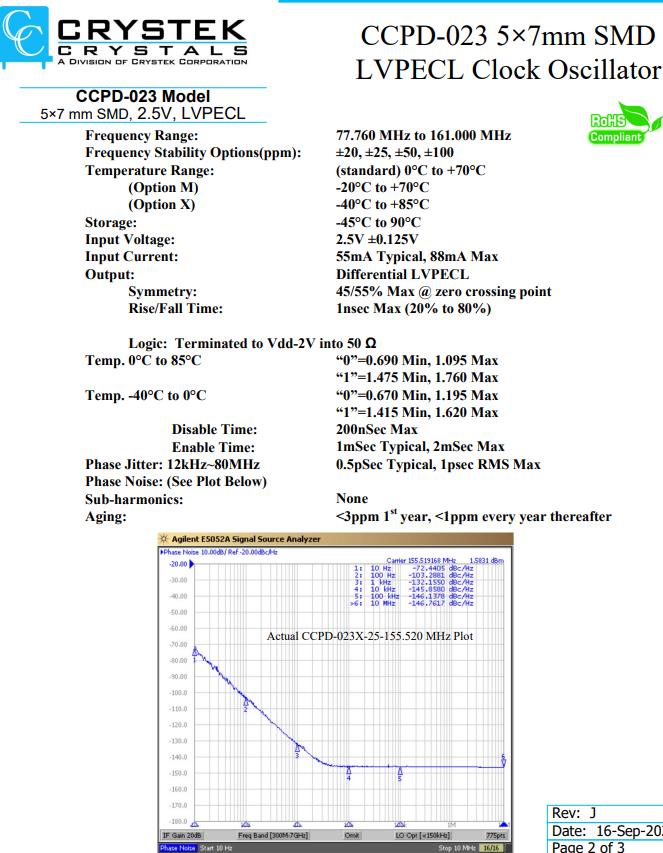

Frequency Range:	7.760 MHz to 161.000 MHz
Frequency Stability Options(ppm):	±20, ±25, ±50, ±100
Temperature Range:            (Option M)            (Option X)	(standard) 0°C to +70°C -20°C to +70°C -40°C to +85°C
Storage:	-45°C to 90°C
Input Voltage:	2.5V ±0.125V
Input Current:	55mA Typical, 88mA Max
Output:         Symmetry:         Rise/Fall Time:	Differential LVPECL 45/55% Max @ zero crossing point 1nsec Max (20% to 80%)
Logic: Terminated to Vdd-2V into 50 Ω
Temp. 0°C to 85°C	“0”=0.690 Min, 1.095 Max “1”=1.475 Min, 1.760 Max
Temp. -40°C to 0°C	“0”=0.670 Min, 1.195 Max “1”=1.415 Min, 1.620 Max
Disable Time: Enable Time: Phase Jitter: 12kHz~80MH	200nSec Max 1mSec Typical, 2mSec Max 0.5pSec Typical, 1psec RMS Max
Phase Noise: (See Plot Below)
Sub-harmonics:	None
Aging:	<3ppm 1st year, <1ppm every year thereafter

   Crystek晶振在使用晶振時應注意以下事項:
