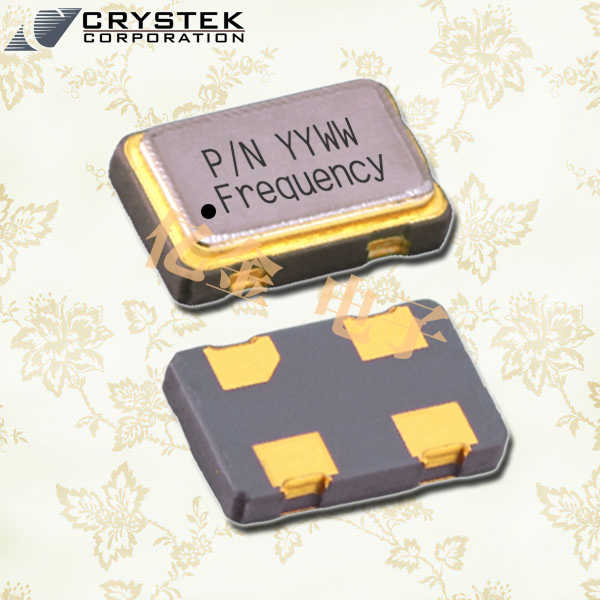

瑞斯克歐美晶體,C39xx系列石英振蕩器,CM3991-24.000MHz晶振，小型SMD有源晶振,從最初超大體積到現在的7050mm,6035mm,5032mm,3225mm,2520mm體積,有著翻天覆地的改變,體積的變小也使產品帶來了更高的穩定性能,接縫密封石英晶體振蕩器,精度高,覆蓋頻率范圍寬的特點,SMD高速自動安裝和高溫回流焊設計,Optionable待機輸出三態輸出功能,電源電壓范圍:1.8V~5V,高穩定性,低抖動,低功耗,主要應用領域:無線通訊,高端智能手機,平板筆記本W(wǎng)LAN,藍牙,數碼相機,DSL和其他IT產品的晶振應用,三態功能,PC和LCDM等高端數碼領域,符合RoHS/無鉛.
    Crystek晶振自1958成立以來，crystek經營兩個部門專用頻率控制,Crystek晶振是目前生產石英晶體振蕩器方面位于全球領先地位，專業生產各種石英晶振，有源晶振，壓控晶振，溫補晶振，壓控溫補晶振等，占市場上的石英晶體振蕩器總額的大多數。為未來的科技做出了巨大的貢獻。
    瑞斯克歐美晶體,C39xx系列石英振蕩器,CM3991-24.000MHz晶振，Crystek晶振集團與各部門建立有效的合作體系,為客戶提供快速高質量的產品和服務,并與客戶一起發展.為了向客戶提供頂級的石英晶體,貼片晶振,有源晶振,壓控晶體振蕩器等產品,確保了石英晶振,貼片晶振,無源晶體振蕩器等產品的質量控制過程,通過實施基礎設施,通過各種商業地點的計算機網絡,以及質量控制系統(ISO 9001)認證,實現了完美的通信領域產品.

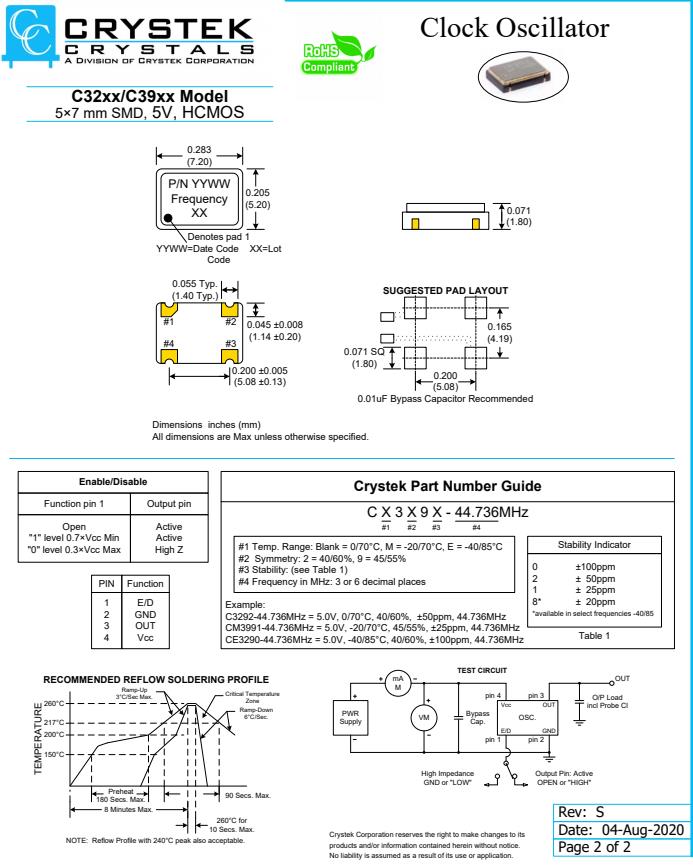

Frequency Range:                      1.544 MHz to 100.000 MHz

Frequency Stability Options:          ±20*, ±25, ±50, ±100 (ppm)

Temperature Range: (standard)    0°C to +70°C                       (Option “M”)       -20°C to +70°C                       (Option “E”*)       -40°C to +85°C

Storage Temperature:     -45°C to 90°C

Input Voltage:                5.0V ±0.5V

Input Current:                60mA Max

Standby Current:            10uA Max

Output:                        HCMOS

Symmetry:      (Standard “2”)         40/60% Max @ 50% Vdd         (Option “9”)         45/55% Max @ 50% Vdd      Rise/Fall Time:         6ns Max @ 20% to 80% Vdd                 Logic:         "0" = 10% Vdd Max                                 "1" = 90% Vdd Min       Disable Time:         200ns Max     Start-up Time:          10ms Max                 Load:          30pF Max

Jitter RMS: 12kHz~20MHz   0.5ps Typical, 1ps Max

Sub-harmonics:              None

Aging:                            <3ppm 1st year, 1ppm every year thereafter

   Crystek晶振在使用晶振時應注意以下事項:
