更多>>ABM11-48.000MHZ-D7X-T|48MHz|15PPM|10PF|-40~85℃
- 頻率：48MHz
- 尺寸：2016
- 應 用： ABM2-24.576MHZ-D4Y-T|24.576MHz|18PF|30PPM|-40~85℃，歐美艾伯康晶振公司,2.0x1.6x0.59mm超微型包裝。適用于符合RoHS標準的回流閥。密封陶瓷封裝，金屬蓋，保證高精度和可靠性。移動電話，尋呼機。通訊和測試設備。...
-
-
.jpg)

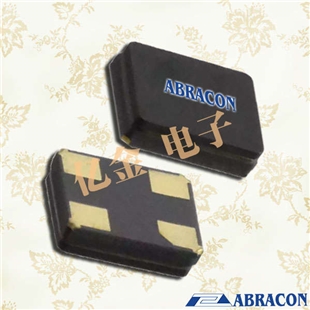

ABM2-24.576MHZ-D4Y-T|24.576MHz|18PF|30PPM|-40~85℃，歐美艾伯康晶振公司,2.0 x 1.6 x 0.59mm超微型包裝。•適用于符合RoHS標準的回流閥。•密封陶瓷封裝，金屬蓋，保證高精度和可靠性。移動電話，尋呼機。通訊和測試設備。高密度應用程序PCMCIA和無線應用程序。
ABM2-24.576MHZ-D4Y-T|24.576MHz|18PF|30PPM|-40~85℃
| 頻率 | 16.000 | 50.000 | MHz | |||||||||
| 工作模式 | Fundamental | |||||||||||
| 工作溫度 | - 10 | +60 | ºC | See options | ||||||||
| 儲存溫度 | --40 | +85 | ºC | |||||||||
| 頻率公差 @+25°C | --30 | +30 | ppm | See options | ||||||||
| 工作溫度下的頻率穩定性 ( ref. to +25°C) | --50 | +50 | ppm | See options | ||||||||
| 等效串聯電阻 (R1) | 150 | ? | 16.000~17.999MHz | |||||||||
| 120 | 18.000~20.999MHz | |||||||||||
| 100 | 21.000~29.999 MHz | |||||||||||
| 80 | 30.000~37.999 MHz | |||||||||||
| 60 | 38.000~50.000 MHz | |||||||||||
| 并聯電容 (C0) | 7.0 | pF | ||||||||||
| 負載電容(CL) | 10 | pF |
Standard (See options if other than STD) |
|||||||||
| 驅動電平 | 10 | 100 | µW | |||||||||
| 老化 | --5 | +5 | ppm |
@25°C±3°C First year |
||||||||
| 絕緣電阻 | 500 | M? | @ 100Vdc ± 15V | |||||||||
.jpg)
ABM2-24.576MHZ-D4Y-T|24.576MHz|18PF|30PPM|-40~85℃
| ABRACON編號 | 制造商 | 型號 | 頻率 | 頻率容差 | 負載電容 |
| ABM11-143-27.120MHZ-T3 | Abracon LLC | ABM11 | 27.12 MHz | ±10ppm | 8pF |
| ABM11-140-26.000MHZ-T3 | Abracon LLC | ABM11 | 26 MHz | ±10ppm | 8pF |
| ABM11-16.000MHZ-D2X-T3 | Abracon LLC | ABM11 | 16 MHz | ±20ppm | 10pF |
| ABM11-30.000MHZ-B1U-T | Abracon LLC | ABM11 | 30 MHz | ±10ppm | 10pF |
| ABM11-20.000MHZ-D2X-T3 | Abracon LLC | ABM11 | 20 MHz | ±20ppm | 10pF |
| ABM11-25.000MHZ-D7X-T | Abracon LLC | ABM11 | 25 MHz | ±15ppm | 10pF |
| ABM11-142-27.120MHZ-T3 | Abracon LLC | ABM11 | 27.12 MHz | ±10ppm | 8pF |
| ABM11-38.400MHZ-D2X-T3 | Abracon LLC | ABM11 | 38.4 MHz | ±20ppm | 10pF |
| ABM11-25.000MHZ-D2X-T3 | Abracon LLC | ABM11 | 25 MHz | ±20ppm | 10pF |
| ABM11-24.000MHZ-D2X-T3 | Abracon LLC | ABM11 | 24 MHz | ±20ppm | 10pF |
| ABM11-48.000MHZ-D2X-T3 | Abracon LLC | ABM11 | 48 MHz | ±20ppm | 10pF |
| ABM11-30.000MHZ-D2X-T3 | Abracon LLC | ABM11 | 30 MHz | ±20ppm | 10pF |
| ABM11-32.000MHZ-D2X-T3 | Abracon LLC | ABM11 | 32 MHz | ±20ppm | 10pF |
| ABM11-28.63636MHZ-D2X-T3 | Abracon LLC | ABM11 | 28.63636 MHz | ±20ppm | 10pF |
| ABM11-27.000MHZ-D2X-T3 | Abracon LLC | ABM11 | 27 MHz | ±20ppm | 10pF |
| ABM11-32.000MHZ-B7G-T | Abracon LLC | ABM11 | 32 MHz | ±15ppm | 10pF |
| ABM11-25.000MHZ-B7G-T | Abracon LLC | ABM11 | 25 MHz | ±15ppm | 10pF |
| ABM11-26.000MHZ-B7G-T | Abracon LLC | ABM11 | 26 MHz | ±15ppm | 10pF |
| ABM11-24.000MHZ-B7G-T | Abracon LLC | ABM11 | 24 MHz | ±15ppm | 10pF |
| ABM11-40.000MHZ-B7G-T | Abracon LLC | ABM11 | 40 MHz | ±15ppm | 10pF |
| ABM11-26.000MHZ-B1U-T | Abracon LLC | ABM11 | 26 MHz | ±10ppm | 10pF |
| ABM11-16.000MHZ-12-N1G-T | Abracon LLC | ABM11 | 16 MHz | ±10ppm | 12pF |
| ABM11-27.000MHZ-B1U-T | Abracon LLC | ABM11 | 27 MHz | ±10ppm | 10pF |
| ABM11-27.000MHZ-D7X-T | Abracon LLC | ABM11 | 27 MHz | ±15ppm | 10pF |
| ABM11-48.000MHZ-D7X-T | Abracon LLC | ABM11 | 48 MHz | ±15ppm | 10pF |
| ABM11-24.000MHZ-12-B1U-T | Abracon LLC | ABM11 | 24 MHz | ±10ppm | 12pF |
| ABM11-16.000MHZ-9-B1U-T | Abracon LLC | ABM11 | 16 MHz | ±10ppm | 9pF |
| ABM11-27.000MHZ-B7G-T | Abracon LLC | ABM11 | 27 MHz | ±15ppm | 10pF |
| ABM11-20.000MHZ-B7G-T | Abracon LLC | ABM11 | 20 MHz | ±15ppm | 10pF |
| ABM11-28.63636MHZ-B7G-T | Abracon LLC | ABM11 | 28.63636 MHz | ±15ppm | 10pF |
| ABM11-32.000MHZ-B1U-T | Abracon LLC | ABM11 | 32 MHz | ±10ppm | 10pF |
| ABM11-38.400MHZ-B7G-T | Abracon LLC | ABM11 | 38.4 MHz | ±15ppm | 10pF |
| ABM11-38.400MHZ-B1U-T | Abracon LLC | ABM11 | 38.4 MHz | ±10ppm | 10pF |
| ABM11-32.000MHZ-8-7G-T | Abracon LLC | ABM11 | 32 MHz | ±15ppm | 8pF |
| ABM11-27.120MHZ-B1U-T | Abracon LLC | ABM11 | 27.12 MHz | ±10ppm | 10pF |
| ABM11-24.000MHZ-12-N1G-T | Abracon LLC | ABM11 | 24 MHz | ±10ppm | 12pF |
| ABM11-40.000MHZ-B1U-T3 | Abracon LLC | ABM11 | 40 MHz | ±10ppm | 10pF |
| ABM11-24.000MHZ-B1U-T | Abracon LLC | ABM11 | 24 MHz | ±10ppm | 10pF |
| ABM11-25.000MHZ-18-B2Y-T | Abracon LLC | ABM11 | 25 MHz | ±20ppm | 18pF |
.jpg)
